What makes Trembucker spacing different from standard pickup spacing?

Trembucker spacing is designed for wide-spaced tremolo bridge saddles (like those on Fender Jaguars and Jazzmasters), ensuring proper pole piece alignment under each string. Standard-spaced pickups in offset guitar designs can produce tonal imbalance and magnetic field inconsistencies; Trembucker spacing eliminates these problems.

Is this pickup suitable for blues and jazz?

No. The TB-6 is optimized for metal, hard rock, and modern rock with high output and aggressive voicing. Its 16.6 kΩ resistance and ceramic magnet deliver substantial gain better suited to heavy, distorted applications than the cleaner, more nuanced tones required in blues and jazz.

What switching options does the four-conductor wiring support?

Four-conductor wiring unlocks coil-splitting, phase-switching, and series/parallel switching. These options give you tonal flexibility beyond standard single-coil operation, allowing you to dial in different characters during tracking or live performance.

Will this pickup fit my tremolo guitar?

Yes, if your guitar has wide-spaced tremolo saddles like a Fender Jaguar or Jazzmaster. Trembucker spacing is designed for these offset guitar designs; standard-spaced guitars require standard-spaced pickups.

What does the gold cover do?

The gold-plated cover is primarily cosmetic, giving the pickup a distinctive appearance. It does not affect the magnetic or tonal properties of the pickup.

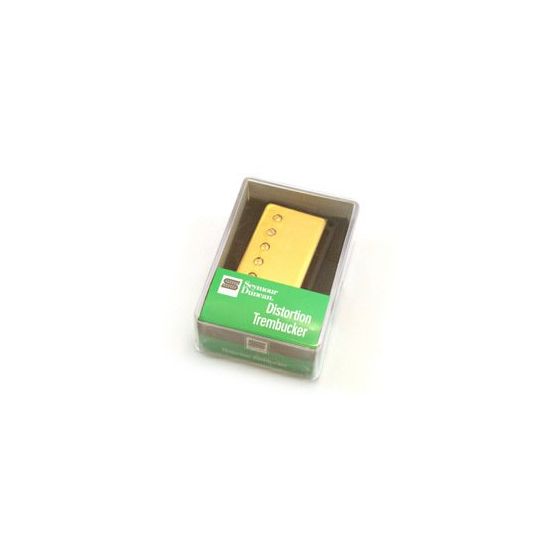

Seymour Duncan TB-6 Trembucker Duncan Distortion Pickup Gold Cover

The TB-6 Trembucker captures aggressive, articulate high-gain tones with the wider pole piece spacing designed specifically for tremolo-equipped guitars. This ceramic-magnet bridge pickup combines clarity and sustain in thick, modern distortion voices while maintaining tight low-end definition and controlled upper midrange aggression. Essential for recording sessions demanding serious output and definition without sacrificing note separation in dense chord work.

Tonal Character & Recording Performance

A 16.6 kΩ DC resistance with ceramic bar magnet generates substantial output suitable for tracking modern rock, metal, and high-gain material. The 5.5 kHz resonant peak and 5/8/9 EQ voicing (Bass/Mid/Treble) emphasize articulation and presence while controlling mud, ensuring palm-muted riffs cut through the mix and lead lines sit with definition in the stereo field.

Studio Flexibility & Tracking Options

The four-conductor wiring unlocks coil-splitting, phase-switching, and series/parallel switching options for tonal flexibility across multiple takes and mix approaches without re-tracking. Trembucker spacing ensures proper pole piece alignment with wide-spaced tremolo bridge saddles, eliminating tonal imbalance and magnetic field inconsistencies common with standard-spaced pickups in offset guitar designs—critical for consistent signal capture across sessions.

Key Features

Bridge position, Trembucker-spaced design for wide tremolo bridge compatibility
Ceramic bar magnet for aggressive, defined output
16.6 kΩ DC resistance in bridge configuration
5.5 kHz resonant peak for articulate presence
EQ voicing: 5 Bass / 8 Midrange / 9 Treble
Four-conductor wiring supports coil-splitting, phase-switching, and series/parallel switching
Gold-plated cover
Four-conductor hookup cable included

The TB-6 combines Trembucker spacing precision with high-output Duncan Distortion character, making it a direct drop-in solution for bridge-position upgrades on tremolo-equipped guitars in recording and production contexts demanding aggressive, controlled high-gain tones.

Condition	New
Country of Manufacture	United States
