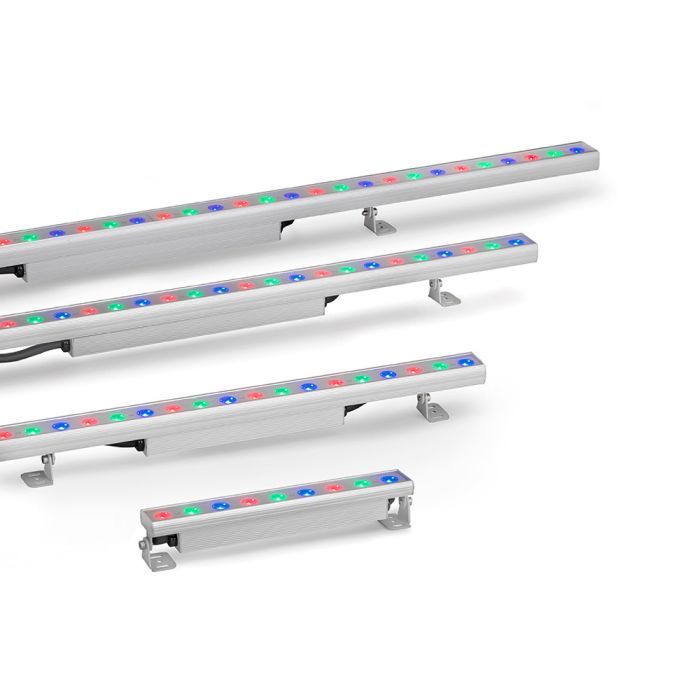

Martin RUSH CS300 Graze RGB Color Mixing Linear Wash

Martin RUSH CS300 Graze RGB Color Mixing Linear Wash

The Martin RUSH CS300 Graze is a compact linear LED wash fixture engineered for studio set lighting, cyc work, and accent applications. Its narrow 46 mm profile and lightweight 1 kg construction make it ideal for tight rigging spaces and mobile studio setups, while the asymmetrical 18° × 65° beam angle delivers controlled, even light across backdrops and set surfaces. The fixture operates silently with no moving parts, making it essential for sound-stage environments and recording sessions where acoustic isolation is critical.

Light Output & Color Control

Cree XP-E2 RGB LEDs provide full-color mixing capability with an expected lifespan of 50,000 hours to >70% luminous output, ensuring reliable performance across extended production schedules. Electronic dimming and CTC preset control enable both simple operation and sophisticated color temperature and color control without requiring complex programming, streamlining on-set adjustments during takes.

Integration & Control

The hybrid power and data connection using 6-pin custom connectors consolidates wiring into a single cable, reducing setup time and cable clutter on set. Direct mounting with included brackets allows orientation in any direction, with a 0.2 m (8 in.) minimum clearance to illuminated surfaces; the system supports DMX and RDM control via 5-pin XLR connectors, permitting up to 10 meters of fixtures on a single power supply unit for scalable lighting rigs.

Key Features

• Length: 303 mm (11.9 in.) – compact size for tight cove applications
• Width: 46 mm (1.8 in.) – narrow profile minimizes visual intrusion
• Height with bracket: 65 mm (2.6 in.)
• Weight: 1 kg (2.2 lbs.) – lightweight for easy handling and support
• Cree XP-E2 RGB LEDs – full-color mixing from a single fixture
• Beam angle: 18° × 65° – asymmetrical pattern optimized for wall washing
• LED lifetime: 50,000 hours to >70% luminous output
• Aluminum housing with clear anodized finish – durable and corrosion-resistant
• Frosted polycarbonate lens – even light distribution
• IP20 ingress protection – suitable for indoor environments
• Electronic dimming and CTC preset control – flexible operation modes
• Hybrid power and data connectors – single-cable installation; supports DMX/RDM control via 5-pin XLR
• AC input 100–240 V, 50/60 Hz; DC output 36 V, 12 A maximum – compatible with standard Martin power supplies
• Mountable in any orientation with included brackets

The RUSH CS300 Graze delivers high-output color mixing in a minimal footprint, combining Martin's proven control architecture with cost-effective installation to create sophisticated set lighting without unnecessary complexity.
