Martin MAC Aura Raven XIP in SiP
Description

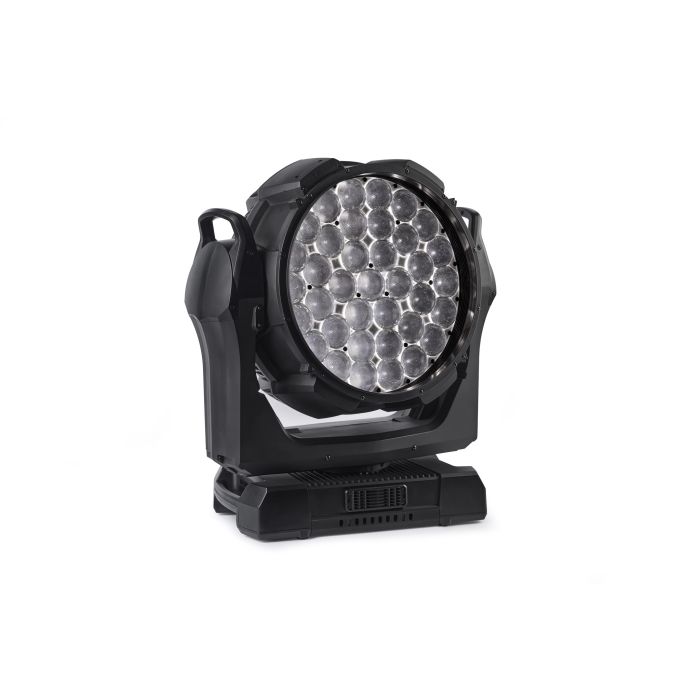

Martin MAC Aura Raven XIP in SiP
The MAC Aura Raven XIP is a professional-grade moving light fixture engineered for high-output performance in demanding touring and installation environments. Its compact form factor and weatherproof construction make it equally at home on outdoor stages or in climate-controlled venues, while the dual-engine LED system delivers exceptional brightness and pixel-level control across the entire fixture.
Light Output & Beam Performance
This fixture produces 27,000 lumens through a 343 mm (13.5 in) front lens, with a 6°–51° zoom range driven by silent belt mechanics for seamless transitions during live performance. The beam engine consists of 37 individually addressable LEDs at 40W each (RGBL), delivering 830W of total LED power for rich color mixing and intensity control across the visible spectrum.
Control & Durability
The fixture supports DMX, Art-Net, sACN, and Martin P3 protocols, enabling integration into any modern lighting control ecosystem, while a Universal Connect Module slot accommodates third-party wireless modules for cable-free operation. Built with IP54 weatherproof rating (XIP smart weatherproof technology) and LED lifetime exceeding 50,000 hours, this fixture is engineered for years of reliable operation in variable conditions.
Key Features
- Light output: 27,000 lumens through 343 mm (13.5 in) front lens
- LED beam engine: 37 individually addressable LEDs at 40W each (RGBL color mixing)
- Total beam LED power: 830W
- Aura backlight: 234-LED pixelated RGB pixels with individual control
- Total Aura LED power: 70W
- LED lifetime: >50,000 hours to >70% luminous output
- Zoom range: 6°–51° (belt-driven, near-silent operation)
- IP54 weatherproof rating with XIP smart weatherproof technology
- Control protocols: DMX, Art-Net, sACN, Martin P3
- Universal Connect Module slot for third-party wireless modules
- Built-in NFC interface for mobile app configuration
- SiP flightcase weight: 7 kg
The MAC Aura Raven XIP combines raw output, flexible control, and road-ready durability into a fixture capable of handling the demands of professional touring, festival production, and permanent installation.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin MAC Aura Raven XIP is a professional LED moving light engineered for broadcast, theatrical, and large-scale studio production work where consistent output and color fidelity matter. Studio and production facilities use it for its 27,000-lumen brightness, rich RGBL color mixing from 37 individually addressable LEDs, and pixel-level backlight control (234 addressable RGB pixels) that deliver precise visual effects and lighting design in any session. Its multi-protocol control integration, silent operation, and long LED lifespan make it a dependable fixture for permanent installation and high-end production workflows.
Who This Is For
Great for
- ✓ touring
- ✓ festival production
- ✓ permanent installation
- ✓ live performance
Not the best pick for
- – home use
- – small venue ambient lighting
Skill level: Professional
Frequently Asked Questions
What makes the MAC Aura Raven XIP suitable for outdoor and touring use?
The fixture carries an IP54 weatherproof rating with XIP smart weatherproof technology, enabling reliable operation in variable outdoor conditions and festival environments. Its 50,000+ hour LED lifespan and durable construction support extended road touring without frequent maintenance or replacement.
How does the dual-engine LED system work?
The fixture combines a beam engine (37 individually addressable LEDs at 40W each with RGBL color mixing, 830W total) for primary output and beam control, plus an Aura backlight (234 individually addressable RGB pixels, 70W) for pixelated effects and secondary lighting design. Both engines operate independently for flexible creative control.
What control protocols and wireless options does it support?
The MAC Aura Raven XIP supports DMX, Art-Net, sACN, and Martin P3 protocols for integration into modern lighting control systems. It includes a Universal Connect Module slot for third-party wireless modules, plus a built-in NFC interface for mobile app configuration.
What is the zoom range and how does it perform during live shows?
The fixture offers a 6°–51° zoom range driven by silent belt mechanics for seamless, near-silent transitions during live performance—critical for maintaining audio clarity and show flow.
What comes in the SiP package and how portable is it?
The SiP (in flightcase) package includes the MAC Aura Raven XIP in a flight case weighing 7 kg, making it road-ready for rapid setup and breakdown at touring venues and festivals.
