Martin MAC Aura Raven XIP in SiP B-Stock

Martin MAC Aura Raven XIP in SiP

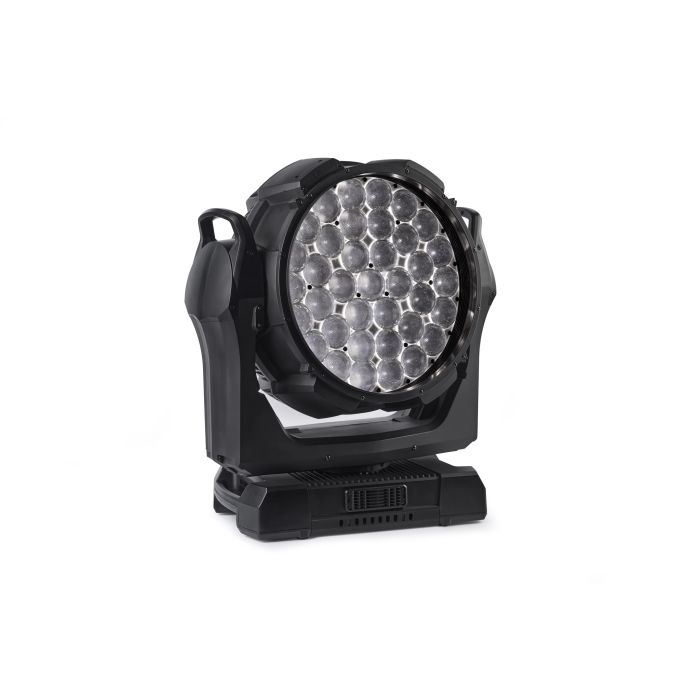

The MAC Aura Raven XIP is a professional-grade moving light fixture engineered for high-output performance in demanding touring and installation environments. Its compact form factor and weatherproof construction make it equally at home on outdoor stages or in climate-controlled venues, while the dual-engine LED system delivers exceptional brightness and pixel-level control across the entire fixture.

Light Output & Beam Performance

This fixture produces 27,000 lumens through a 343 mm (13.5 in) front lens, with a 6°–51° zoom range driven by silent belt mechanics for seamless transitions during live performance. The beam engine consists of 37 individually addressable LEDs at 40W each (RGBL), delivering 830W of total LED power for rich color mixing and intensity control across the visible spectrum.

Control & Durability

The fixture supports DMX, Art-Net, sACN, and Martin P3 protocols, enabling integration into any modern lighting control ecosystem, while a Universal Connect Module slot accommodates third-party wireless modules for cable-free operation. Built with IP54 weatherproof rating (XIP smart weatherproof technology) and LED lifetime exceeding 50,000 hours, this fixture is engineered for years of reliable operation in variable conditions.

Key Features

• Light output: 27,000 lumens through 343 mm (13.5 in) front lens
• LED beam engine: 37 individually addressable LEDs at 40W each (RGBL color mixing)
• Total beam LED power: 830W
• Aura backlight: 234-LED pixelated RGB pixels with individual control
• Total Aura LED power: 70W
• LED lifetime: >50,000 hours to >70% luminous output
• Zoom range: 6°–51° (belt-driven, near-silent operation)
• IP54 weatherproof rating with XIP smart weatherproof technology
• Control protocols: DMX, Art-Net, sACN, Martin P3
• Universal Connect Module slot for third-party wireless modules
• Built-in NFC interface for mobile app configuration
• SiP flightcase weight: 7 kg

The MAC Aura Raven XIP combines raw output, flexible control, and road-ready durability into a fixture capable of handling the demands of professional touring, festival production, and permanent installation.
