Martin ERA 600 Compact Moving Head CMY Color Mixing Light

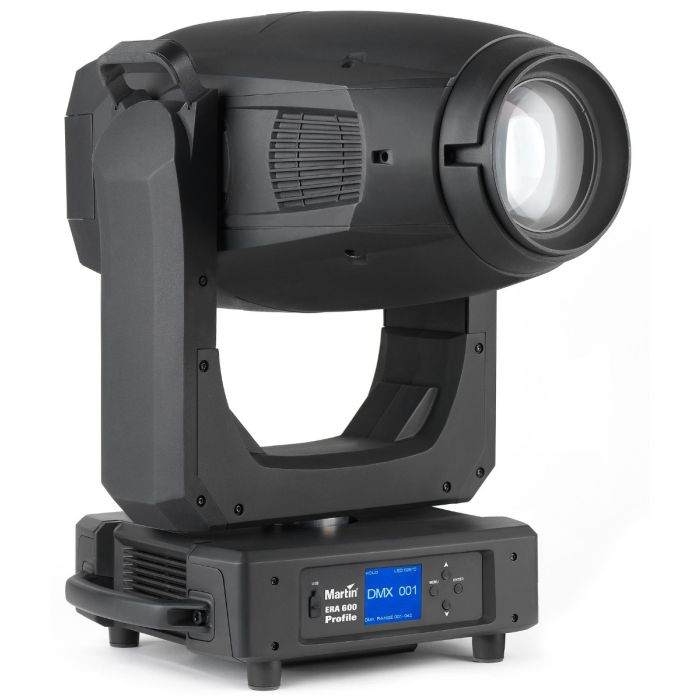

Martin ERA 600 Profile Compact Moving Head CMY Color Mixing Light

The Martin ERA 600 Profile is a compact, versatile LED profile fixture engineered for studio lighting design, broadcast production, theater, and live event recording. Its lightweight, modular construction streamlines setup and teardown in controlled environments, while the 550 W LED engine delivers exceptional output with the reliability and consistency that modern production workflows demand—no lamp degradation, no color shift over time.

Light Output & Optical Performance

The 6,500 K LED light source produces 19,000 lumens with crisp optics and a flat field, ensuring sharp, well-defined edges and precise beam control across the 6° to 45° zoom range. Electronic dimming and strobing provide instant intensity control down to zero percent, maintaining consistent color temperature and output throughout the entire zoom spectrum—critical for color-grading accuracy in post-production.

Color Mixing & Effects Capability

The fixture features CMY color mixing with linear CTO for precise color temperature correction from daylight to tungsten, allowing seamless integration with existing gels and key-to-fill lighting ratios. The dual rotating gobo wheels plus static wheel load 14 rotating/indexing glass gobos drawn from Martin's renowned MAC range, complemented by 8 static gobos, a 7-slot color wheel, two interchangeable prisms, heavy frost, and an animation wheel with bi-directional continuous rotation—expanding creative possibilities from subtle texture to bold atmospheric effects without additional rigging.

Key Features

• 550 W, 6,500 K LED engine with 19,000 lumens output
• 6° to 45° zoom range (1:7.5 ratio) with fast, accurate tracking
• CMY color mixing with variable color temperature (CTO) control
• Iris for electronic beam adjustment
• 14 rotating/indexing gobos plus 8 static gobos from Martin MAC series
• 7-slot color wheel with split-color capability
• Dual 4-facet and linear rotating prisms with index control
• Heavy frost filter for wash effects
• Animation wheel with continuous bi-directional rotation
• Modular design with tool-free effect module swaps in under one minute
• DMX512/RDM control via 5-pin locking XLR; 35 DMX channels
• 100–240 V AC, 50/60 Hz; typical 778 W consumption; minimum 20,000-hour LED lifespan

The ERA 600 Profile combines compact footprint with professional output and effect complexity, making it an efficient, stable workhorse for studio sessions, broadcast production, theater, and location recording—wherever precise color control and repeatable optics matter.
