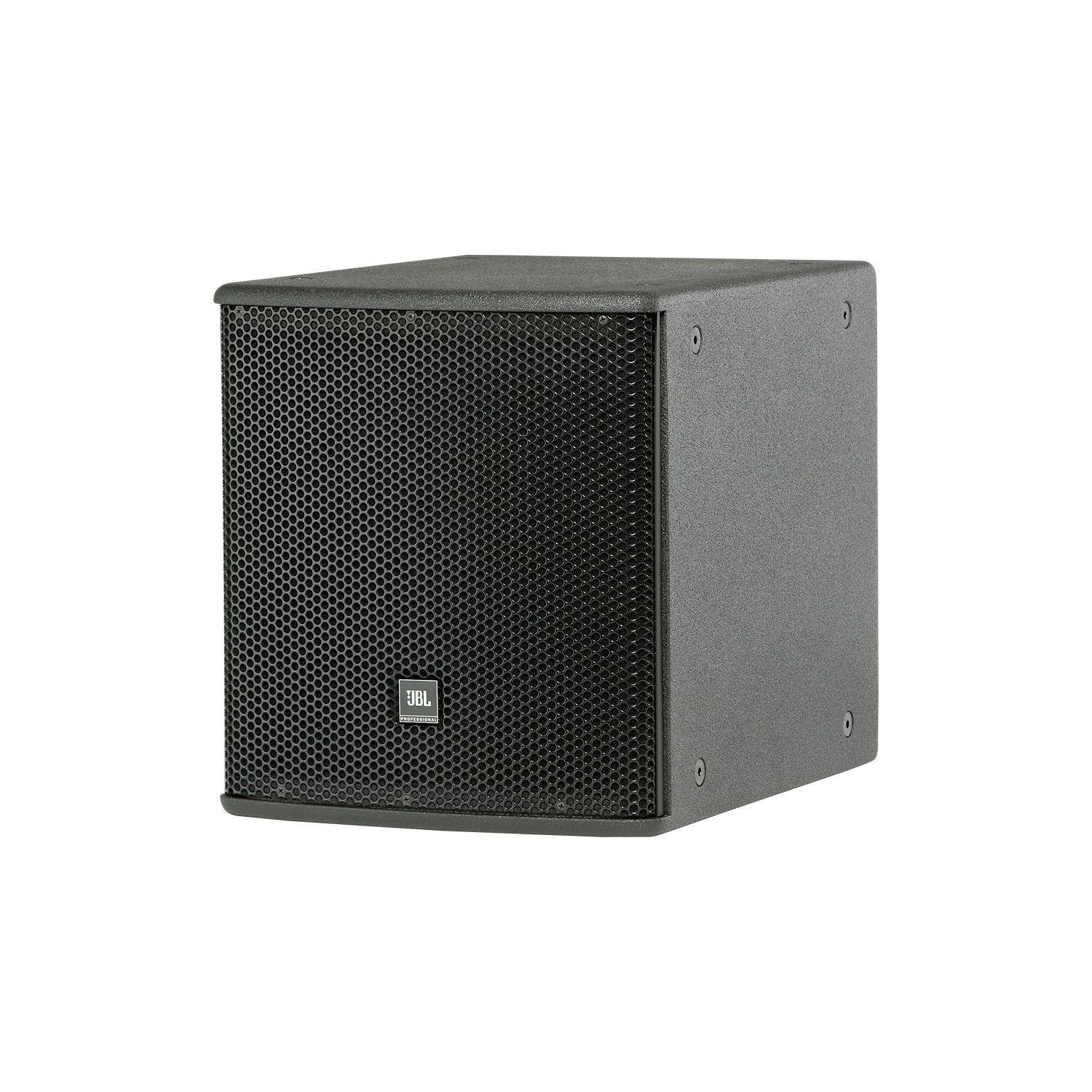

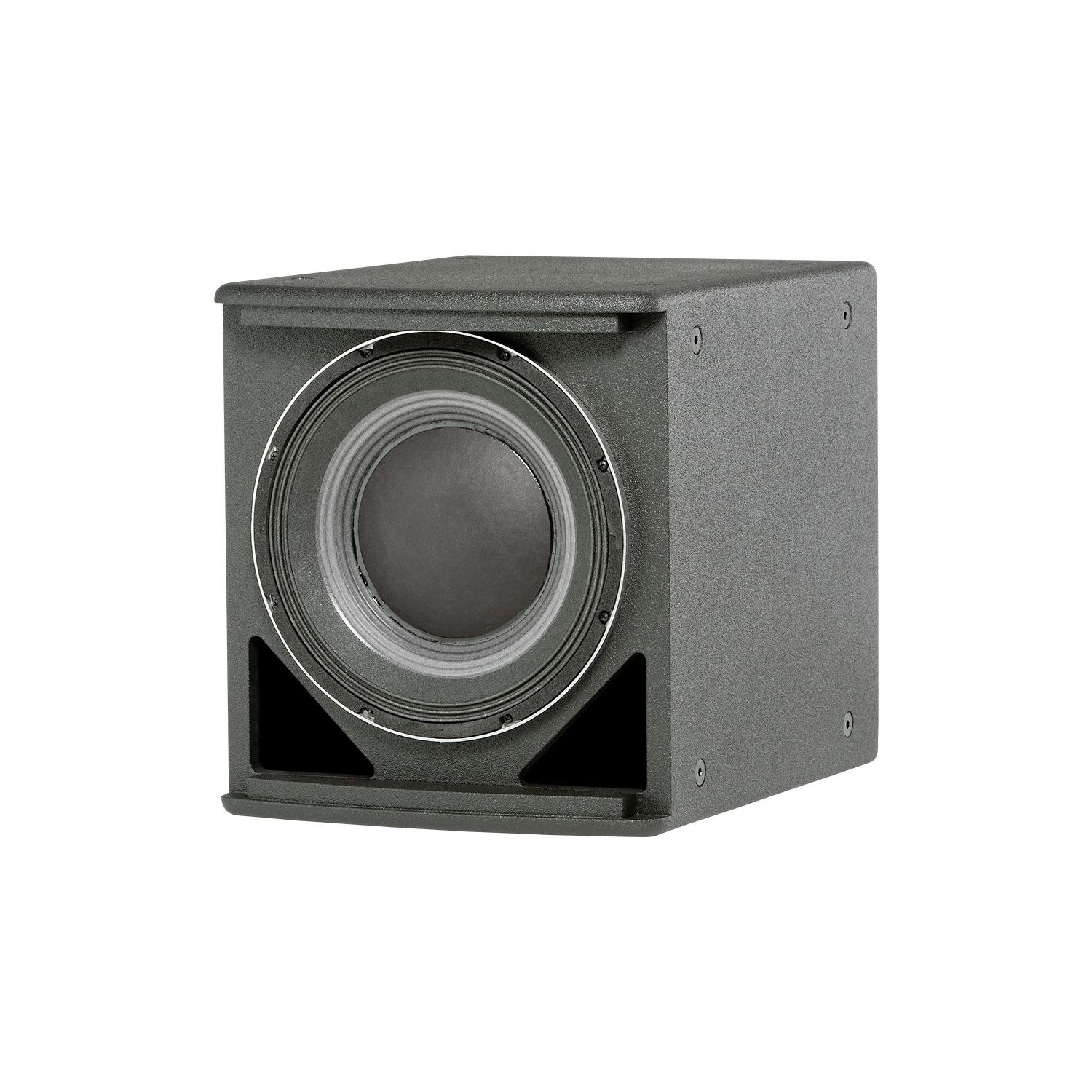

JBL ASB6112 Compact High Power Single 12 Subwoofer
In stock
- SKU
- ASB6112
Description
JBL ASB6112 Compact High Power Single 12" Subwoofer
The ASB6112 captures tight, articulate bass that sits perfectly in your mix without muddying the midrange or bleeding into adjacent frequency ranges. Its single 12-inch differential drive woofer delivers controlled, punchy low-end ideal for tracking sessions, mixing suites, and mastering environments where bass accuracy and translation are critical. The compact footprint and high-power handling make it a versatile choice for home studios, project rooms, and portable setups that demand professional-grade bass reproduction without sacrificing studio real estate.
Monitoring & Recording Performance
Maximum continuous output reaches 126 dB-SPL with 132 dB peaks, driven by a 700 W long-term power rating (2800 W peak) that handles extended tracking and mixing sessions without fatigue. Frequency response spans 43 Hz to 1 kHz (±3 dB), with extension down to 35 Hz at –10 dB, providing the full spectrum needed for accurate bass monitoring across virtually any production style. System sensitivity of 96 dB-SPL at 1W means efficient coupling to most studio amplifiers and mixing console outputs.
Cabinet & Construction
The front-loaded vented enclosure uses 16 mm exterior-grade 11-ply birch plywood construction for rigidity and durability, finished in black DuraFlex with IP>3 rating for dust and water protection. Compact dimensions of 406 × 369 × 483 mm (16.0 × 14.5 × 19.0 in) fit tight studio footprints while remaining portable for session work, and 16 suspension attachment points with M10 threaded hardware enable secure placement in any orientation or mounting configuration.
Key Features
- Single 2263H Differential Drive® dual coil dual gap 12" woofer with neodymium magnet
- Frequency range: 35 Hz – 1 kHz (–10 dB); 43 Hz – 1 kHz (±3 dB)
- Maximum SPL: 126 dB-SPL continuous, 132 dB peak (40 Hz – 300 Hz)
- System sensitivity: 96 dB-SPL, 1W (2.83V) @ 1m
- Long-term power rating: 700 W, 2800 W peak over 100 hours
- Transducer power rating: 1000 W, 4000 W peak over 2 hours
- Nominal impedance: 8 ohms
- NL4 Neutrik Speakon and barrier strip connectivity (up to 10 AWG / 9 mm spade lugs)
- Front-loaded vented enclosure with ultra-robust cone design
- 16 mm exterior-grade 11-ply birch plywood cabinet construction
- 16 suspension attachment points with M10 threaded hardware for flying or mounting
- IP>3 rating for dust and water protection; available in black or white
The ASB6112 combines genuine JBL engineering with a practical form factor that delivers professional low-frequency monitoring and recording wherever your session requires accurate bass.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The ASB6112 brings professional-grade low-end monitoring to studio sessions and mix environments, with a tight 43 Hz–1 kHz response and controlled transient behavior that sits clean in a mix. Its 96 dB sensitivity and efficient 700 W long-term power make it practical for nearfield or mid-field monitoring without requiring exotic amplification. Use it to catch frequency issues, balance kick and bass during tracking and mixing, and ensure your low end translates to the world outside your control room.
Who This Is For
Great for
- ✓ Live Sound Reinforcement
- ✓ Studio Monitoring
- ✓ Funk
- ✓ Hip-Hop
- ✓ Rock
Not the best pick for
- – Portable/Lightweight Touring
- – Intimate Acoustic Venues
Frequently Asked Questions
What genres and use cases is the ASB6112 best suited for?
It excels in live sound reinforcement, studio monitoring, and installed systems across funk, hip-hop, and rock. Its punchy, articulate low-end and tight transient response make it ideal for any genre where bass clarity and definition matter more than extended sub-bass rumble.
How does the ASB6112 compare to other compact 12-inch subs like the Yamaha DXS12 or QSC KS112?
The ASB6112 delivers 126 dB continuous SPL, 96 dB sensitivity, and a response down to 35 Hz with dual-coil differential-drive design for tight, controlled bass. It sits in the same professional class as the DXS12 and KS112, each with distinct character—the JBL prioritizes articulate transient response and compact footprint for practical deployment.
Is the ASB6112 easy to transport and fly?
Yes. At 406 × 369 × 483 mm and built from rigid 11-ply birch plywood, it's compact enough for practical transport while remaining road-tough. Sixteen M10 suspension attachment points let you fly or mount it in any orientation, and the IP>3 rating protects against dust and moisture.
What amplifier or power levels do I need to use the ASB6112?
The sub draws 700 W continuous and 2800 W peak, with 96 dB sensitivity, so it couples efficiently to most mixing consoles, amplifiers, and powered rack systems. A dedicated powered subwoofer amp or live-sound processor with subwoofer output will give you full control over crossover and level.
What connections and control options does it have?
The ASB6112 features both NL4 Neutrik Speakon and barrier-strip connectivity (up to 10 AWG spade lugs) for flexible wiring to amplifiers, crossovers, or mixing consoles. Onboard controls let you set level, phase, and low-pass filtering for integration into any sound system.
