JBL 5732-M/HF Mid-High Section Only - Cinema ScreenArray (LF Sold Sepa
Share
- MID/HIGH SECTION ONLY - upper cabinet (5732-M/HF: two 8 in mids + HF horn) of the three-way JBL 5732; the 5739 low-frequency section is sold separately
- Brand new in original box
- Full Cinema manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- 5732-M-HF
. Description

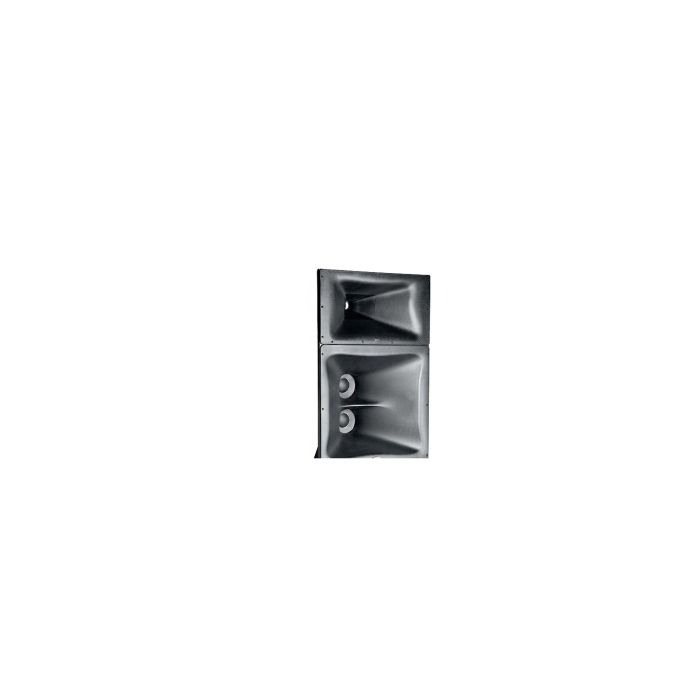

JBL 5732-M/HF Mid-High Section Only – Cinema ScreenArray
This is the mid-high frequency cabinet from JBL's professional 5732 ScreenArray cinema loudspeaker system—a precision three-way component engineered for studio monitoring, mixing, mastering, and post-production work. The 5732-M/HF handles all midrange and high-frequency reproduction with the clarity and power density required for critical listening in demanding recording environments. Note that this listing covers the mid-high section only; the low-frequency 5739 section (dual-15 cabinet) is sold separately and required to complete a functional 5732 system.
Acoustic Performance & Studio Monitoring Capability
The section delivers 110 dB SPL sensitivity in the midrange (2169H drivers) and 115 dB in the high-frequency compression driver, providing accurate representation without excessive amplifier demand in control rooms and mixing spaces. Dual 200 mm (8 in) Differential Drive neodymium midrange transducers with 76 mm dual-coil edgewound voice coils and a 2452H-SL 38 mm (1.5 in) compression driver with damped titanium diaphragm deliver transparent midrange and extended high-frequency response critical for tracking, mixing, and mastering sessions.
Integration & Specifications
The 5732-M/HF integrates into the complete three-way system with crossover frequencies at 250 Hz and 1.3 kHz, maintaining tight phase coherence and seamless driver integration for accurate mix translation. Input power handling is 700 W (MF) and 150 W (HF) on 4 ohm and 8 ohm nominal impedance respectively, with 90-degree horizontal coverage and 20-degree up / 30-degree down vertical coverage—ideal for large studio control rooms and monitoring applications.
Key Features
- Two 2169H 200 mm (8 in) Differential Drive neodymium midrange drivers with 76 mm dual-coil edgewound voice coils
- 2452H-SL 38 mm (1.5 in) compression driver with 100 mm voice coil and damped titanium diaphragm
- Midrange sensitivity: 110 dB SPL at 2.83 V / 1 m
- High-frequency sensitivity: 115 dB SPL at 2.83 V / 1 m
- Input power handling: 700 W (MF) / 150 W (HF) AES 2-hour rating
- Nominal impedance: 4 ohms (MF) / 8 ohms (HF)
- Coverage pattern: 90° horizontal × 20° up / 30° down vertical
- System crossover frequencies: 250 Hz and 1.3 kHz
- Dimensions: 1054 × 762 × 450 mm (H × W × D)
- Compatible with JBL 5739 low-frequency section to form complete 5732 ScreenArray system
- Designed for cinema, studio production, and post-production environments
- Push terminal binding post inputs for secure amplifier connection
The 5732-M/HF brings JBL Professional's cinema-grade precision and build quality to professional studio monitoring, and pairs directly with the 5739 LF section to create a full-range tri-amplified reference system for mixing and mastering.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL 5732-M/HF mid-high section delivers studio-quality midrange clarity and extended high-frequency detail with 110–115 dB SPL output, dual neodymium 200 mm drivers, and a precision compression driver optimized for tight phase coherence and seamless crossover integration. Designed as part of a complete three-way reference monitor system, it excels in mastering, post-production mixing, and critical listening environments where flat, detailed response and high output capability matter most. Pair it with the 5739 low-frequency section and professional amplification to build a full-range tri-amplified studio reference.
Who This Is For
Great for
- ✓ cinema sound
- ✓ studio monitoring
- ✓ post-production mixing
Not the best pick for
- – portable live sound
- – small venues
Skill level: Professional
Frequently Asked Questions
What is included with this purchase, and what else do I need?
This listing covers the mid-high section only, which handles all midrange and high-frequency reproduction. You must purchase the JBL 5739 low-frequency cabinet separately to form a complete functional three-way 5732 ScreenArray system. You will also need a professional tri-amplified setup with separate amplifier channels for the midrange (700 W) and high-frequency (150 W) sections.
What power amplification and settings do I need?
The 5732-M/HF requires tri-amplified operation: 700 W (AES 2-hour rating) for the midrange at 4 ohm impedance, and 150 W for the high-frequency section at 8 ohm impedance. Crossover frequencies are set at 250 Hz and 1.3 kHz, maintaining phase coherence and seamless driver integration across the system.
Is this suitable for live sound or portable applications?
No; the 5732-M/HF is engineered exclusively for fixed cinema, studio, and post-production installations. It is not designed for portable live sound or small venues and requires permanent mounting and professional tri-amplified amplification.
What are the coverage pattern and room placement specifications?
The cabinet provides 90-degree horizontal coverage with 20 degrees up and 30 degrees down vertical coverage, typical for screen-array cinema applications. Dimensions are 1054 mm H × 762 mm W × 450 mm D; mounting and placement should follow professional installation guidelines for your specific room acoustics.
How does this compare to other professional studio monitors?
The 5732-M/HF targets cinema and post-production environments with high output density (115 dB HF sensitivity), precise directional control, and tight phase coherence across crossovers. Similar reference monitors like the Meyer Sound USW-2P, Genelec 8260A, and Dynaudio LYD 8 serve comparable professional mastering and mixing roles but in different form factors and configurations.
