JBL 5732-M/HF Mid-High Section Only - Cinema ScreenArray B-Stock
Share
- MID/HIGH SECTION ONLY - upper cabinet (5732-M/HF: two 8 in mids + HF horn) of the three-way JBL 5732; the 5739 low-frequency section is sold separately
In stock
- SKU
- 5732-M-HF-B
. Description

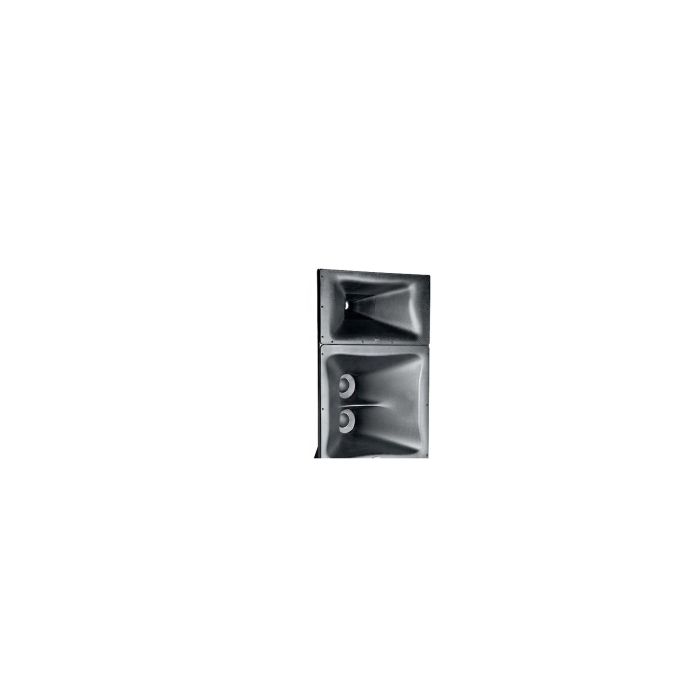

JBL 5732-M/HF Mid-High Section Only — Cinema ScreenArray B-Stock
The JBL 5732-M/HF is the mid and high-frequency upper cabinet of JBL's professional three-way cinema ScreenArray loudspeaker, engineered for precise vocal and effects reproduction in mastering suites, mixing rooms, and premium post-production studios. This B-Stock unit offers factory-direct savings on a fully functional section with complete manufacturer warranty, ideal for integrating into an existing 5732 system or building a custom reference monitoring setup. Note: this listing covers the mid-high section only; the separate 5739 low-frequency section (dual-15 bass cabinet) is required to complete a full 5732 system.
Driver Configuration & Acoustic Performance
The section houses two 2169H 200 mm (8 in) Differential Drive neodymium midrange transducers with 76 mm dual-coil edgewound voice coils, paired with a 2452H-SL 38 mm (1.5 in) compression driver featuring a damped titanium diaphragm and 100 mm neodymium magnet for high-frequency reproduction. Midrange sensitivity reaches 110 dB SPL while the high-frequency driver delivers 115 dB SPL (both at 2.83 V / 1 m), ensuring articulate dialogue, effects clarity, and consistent horizontal coverage of 90 degrees (20 degrees up / 30 degrees down vertical pattern).
Power Handling & Integration
The midrange section accepts 700 W AES 2-hour input power with 4 ohm nominal impedance, while the high-frequency section handles 150 W at 8 ohm impedance, requiring separate amplifier channels for tri-amplified operation (crossover frequencies at 250 Hz and 1.3 kHz). Compact cabinet dimensions of 1054 x 762 x 450 mm (41.5 x 30.0 x 17.8 in) allow flexible installation in tight booth or ceiling-mounted applications.
Key Features
- 2 × 2169H 200 mm (8 in) Differential Drive neodymium midrange transducers with dual-coil edgewound voice coils
- 2452H-SL 38 mm (1.5 in) compression driver with damped titanium diaphragm and neodymium magnet
- Midrange sensitivity: 110 dB SPL at 2.83 V / 1 m
- High-frequency sensitivity: 115 dB SPL at 2.83 V / 1 m
- Midrange power handling: 700 W (AES 2-hour); High-frequency power handling: 150 W (AES 2-hour)
- Nominal impedance: 4 ohms (MF) / 8 ohms (HF)
- 90° horizontal coverage; 20° up / 30° down vertical pattern
- Crossover frequencies: 250 Hz and 1.3 kHz (tri-amplified configuration)
- Compact cabinet: 1054 × 762 × 450 mm (41.5 × 30.0 × 17.8 in)
- B-Stock open-box or cosmetic-blemish condition with full manufacturer warranty
- Mid-high section only; pairs with separate 5739 LF cabinet for complete system
- Professional cinema, studio production, and post-production applications
This professional-grade mid-high section delivers the frequency articulation and output capability demanded by mixing, mastering, and post-production tracking, backed by JBL's engineering reputation and full factory support.
As a B-Stock instrument it carries a minor cosmetic blemish with no effect on playability, tone or structure, which is why it sells for less than a first-quality unit. It is new, unplayed and covered by the full manufacturer warranty.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The JBL 5732-M/HF mid-high section is a professional cinema monitoring cabinet designed for mastering and post-production engineers who demand articulate midrange and high-frequency clarity for accurate mix translation and dialogue intelligibility. Dual 8-inch Differential Drive midrange drivers and a damped titanium compression driver ensure extended dynamic range and consistent frequency articulation across the listening field, with tri-amplified inputs (250 Hz and 1.3 kHz crossovers) for precise control over session monitoring. As a B-Stock unit with full factory warranty, this cabinet offers significant savings for studios building dedicated cinema or Dolby Atmos monitoring systems.
Who This Is For
Great for
- ✓ Studio Sessions
- ✓ Live Performance
- ✓ Post-production
- ✓ Cinema sound design
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean for this cabinet?
B-Stock means this unit is fully functional and new, unplayed, with full manufacturer warranty — it has only minor cosmetic blemishes or open-box condition that do not affect acoustic performance, tone, or structural integrity, which is why it sells for less than a first-quality unit.
Can I use this mid-high section on its own, or do I need additional components?
This is the mid and high-frequency section only; you must pair it with the separate 5739 low-frequency (dual-15 bass) cabinet to complete a full three-way 5732 cinema ScreenArray system. It requires tri-amplified operation with separate amplifier channels for the midrange (4 ohm, 700 W AES) and high-frequency (8 ohm, 150 W AES) sections.
What applications is this cabinet designed for?
The 5732-M/HF is purpose-built for professional cinema sound design, post-production mixing, mastering studios, and premium theatrical monitoring environments where precise vocal reproduction and effects clarity are essential. It is not recommended for home recording or practice use.
What kind of frequency coverage and dispersion does this section provide?
The cabinet delivers 90-degree horizontal dispersion with a 20-degree up and 30-degree down vertical pattern, crossover frequencies at 250 Hz and 1.3 kHz, and sensitivity of 110 dB SPL (midrange) and 115 dB SPL (high-frequency), ensuring consistent articulation and coverage across cinema or studio monitoring setups.
What are the physical dimensions and installation options?
Cabinet dimensions are 1054 × 762 × 450 mm (41.5 × 30.0 × 17.8 in), allowing flexible installation in tight booth spaces or ceiling-mounted applications typical of post-production and cinema facilities.
