JBL 4732-M/HF Mid-High Section Only - Cinema ScreenArray B-Stock
Share
- MID/HIGH SECTION ONLY - upper cabinet (4732-M/HF: four 6.5 in mids + HF horn) of the three-way JBL 4732; the 4739 low-frequency section is sold separately
In stock
Only 1 left
- SKU
- 4732-M-HF-B
. Description

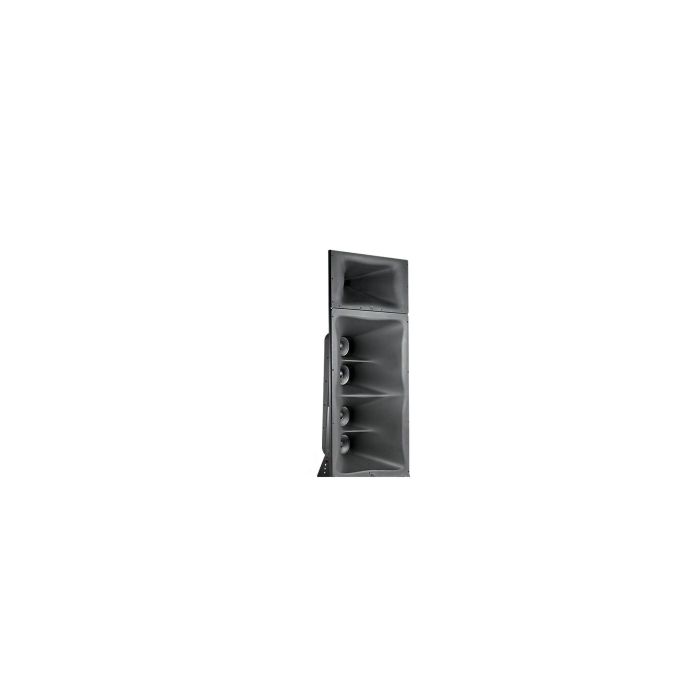

JBL 4732-M/HF Mid-High Section Only – Cinema ScreenArray B-Stock
The JBL 4732-M/HF is the upper mid-high frequency section of JBL's premier three-way cinema loudspeaker, engineered for professional cinema, studio production, and post-production environments. This B-stock unit (open box or cosmetic blemish) delivers full factory functionality and warranty at a significant savings. Note: this listing is for the mid-high cabinet only; the low-frequency section (JBL 4739) must be purchased separately to complete a functioning 4732 system.
Driver Configuration & Acoustic Performance
The cabinet houses four 6.5-inch (165H) midrange drivers with 1.5-inch voice coils and a single 2432H high-frequency compression driver featuring a 75 mm titanium diaphragm and 1.5-inch exit. Combined sensitivity reaches 107 dB SPL at 2.83 V / 1 m (tri-amp configuration: MF 109 dB, HF 115 dB), delivering transparent, articulate reproduction of vocals, instruments, and high-frequency detail with the headroom and precision required for critical mixing, mastering, and tracking sessions.
Coverage Pattern & Integration Into Studio Setups
Horizontal coverage spans 90 degrees with vertical coverage of 20 degrees up / 30 degrees down, maintaining consistent frequency response across typical studio monitoring positions and control room layouts. The 4-ohm nominal impedance (tri-amp: MF 4 ohms, HF 8 ohms) and 200 W AES power handling (400 W recommended amplifier) integrate seamlessly into bi-amplified or tri-amplified signal chains; the cabinet's shallow 450 mm depth allows flexible placement behind acoustic treatments or baffle systems in space-constrained production environments.
Key Features
- Four 6.5-inch (165H) midrange transducers with 38 mm voice coils
- One 2432H 75 mm titanium diaphragm compression driver, 38 mm exit
- Nominal impedance: 4 ohms (tri-amp: MF 4 ohms, HF 8 ohms)
- Free-field sensitivity: 107 dB SPL at 2.83 V / 1 m (tri-amp: MF 109 dB, HF 115 dB)
- Input power handling: 200 W AES 100-hour; 400 W recommended amplifier
- Horizontal coverage: 90 degrees; vertical: 20 degrees up / 30 degrees down
- Dimensions: 1544 x 762 x 450 mm (60.8 x 30 x 17.75 inches)
- Part of three-way ScreenArray system with 250 Hz crossover (1.2 kHz tri-amp)
- Frequency response: 40 Hz – 19 kHz (±3 dB) when paired with 4739 LF section
- Factory B-stock: open box or cosmetic blemish, fully functional, full manufacturer warranty
This JBL 4732-M/HF mid-high section delivers the reference-grade accuracy, extended dynamic range, and proven reliability needed for professional recording, mixing, and mastering workflows that demand transparent high-frequency articulation and controlled midrange reproduction.
As a B-Stock instrument it carries a minor cosmetic blemish with no effect on playability, tone or structure, which is why it sells for less than a first-quality unit. It is new, unplayed and covered by the full manufacturer warranty.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The JBL 4732-M/HF mid-high section is a professional studio monitoring cabinet designed for mastering rooms, post-production suites, and large-format recording facilities that demand cinema-grade accuracy. Four 6.5-inch midrange transducers and a 75 mm titanium compression driver deliver 107 dB SPL output with precise dialogue reproduction and controlled vertical dispersion, making it ideal for critical mixing and monitoring in professional production environments. As a B-Stock unit with full functionality and manufacturer warranty, it provides reference-class performance at a lower price point.
Who This Is For
Great for
- ✓ Cinema Sound
- ✓ Studio Monitoring
- ✓ Post-Production
- ✓ Live Event Sound
Not the best pick for
- – Portable Applications
- – Small Venues
- – Budget Installations
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean and does it affect performance?
B-Stock indicates an open-box or cosmetically blemished unit—the cabinet may have minor visual marks but is fully functional and factory-warranted. There is no impact to sound quality, acoustic performance, or reliability; the unit is new and unplayed.
Do I need anything else to use this cabinet?
This listing covers the mid-high section only. You must purchase the JBL 4739 low-frequency section separately to complete a working three-way 4732 system. The two cabinets integrate at a 250 Hz crossover (or 1.2 kHz in tri-amp mode).
What amplifier power do I need?
The cabinet is rated for 200 W AES input (100-hour rating) with a recommended amplifier of 400 W. In tri-amp configurations, the midrange section operates at 4 ohms and the high-frequency at 8 ohms for flexible routing flexibility.
What coverage pattern and frequency response does it provide?
The 4732-M/HF delivers 90 degrees horizontal coverage with 20 degrees up and 30 degrees down vertical coverage, ideal for cinema seating and control room positioning. Frequency response is 40 Hz–19 kHz (±3 dB) when paired with the 4739 LF section, with 107 dB SPL sensitivity for high-output dialogue and music reproduction.
Will this fit in a shallow space behind a cinema screen?
Yes—the cabinet measures only 450 mm (17.75 inches) in depth, making it designed to fit behind cinema screens and other shallow installation spaces without excessive intrusion or spatial compromise.
Do I pay sales tax on this order?
We collect sales tax only on orders shipped to California. Orders shipped to any other US state are charged $0 sales tax at checkout when you buy direct from our website. On this item that is roughly $190 less out the door than the same listed price at a national retailer or on a marketplace. Marketplaces such as eBay, Reverb and Amazon collect sales tax in nearly every state as marketplace facilitators no matter who the seller is, so the same item at the same price costs less bought direct. Free US shipping and 30-day returns are included. Some states ask buyers to self-report use tax on out-of-state purchases.
