JBL 3730-M/HF Mid-High Section Only - Cinema ScreenArray (LF Sold Sepa
Share
- Brand new in original box
- Full Cinema manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- 3730-M-HF
. Description

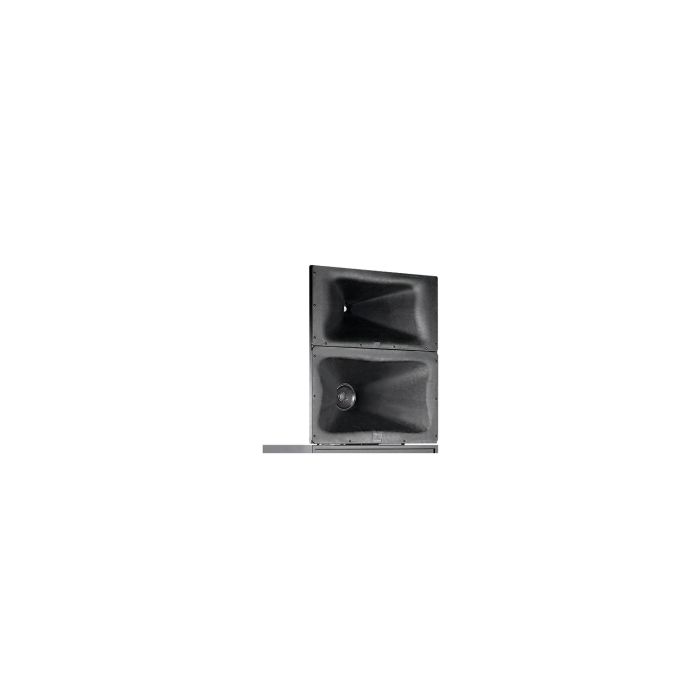

JBL 3730-M/HF Mid-High Section Only — Cinema ScreenArray
The JBL 3730-M/HF is the upper horn assembly from JBL's professional ScreenArray loudspeaker system, engineered to deliver precise midrange and high-frequency reproduction in studio monitoring and post-production environments. This pre-assembled and pre-aimed mid-high section pairs a 6.5-inch midrange cone with a compression-driven high-frequency horn, optimized for consistent coverage and seamless integration with an optional low-frequency cabinet. This is a components-only listing; the dual-15 bass section (model 3739) is sold separately.
Transducer & Acoustic Performance
The section combines a 195H 165 mm (6.5 in) midrange driver with a 38 mm voice coil and a 2414H 25 mm polymer-diaphragm neodymium compression driver for the high end, crossing over at 450 Hz and 2 kHz in the complete system. Sensitivity reaches 105 dB SPL at 2.83 V / 1 m, delivering efficient output that captures vocal warmth, instrumental detail, and transient clarity without requiring excessive amplifier headroom during critical listening sessions.
Electrical & Physical Specifications
The mid-high section operates at 4 ohms nominal impedance and handles 125 W input power (AES 2-hour rating). Cabinet dimensions measure 852 × 762 × 360 mm (33.5 × 30 × 14.1 in), with a compact profile suited for desktop, shelf, or wall-mounted configurations where accurate midrange and treble imaging are priorities in monitoring setups.
Key Features
- 195H 6.5-inch midrange transducer with 38 mm voice coil
- 2414H 25 mm neodymium compression driver with polymer diaphragm
- 4 ohms nominal impedance
- 125 W input power handling (AES 2-hour)
- 105 dB SPL sensitivity at 2.83 V / 1 m
- Pre-assembled and pre-aimed horn configuration
- Dimensions: 852 × 762 × 360 mm (33.5 × 30 × 14.1 in)
- Three-way passive system when paired with 3739 low-frequency section
- 90° horizontal and ±30/+20° vertical coverage (complete system)
- 450 Hz and 2 kHz crossover points (complete system)
- Part of JBL Professional ScreenArray cinema loudspeaker family
- Designed for small to medium cinema installations
The 3730-M/HF delivers the midrange clarity and treble articulation critical for mixing and mastering work, and when combined with the 3739 bass cabinet, forms a complete three-way system trusted in professional recording and post-production facilities.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL 3730-M/HF is a professional mid-high loudspeaker section designed for cinema and theater audio capture and monitoring, featuring a 6.5-inch midrange driver and 25 mm compression driver for controlled midrange clarity and treble articulation. While primarily engineered for fixed theater installations rather than studio tracking, it serves specialized monitoring and theatrical recording setups where cinema-grade frequency response and coverage predictability matter. Consider it if your workflow involves theatrical sound design, cinema post-production monitoring, or venue-specific audio installations requiring a proven three-way system.
Who This Is For
Great for
- ✓ Cinema
- ✓ Theater Audio
- ✓ Live Performance
- ✓ Install Audio
Not the best pick for
- – Home Listening
- – Practice Spaces
Skill level: Professional
Frequently Asked Questions
Is this a complete loudspeaker or does it require additional components?
This is the mid-high section only; the low-frequency 3739 bass cabinet is sold separately. Together they form a complete three-way cinema ScreenArray system with crossovers at 450 Hz and 2 kHz.
What amplifier power do I need to run this cabinet?
The 3730-M/HF is rated for 125 W input power (AES 2-hour standard) at 4 ohms nominal impedance, with 105 dB SPL sensitivity at 2.83 V / 1 m, making it efficient enough for cinema environments without excessive amplifier demands.
What are the physical dimensions and how does it mount in a screen array?
Cabinet dimensions are 852 × 762 × 360 mm (33.5 × 30 × 14.1 in), with a compact profile designed for direct mounting in cinema screen arrays. Coverage is 90° horizontal and ±30/+20° vertical when used as part of the complete system.
What transducers does this section use?
It combines a 195H 165 mm (6.5 in) midrange driver with a 38 mm voice coil and a 2414H 25 mm neodymium compression driver for high frequencies, both pre-aimed and pre-assembled for immediate integration.
What venues or applications is this designed for?
This is engineered for small-to-medium cinema and theater installations where consistent midrange and treble reproduction, compact mounting, and predictable coverage are essential. It is not intended for home listening or practice spaces.
