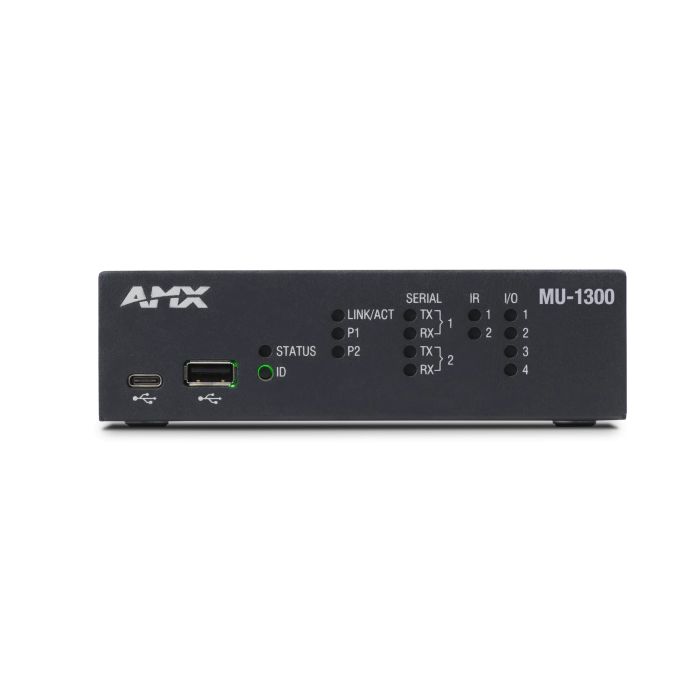

AMX MU-1300 AMX MUSE Controller with 2 Serial, 2 IR, 4 IO
Description
AMX MU-1300 AMX MUSE Controller with 2 Serial, 2 IR, 4 IO
The AMX MU-1300 is a compact 1 RU control processor built to manage complex studio automation and device synchronization workflows. Its 1/3 rack width form factor integrates efficiently into tight rack spaces while delivering robust processing power and extensive connectivity for coordinating multiple pieces of gear—from outboard audio processors and preamps to lighting rigs and video monitors. This unit bridges multiple communication protocols seamlessly, making it essential for home studios and professional facilities requiring centralized command of serial, IR, and digital I/O networks across a diverse equipment setup.
Connectivity & Control Architecture
The MU-1300 provides comprehensive multi-protocol connectivity through dual RS-232/RS-422/RS-485 serial ports, 2 dedicated IR/Serial ports, and 4 digital I/O ports, all terminated with industry-standard mini-Phoenix connectors. A 1 LAN Ethernet port and integrated FLIRC IR receiver enable remote control and network integration, while USB-A host ports support additional periphery expansion when required for growing studio setups.
Processing Power & Operational Intelligence
Built on a secure Linux platform, the processor runs 4 GB DDR3 RAM and 8 GB eMMC non-volatile storage to execute sophisticated control scripts and automation routines without sacrificing stability or security. The included status LEDs, programmable script LEDs, and per-port activity indicators provide real-time visibility into system operation and troubleshooting during setup and live session operation, helping engineers monitor gear communication at a glance.
Key Features
- 1 RS-232/RS-422/RS-485 serial port and 1 RS-232-only serial port
- 2 IR/Serial ports for flexible device control
- 4 digital I/O ports for triggering and monitoring
- 1 LAN Ethernet port for network connectivity
- FLIRC integrated IR receiver
- USB-A host ports for expanded connectivity
- 4 GB DDR3 RAM and 8 GB eMMC non-volatile memory
- Mini-Phoenix connectors for all serial, I/O, and IR connections
- 12V DC power input
- Secure Linux-based processing platform
- Status LEDs with programmable script and port activity indicators
- 1 RU, 1/3 rack width form factor (1 11/16" × 5 13/16" × 5 1/8")
The AMX MU-1300 delivers reliable, scalable control processing for studio environments demanding multi-protocol device synchronization and programmable automation in a space-efficient package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX MU-1300 is a multi-protocol control processor that automates complex studio and facility workflows by managing serial devices, IR-controlled gear, and digital triggers from a single compact unit. Recording studios and post facilities benefit from its reliable Linux platform and extensive connectivity to synchronize timecode, transport control, and device automation across your mixing console, outboard gear, and monitoring chain. It excels in sessions where you need repeatable recall and conditional logic—automating mic preamp standby, monitor routing, or talkback sequences—without manual intervention or external controllers.
Who This Is For
Great for
- ✓ installation audio
- ✓ live sound control
- ✓ AV system integration
- ✓ studio automation
Not the best pick for
- – performance
- – practice
Skill level: Professional
Frequently Asked Questions
What protocols and connection types does the MU-1300 support?
The MU-1300 offers dual RS-232/RS-422/RS-485 serial ports, 2 dedicated IR/Serial ports, 4 digital I/O ports, 1 LAN Ethernet port, an integrated FLIRC IR receiver, and USB-A host ports. All serial, I/O, and IR connections use mini-Phoenix connectors for reliable field termination.
Is the MU-1300 suitable for small installations or mobile/touring systems?
Yes. Its compact 1 RU, 1/3 rack-width form factor (1 11/16" × 5 13/16" × 5 1/8") fits efficiently into tight rack spaces and travels well in touring rigs. The secure Linux platform with 4 GB RAM and 8 GB eMMC storage handles sophisticated automation routines without compromise.
Can I monitor what the MU-1300 is doing in real time?
Yes. Status LEDs, programmable script indicators, and per-port activity lights provide real-time visibility into system operation during commissioning and live deployment, making troubleshooting straightforward.
What is the MU-1300 designed to control?
It orchestrates professional AV systems, live-sound rigs, and studio automation by bridging multiple device protocols—serial-controlled processors, IR-based equipment, networked devices, and digital trigger sources—under a single programmable control schema.
