Seymour Duncan Wes Hauch Jupiter 6 String Rail Humbucker Pickup Set
Share
- Brand new in original box
- Full Seymour Duncan manufacturer's warranty
- Free shipping in the continental US
In stock
Only 1 left
- SKU
- 11105-01
Description

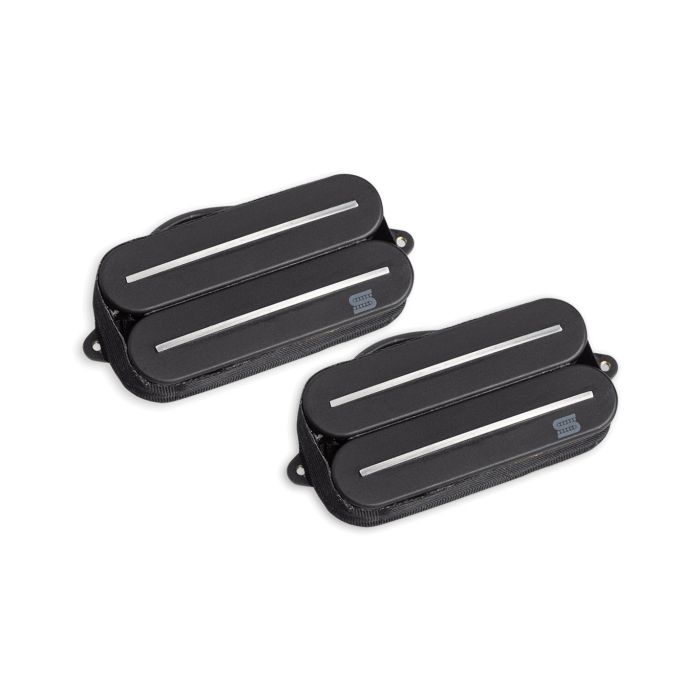

Seymour Duncan Wes Hauch Jupiter 6 String Rail Humbucker Pickup Set
The Jupiter captures aggressive, articulate output with the clarity and punch essential for modern high-gain recording and production. Designed in collaboration with Wes Hauch, these rail humbuckers maintain tight string definition even at extreme gain levels, preserving note separation and individual voice in dense mixes while delivering the aggression high-gain sessions demand.
Tone & Output Character
Built around a ceramic magnet and dual stainless-steel rail poles, the Jupiter produces a high-output design engineered for punch and presence in the studio. The bridge pickup measures 14.278K DCR with 6.52H inductance, while the neck sits at 8.022K DCR with 3.631H inductance, providing balanced aggression across both positions for tracking and layering without muddiness in the mix.
Recording Versatility & Studio Integration
Each pickup features 4-conductor wiring that enables coil-splitting capabilities for extended tonal range beyond the standard humbucker voice, expanding sonic options within a single session. All components are handmade in Santa Barbara, California to Seymour Duncan's exacting standards, ensuring consistency across recording takes and projects.
Key Features
- Dual stainless-steel rail poles with ceramic magnet
- High-output passive humbucker design
- Bridge pickup: 14.278K DCR, 6.52H inductance
- Neck pickup: 8.022K DCR, 3.631H inductance
- 4-conductor wire for coil-splitting capability
- Set of 2 pickups (neck and bridge positions)
- Handmade in Santa Barbara, California
- Passive humbucker configuration
The Jupiter set delivers modern high-gain character with the articulation and string clarity that producers and engineers rely on for professional tracking and mix-ready recordings.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Jupiter is a high-output passive humbucker set engineered to capture articulate, aggressive tones in the studio without sacrificing note separation or clarity in dense, high-gain mixes. The balanced output between bridge (14.278K DCR) and neck (8.022K DCR) positions makes tracking and layering natural, while 4-conductor wiring opens coil-splitting options for recording flexibility. Select the Jupiter if you're tracking modern heavy music and want a pickup that translates aggression and definition to the mix.
Frequently Asked Questions
What's the output difference between the bridge and neck pickups?
The bridge pickup sits at 14.278K DCR with 6.52H inductance, while the neck is 8.022K DCR with 3.631H inductance, giving the bridge more aggression and presence while keeping the neck balanced and articulate across both positions.
Can I split the coils on these pickups?
Yes, each pickup features 4-conductor wiring that enables coil-splitting, letting you access tones beyond the standard humbucker voice for extra tonal range.
Will these pickups stay tight and clear at high gain?
The dual stainless-steel rail poles with ceramic magnet are specifically engineered to maintain tight string definition and note separation even at extreme gain levels, avoiding the muddiness common in hot pickups.
What's included in this set?
The set includes two pickups: one for the neck position and one for the bridge position, both handmade in Santa Barbara, California with 4-conductor wiring.
What style of playing are these pickups designed for?
The Jupiter is built for modern high-gain playing styles that demand articulate output and string clarity, making them ideal for heavy music and working musicians who rely on definition in dense tones.
