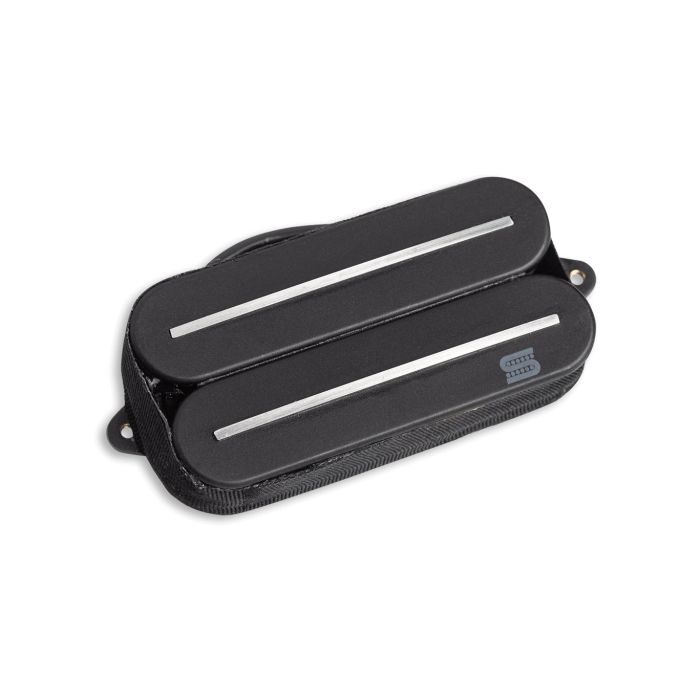

Seymour Duncan Wes Hauch Jupiter 6 String Rail Bridge Humbucker Pickup

Seymour Duncan Wes Hauch Jupiter 6-String Rail Bridge Humbucker Pickup

The Wes Hauch Jupiter captures articulate, aggressive bridge-position tone with controlled clarity across a wide frequency range. This high-output rail humbucker cuts through dense mixes without sacrificing definition, making it a reliable choice for recording modern metal, hard rock, and alternative material. Designed by Wes Hauch and handcrafted in Santa Barbara, this pickup translates both aggressive picking dynamics and nuanced palm-mute articulation into recorded tracks with clarity and impact.

Tone & Output Character

The ceramic magnet combined with high-output winding delivers powerful midrange punch and extended treble clarity that sits well in dense session mixes. At 14.278K ohms DCR with 6.52H inductance, this pickup generates substantial gain while maintaining string-to-string definition and tight low-end response—essential for modern tunings and heavy playing styles that demand recording clarity.

Design & Versatility

Built with dual stainless-steel rail poles for consistent response across the entire string width, the Jupiter handles irregular string spacing and extreme bridge geometries without magnetic dead spots. The 4-conductor wiring unlocks coil-splitting capability, expanding tonal range from thick humbucking body to single-coil snap during mixing and overdub sessions when paired with appropriate switching.

Key Features

• Dual stainless-steel rail poles
• Ceramic magnet construction
• High-output winding configuration
• 4-conductor wire for coil-splitting capability
• Bridge position humbucker design
• DCR: 14.278K ohms
• Inductance: 6.52H
• Passive pickup operation
• Handmade in Santa Barbara, California

The Jupiter combines boutique construction standards with modern high-output voicing, delivering a bridge pickup engineered for recording precision and aggressive tone capture in equal measure.
