Seymour Duncan TS-2n, Triple Shot, LP, Neck, Black

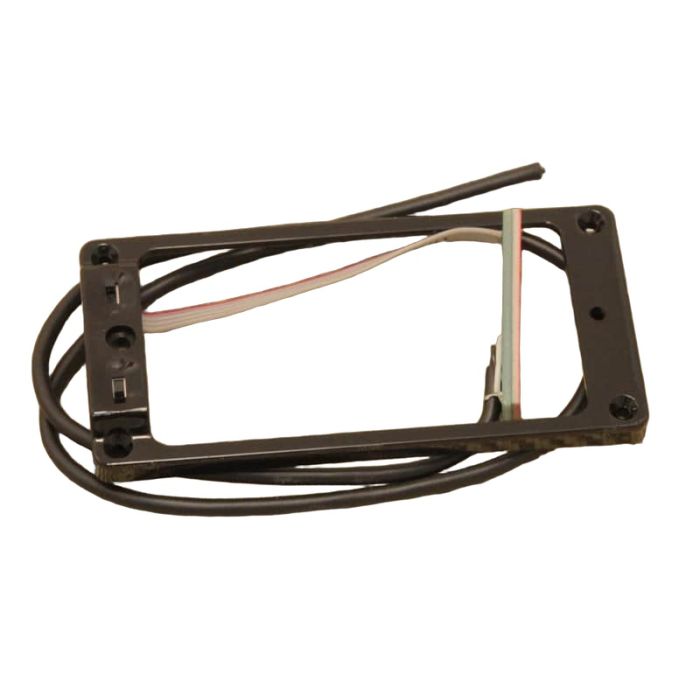

Seymour Duncan TS-2n Triple Shot Neck Pickup — Black

The Seymour Duncan TS-2n Triple Shot is a compact switching ring designed for neck positions on arched-top guitars, delivering four distinct tonal characters from a single humbucker. Its low-profile construction integrates seamlessly into Les Paul-style instruments, putting powerful tone-shaping tools directly under your fingers via two discreet slider switches positioned at the low E-string edge of the ring. In the studio, this means capturing everything from articulate single-coil snap to full humbucking warmth without resorting to pickup swaps or multiple takes.

Four Tones, One Pickup — Recording Flexibility

This ring gives you four different sounds from a single humbucker: full series operation, coil splitting to either the neck or bridge coil independently, and parallel operation. That range of textures—from tight single-coil articulation to full humbucking warmth—transforms a standard pickup into a multi-voice instrument without any modification to the guitar's body or headstock. Layer clean tones with split coils for transparency in the mix, then flip to series mode for body and presence. Record once, shape infinitely.

Installation & Compatibility

The TS-2n mounts directly to arched-top guitars and works with nearly any four-conductor humbucker; its 43.5-degree soundboard radius matches Les Paul contours perfectly. Color-coded solder pads simplify installation, and the compact trim ring (3.20 × 1.513 inches on center) maintains the guitar's aesthetic while staying clear of typical hardware. No routing, no permanent alterations—your tracking guitar remains unchanged.

Key Features

• Four switching modes: series, parallel, and split to either coil
• Two small slider switches mounted at low E-string edge of ring
• Compatible with nearly any humbucker pickup featuring four-conductor cable
• Designed for arched-top guitars including Gibson Les Paul and similar models
• Exterior dimensions: 3.54 × 1.78 inches
• Interior dimensions: 2.780 × 1.470 inches
• Soundboard radius: 43.5 degrees for LP-style tops
• Trim ring mounting hole spacing: 3.20 × 1.513 inches on center
• Pickup mounting hole spacing: 3.076 inches on center
• Ring height: 0.200 inches; switch casing height: 0.328 inches
• Color-coded solder pads for wiring
• Neck position installation

The TS-2n delivers studio-grade tonal variety in a format that respects your guitar's original character, making it an intelligent choice for producers and engineers who demand flexibility without compromise.
