Seymour Duncan TBPR-1b P-Rails Org Trmbkr Bridge Cream Pickup
Share
- Brand new in original box
- Full Seymour Duncan manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- 11304-02-Cr
Description

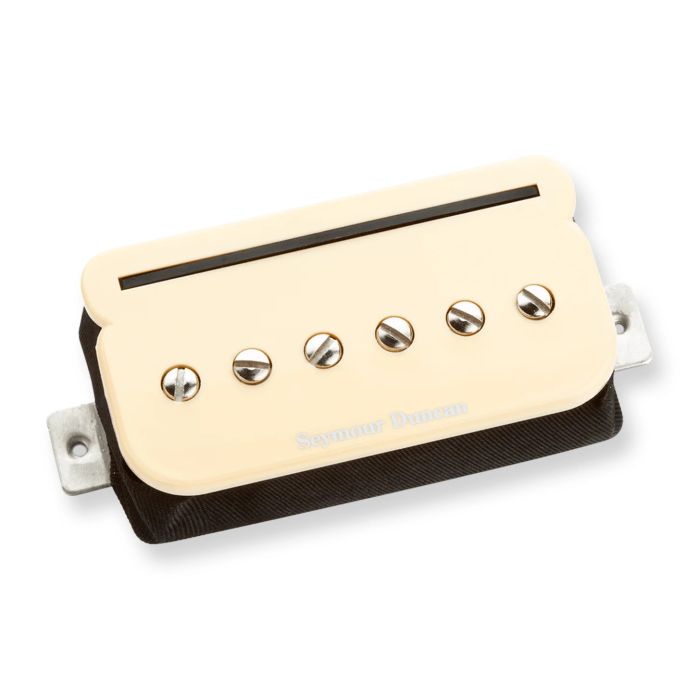

Seymour Duncan TBPR-1b P-Rails Org Trembucker Bridge Cream Pickup
The TBPR-1b captures exceptional tonal range from a single bridge position, delivering humbucker, P-90, and single-coil rail voicings through intelligent switching. This Trembucker-spaced design suits guitars with wider string spacing at the bridge, letting you access thick, articulate humbucking tones for dense layers, bright focused single-coil character for cut and definition, and everything between—all without multiple pickups cluttering your signal chain.
Design & Construction
Hand-built in Santa Barbara, California, this pickup uses a pair of Alnico 5 bar magnets and vacuum wax potting to eliminate microphonic feedback while preserving the clarity and sustain your recordings need. The 4-conductor lead wire enables complete wiring flexibility, allowing you to implement all switching options for maximum tonal access during tracking and mixing.
Tone & Functionality
The P-Rails design integrates three distinct pickup voices in one unit—traditional humbucker warmth for body and cohesion, P-90 aggression for punch and presence, and single-coil articulation for definition and snap—activated via a 3-way on-off-on mini-switch. The Trembucker pole spacing of approximately 2.070 inches ensures proper magnetic alignment on guitars with string spacing greater than 2 inches at the bridge, maintaining balanced response across all strings for consistent tracking across multiple takes.
Key Features
- Alnico 5 bar magnets (pair) for warm, full-bodied tone
- Trembucker f-spaced design with 2.070" pole spacing
- Three-in-one configuration: humbucker, P-90, and single-coil rail pickup
- Vacuum wax potted for squeal-free, noise-resistant operation
- 4-conductor lead wire for full switching versatility
- Hand-built in Santa Barbara, California
- Requires 3-way on-off-on mini-switch for full functionality
- Suits guitars with bridge string spacing greater than 2 inches
- Cream finish for aesthetic consistency with vintage builds
The TBPR-1b consolidates the sonic flexibility of multi-pickup systems into a single bridge installation, giving you serious tonal range for session work without the complexity or rewiring overhead.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The TBPR-1b is a three-voice bridge pickup—humbucker, P-90, and single-coil rail—that lets you dial in warm, full-bodied tones or bright articulate character without patching in different gear. Hand-built with Alnico 5 magnets and vacuum wax potting for low noise and clarity, it's ideal for tracking hard rock, metal, and progressive sessions where you need tonal flexibility locked into one position. Pick this for home and professional studios where bridge string spacing exceeds 2 inches and you want to cut tracking time by eliminating pickup swaps.
Who This Is For
Great for
- ✓ Hard Rock
- ✓ Metal
- ✓ Progressive
- ✓ Studio Sessions
- ✓ Gigging
Not the best pick for
- – Jazz
- – Traditional Country
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What string spacing does this pickup require?
The TBPR-1b is a Trembucker (f-spaced) design with approximately 2.070-inch pole spacing, suited for guitars with bridge string spacing greater than 2 inches. If your guitar has standard (closer) string spacing, a standard-spaced P-Rails model would be the correct choice.
How do I access all three tones?
The pickup comes with a 4-conductor lead wire that enables full wiring flexibility. You'll need to install a 3-way on-off-on mini-switch to toggle between humbucker, P-90, and single-coil rail voices; the switch is not included.
What genres is this pickup best suited for?
It's designed for hard rock, metal, and progressive music, where its articulate humbucking warmth and bright single-coil character excel. It is not recommended for jazz or traditional country applications.
Will this pickup have microphonic feedback?
No. The TBPR-1b uses vacuum wax potting and Alnico 5 bar magnets to eliminate microphonic feedback while preserving clarity and sustain, making it suitable for high-gain and studio tracking.
What is the difference between this and the Seymour Duncan SH-4 JB?
The TBPR-1b offers three switching voices in a single pickup, whereas the SH-4 JB is a traditional single-voice humbucker. The P-Rails gives you more tonal range from one bridge position, while the JB provides a fixed, classic hot humbucker character.
