Is this pickup right for metal or high-gain genres?

No—this pickup is optimized for blues, rock, and classic rock. Its warm midrange and controlled sustain prioritize articulation over aggression, making it less suitable for metal, djent, or thrash metal applications.

What does F-spaced and Trembucker design mean?

F-spaced pole configuration aligns the magnetic poles to match Fender tremolo guitar string spacing (wider than standard Gibson spacing), ensuring optimal magnetic coupling across all six strings on Strats and similar instruments.

What output level does this pickup have?

The TB-PG1B produces 8.34k ohms of output—enough presence and clarity for lead work without the mud that heavier magnets introduce, delivering balanced volume relative to vintage-style humbuckers.

Does this come with wiring options?

Yes, it ships with a four-conductor lead wire, which enables coil-splitting capability for added tonal flexibility beyond standard humbucker operation.

Where is this pickup made and how is it constructed?

Hand-built in Santa Barbara, CA, the TB-PG1B features vacuum wax potted construction to minimize microphonic feedback while preserving natural resonance, and uses a nickel silver bottom plate for durability and tone.

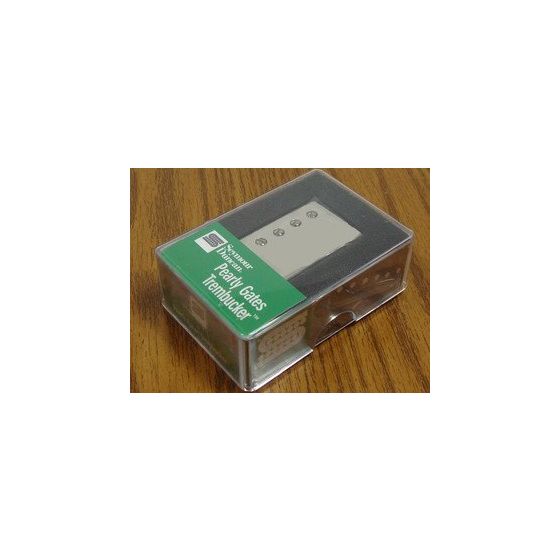

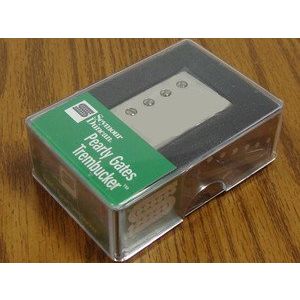

Seymour Duncan TB-PG1B Trembucker Pearly Gates Pickup Nickel Cover

The TB-PG1B Trembucker Pearly Gates captures the warm, articulate character that defined classic blues and rock recordings. This bridge-position humbucker pairs a midrange-forward response with controlled sustain, cutting through a mix with clarity while sitting naturally behind a vocal or lead guitar—equally effective in a converted single-coil Strat or a modern tremolo-equipped tracking guitar that demands authentic output without unnecessary edge.

Recording Tone & Output Characteristics

Built around an Alnico 2 bar magnet, this pickup generates 8.34k ohms of output—enough definition and presence for isolated lead tracks without the muddiness that heavier magnets introduce during overdubs or dense sessions. The vacuum wax potted construction eliminates microphonic feedback during high-gain recording scenarios while preserving the natural resonance that engineers value in vintage-style bridge humbuckers.

Design & Engineering

The F-spaced pole configuration aligns with Fender tremolo spacing, ensuring consistent magnetic coupling across all six strings during recording. Each pickup is hand-built in Santa Barbara, CA using nickel silver bottom plate construction, and ships with a four-conductor lead wire for flexible wiring options including coil-splitting capability—valuable for expanding tonal range across multiple tracking sessions.

Key Features

Bridge-position humbucker with Trembucker design
F-spaced pole spacing for Fender tremolo guitars
Alnico 2 bar magnet for warm, balanced tone
8.34k ohms output
Nickel silver bottom plate
Four-conductor lead wire included
Vacuum wax potted construction
Hand-built in Santa Barbara, CA
Nickel cover finish

A purpose-built bridge pickup engineered to capture refined articulation and mix-friendly sustain in the studio.

Condition	New
Country of Manufacture	United States
