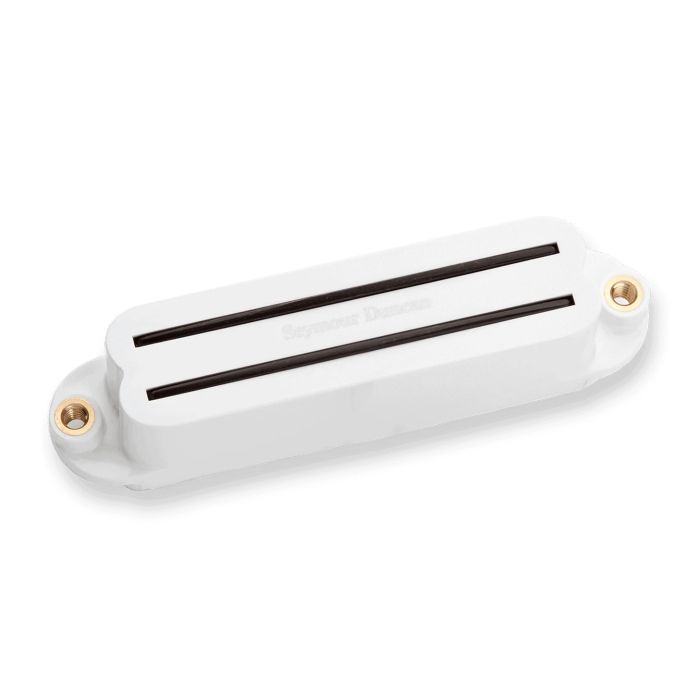

Seymour Duncan SHR-1n Hot Rails for Strat White Pickup

Seymour Duncan SHR-1n Hot Rails for Strat White Pickup

The Seymour Duncan SHR-1n Hot Rails captures aggressive, high-output clarity in a single-coil footprint, making it an essential neck pickup for home studios and session work that demands modern articulation without routing modifications. This dual-rail humbucker slots seamlessly into standard single-coil routes, delivering immediate tonal authority across rock, metal, and fusion recording applications.

Tone & Output Character

At 10.8 kΩ DC resistance, the Hot Rails produces significantly hotter output than traditional single coils, with a resonant peak at 4.8 KHz that emphasizes articulate midrange definition and sits forward in dense mixes. The ceramic magnet and tuned EQ voicing (Bass: 5 / Midrange: 7 / Treble: 4) create a focused, punchy character ideal for layered lead recordings and thick rhythm tracking.

Recording Setup & Construction

This pickup installs as a true drop-in replacement for any standard Strat neck position, complete with a four-conductor hookup cable for flexible routing and coil-tap options in the studio. Wax potted construction eliminates microphonic squeal during high-gain overdubs and direct tracking, while hand-built craftsmanship in Santa Barbara, CA ensures consistent performance session to session.

Key Features

• High-output, single-coil-sized humbucker for Strat neck position
• Dual-rail design with ceramic bar magnet
• DC Resistance: 10.8 kΩ
• Resonant Peak: 4.8 KHz
• EQ tuning: 5 Bass / 7 Midrange / 4 Treble
• Four-conductor hookup cable included
• Wax potted for squeal-free operation
• Drop-in fit for standard single-coil pickup routes
• Hand built in Santa Barbara, California

The SHR-1n delivers the aggression and clarity of a true humbucker without requiring routing or body modification, making it an efficient studio upgrade for producers demanding serious output and definition from their neck position.
