Seymour Duncan Pickup Booster Mini Pedal
- Brand new in original box
- Full Seymour Duncan manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- 11900-020
Description

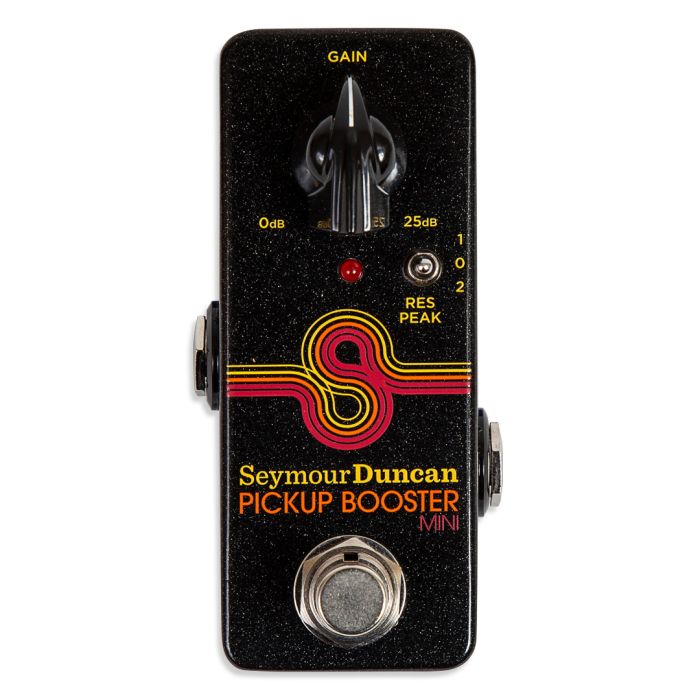

Seymour Duncan Pickup Booster Mini Pedal
The Seymour Duncan Pickup Booster Mini is a compact, Class A discrete boost engineered to add clean gain and reshape pickup character without sonic coloration. Its diminutive footprint integrates seamlessly into compact pedalboards, while the pickup resonance switch allows you to voice single-coil pickups to behave like vintage or high-output humbuckers—expanding your tonal palette across multiple recordings and sessions.
Design & Build Quality
Measuring just 1.52" × 3.65" × 2.125", this mini pedal occupies minimal real estate on tracking rigs and live setups alike. The true bypass circuit preserves your original signal integrity when bypassed, while the 9 to 18V regulated DC adapter (center negative) operates at minimal current draw—only 4.5mA at 9V when the LED is on—making it compatible with standard multi-pedal power supplies.
Audio Performance
The fully discrete Class A circuit delivers up to 25 dB of gain with negligible distortion at < 0.02% at 200mV RMS output and a noise floor of -120 dBV (referred to input at maximum gain). Extended frequency response from 30 Hz to 38 kHz (-3dB) captures the complete harmonic spectrum of your pickups, preserving definition and sustain across the mix.
Key Features
- Fully discrete, Class A circuit topology
- Gain range: 0 to 25 dB
- True bypass switching
- Pickup Resonance Switch—voice single coils as vintage humbucker ("1") or high-output humbucker ("2")
- Frequency response: -3dB at 30 Hz and 38 kHz
- Distortion: < 0.02% at 200mV RMS output
- Noise floor: -120 dBV (referred to input at 25dB gain)
- Input impedance: 250K Ohms (effect on)
- Output impedance: 150 Ohms
- Power: 9 to 18V regulated DC adapter (center negative)
- Current consumption: 4.5mA @ 9V LED on; 3mA @ 9V LED off
- Compact dimensions: 1.52" × 3.65" × 2.125"
The Pickup Booster Mini delivers transparent gain and tonal shaping in a format that occupies minimal board space without sacrificing recording or tracking capability.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Pickup Booster Mini is a transparent, ultra-low-noise gain stage designed to add clean headroom and optional pickup voicing to any recording chain without phase shift or tonal artifacts. Its discrete Class A topology, -120 dBV noise floor, and sub-0.02% distortion make it an honest signal conditioner for studio tracking and mixing, while the Pickup Resonance Switch gives you studio-friendly control over single-coil character. Choose it to add transparent gain to vocals, guitars, or line-level sources in home and professional sessions.
Who This Is For
| Best suited for | Studio Sessions, Live Performance, Gigging, Home Recording |
|---|---|
| Tonal character | Transparent gain, minimal coloration, clean headroom, low noise floor, full frequency response |
| Skill level | Beginner / Intermediate / Advanced / Professional |
Frequently Asked Questions
What is the Pickup Resonance Switch, and how does it affect my tone?
The Pickup Resonance Switch voices single-coil pickups with two voicing options: position '1' shapes them to sound like a vintage humbucker, and position '2' voices them as a high-output humbucker. This tonal shaping is completely transparent and adds no additional coloration or noise.
Will this pedal fit on a crowded pedalboard?
Yes. At just 1.52" × 3.65" × 2.125", the Pickup Booster Mini is one of the most compact boost pedals available and draws only 4.5mA @ 9V, so it integrates easily into tight rigs without power-supply strain.
How much gain does it offer, and how transparent is it?
The pedal delivers up to 25 dB of gain with distortion measured at less than 0.02% at 200mV RMS output and a noise floor of -120 dBV, ensuring your signal remains clean and uncolored even at full gain.
What power options does it support?
The Pickup Booster Mini runs on a regulated 9 to 18V DC adapter with center-negative polarity, giving you flexibility to power it from most pedalboard supplies or a dedicated wall adapter.
Can I use this pedal for non-guitar sources?
Yes. Its transparent gain, low noise floor, and full frequency response (30 Hz to 38 kHz) make it suitable for any line-level source in studio or live settings, including vocals, keyboards, and bass.
