Seymour Duncan Pickgrd Assy, Dave Murray, White Pickup

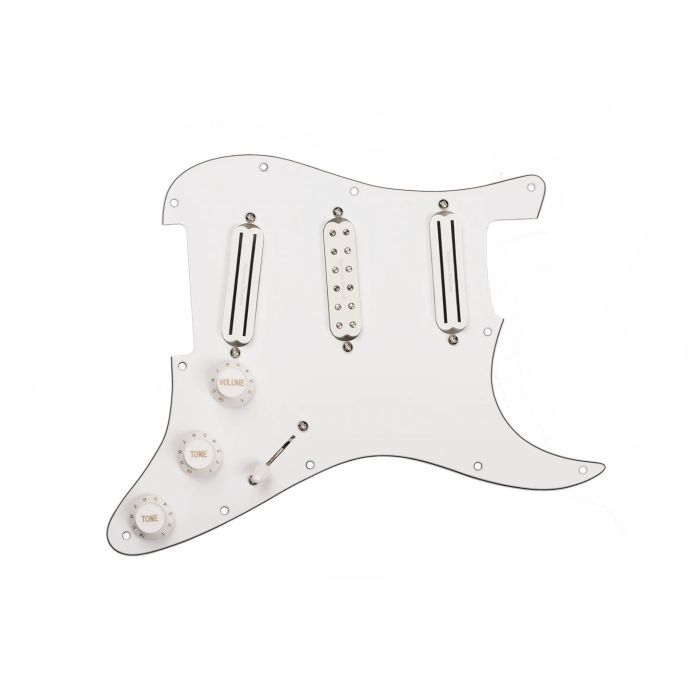

Seymour Duncan Pickguard Assembly, Dave Murray, White Pickup

This Dave Murray signature pickguard assembly delivers articulate, high-output tone ideal for capturing aggressive rhythm and soaring lead work in the studio. The combination of Hot Rails pickups with a JB Jr. middle position provides articulate highs, punchy mids, and controlled low-end suitable for both classic rock and modern high-gain applications. A direct drop-in solution for most Strats, this assembly eliminates wiring variables while maintaining professional-grade audio characteristics for consistent tracking and layering.

Pickup Configuration & Recording Performance

The assembly pairs Hot Rails pickups in both neck and bridge positions with a JB Jr. middle pickup, delivering three distinct tonal palettes across the 5-way switch for flexible session tracking. Hot Rails offer higher output and tighter articulation than vintage single-coils, translating to definition in dense mixes, while the JB Jr. provides a balanced midrange character that bridges neck and bridge positions seamlessly for blended textures. Small ceramic magnets and vacuum wax potting ensure stable, noise-free performance even under high-gain settings—critical for clean recording chains and overdub sessions.

Construction & Studio Integration

Hand-built in Santa Barbara by Seymour Duncan, this assembly uses quality Bourns volume and tone potentiometers and features 4-conductor splittable lead wire for coil-splitting flexibility in the studio. The 11-screw USA pickguard pattern fits virtually all post-1964 Stratocaster models without modification, and the white finish provides classic aesthetic contrast.

Key Features

• Neck Hot Rails pickup with 10.8 kΩ DC resistance
• Bridge Hot Rails pickup with 16.9 kΩ DC resistance
• JB Jr. middle pickup with 9.6 kΩ DC resistance
• 5-way pickup selector switch
• Bourns volume and tone potentiometers
• Small ceramic magnets
• Vacuum wax potted construction
• 4-conductor splittable lead wire for coil-splitting capability
• 11-screw USA pickguard mounting pattern
• White pickguard finish
• Hand-built in Santa Barbara, California
• Compatible with most post-1964 Stratocaster models

This assembly combines professional-grade components with proven signature-model design, enabling immediate sonic authority for tracking and mixing without the need for individual pickup sourcing or complex wiring work.
