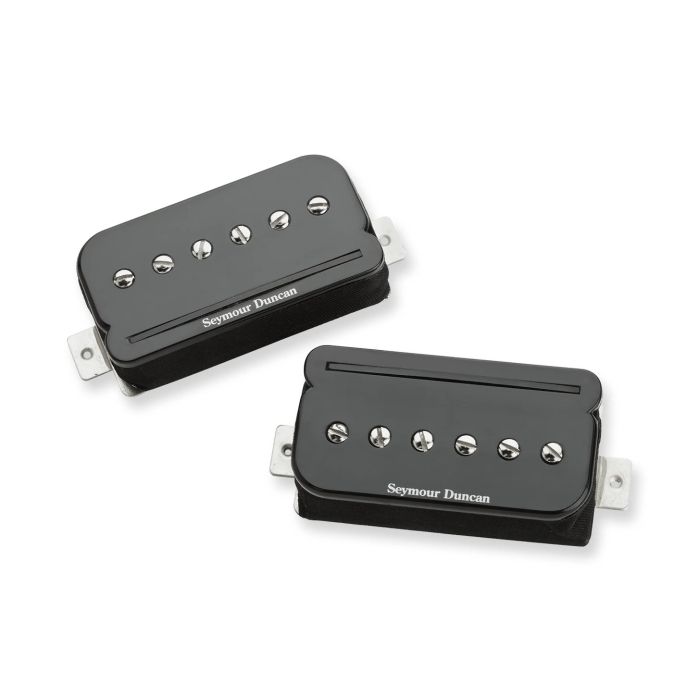

Seymour Duncan P-Rails with LP Triple Shot Set, Black Pickup

Seymour Duncan P-Rails with LP Triple Shot Set, Black Pickup

The Seymour Duncan P-Rails system delivers remarkable versatility in a single pickup package, enabling 24 unique tonal combinations accessible through a standard 3-way toggle switch—without rewiring or breakout boxes. Hand-built in Santa Barbara, California, this pre-wired set transforms a Les Paul's sonic palette and session flexibility. The arched LP Triple Shot mounting rings integrate seamlessly into existing cavities while providing the switching architecture that modern producers and engineers need for tracking diverse styles and overdubs in the same session.

Recording Versatility & Tonal Range

Each pickup position offers three distinct voicings: traditional humbucking warmth for smooth, mid-forward recordings; classic P-90 grit for aggressive rhythm tracks; and articulate single-coil rails for cutting, defined leads. The neck pickup features RWRP (reverse wind, reverse polarity) configuration to eliminate hum when both pickups are engaged—critical for clean studio takes. Specific DC resistance values optimize each mode—ranging from 5.60KΩ on the neck rails to 18.80KΩ on the bridge humbucker—allowing you to dial in focus and presence at each frequency range for tight mix integration.

Build & Studio Reliability

Alnico 5 bar magnets and vacuum wax potting ensure consistent, microphonic-free performance across long tracking sessions. The 4-conductor leadwire configuration supports the switching system, while the black finish integrates cleanly with most Les Paul aesthetics. Both bridge and neck pickups ship as a complete, pre-wired assembly ready for direct installation into compatible instruments, minimizing downtime between takes.

Key Features

• Hand-built in Santa Barbara, CA
• LP (arched) Triple Shot mounting rings with 2-position switches
• 24 unique tonal combinations with standard 3-way toggle switch
• Pair of Alnico 5 bar magnets
• Vacuum wax potted for squeal-free operation
• Neck pickup RWRP (reverse wind, reverse polarity)
• 4-conductor leadwire
• Neck humbucking: 12.87KΩ DC Resistance, 4.6KHz resonant peak
• Neck P-90: 7.25KΩ, 3.6KHz resonant peak
• Neck Rails: 5.60KΩ, 7.0KHz resonant peak
• Bridge humbucking: 18.80KΩ, 3.0KHz resonant peak
• Pre-wired set with bridge and neck pickups included

This system combines Seymour Duncan's legendary build quality with genuine switching innovation, letting you track multiple song ideas and overdub variations from a single pickup pair without a single soldering gun in sight.
