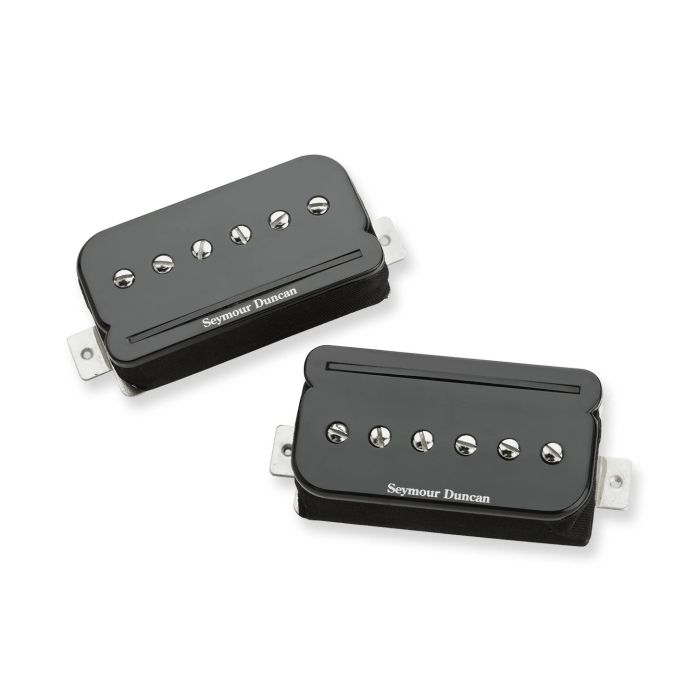

Seymour Duncan P-Rails with Flat Triple Shot Set, Black Pickup

Seymour Duncan P-Rails with Flat Triple Shot Set, Black Pickup

The P-Rails system delivers unprecedented tonal flexibility by stacking three distinct pickup voicings in a single footprint. This black finish set arrives with the flat Triple Shot mounting ring configuration, engineered specifically for super-Strat layouts that require two switches to access all 24 tonal combinations. Hand-built in Santa Barbara using Alnico 5 magnets and vacuum wax potting, these pickups provide articulate, squeal-free performance across humbucking, P-90, and rails modes—critical for capturing clean takes without unwanted artifacts in tracking and overdubs.

Tonal Versatility & Switching Configuration

The included Triple Shot mounting ring system in flat configuration unlocks access to 24 different tonal options by combining three distinct pickup modes—humbucking for thick, warm output ideal for rhythm tracking; P-90 for punchy midrange character that cuts through dense mixes; and rails for bright, articulate high-end response suited to lead work and detail-heavy production. The neck pickup is RWRP (reverse wind, reverse polarity), enabling series/parallel operation and hum-canceling configurations when paired with the bridge pickup—essential for maintaining a noise floor during extended recording sessions.

Electrical Performance & Construction

Neck and bridge pickups deliver medium output across all three modes, with DC resistance ranging from 5.60 kOhm (rails) to 18.80 kOhm (bridge humbucking). Resonant peaks are precisely tuned per mode—the neck peaks at 4.6 kHz (humbucking), 3.6 kHz (P-90), and 7.0 kHz (rails), while the bridge peaks at 3.0 kHz (humbucking), 3.1 kHz (P-90), and 6.0 kHz (rails). This tonal shaping supports transparent tracking across different session styles without requiring post-processing intervention. Vacuum wax potting eliminates microphonic feedback during sensitive recording passes, and the 4-conductor leadwire supports series, parallel, and split configurations for fine-grained sonic adjustment in your tracking workflow.

Key Features

• Neck DC Resistance: 12.87 kOhm (Humbucking mode), 7.25 kOhm (P-90 mode), 5.60 kOhm (Rails mode)
• Bridge DC Resistance: 18.80 kOhm (Humbucking mode), 10.20 kOhm (P-90 mode), 8.56 kOhm (Rails mode)
• Alnico 5 bar magnets with vacuum wax potting for squeal-free operation
• Neck pickup RWRP (reverse wind, reverse polarity) configuration
• 4-conductor leadwire supports series, parallel, and split wiring options
• Includes SHPR-1 P-Rails set and TS-1 Triple Shot Mounting Ring System (flat configuration)
• Access to 24 different tonal combinations via dual-switch operation
• Medium output level across all three pickup modes
• Neck resonant peaks: 4.6 kHz (Humbucking), 3.6 kHz (P-90), 7.0 kHz (Rails)
• Bridge resonant peaks: 3.0 kHz (Humbucking), 3.1 kHz (P-90), 6.0 kHz (Rails)
• Hand-built in Santa Barbara, California
• Black finish with flat Triple Shot ring configuration for super-Strat compatibility

The P-Rails system represents a mature approach to multi-mode pickup design, offering genuine sonic range without requiring routing or major modifications to a standard super-Strat platform—ideal for producers seeking instrument versatility across multiple session applications and production styles.
