What is the DC resistance and how does split/full mode affect the tone?

The STK-T3B delivers 9k ohms in split mode and 18k ohms in full mode. Split mode offers subtle enhancement, while full mode delivers more aggressive lead tones; the 4-conductor lead wire allows you to choose either configuration depending on your amp and playing style.

Is this pickup suitable for metal or djent?

No. The STK-T3B is optimized for blues, rock, country, and lead guitar work with a mid-forward, articulate character. Its design prioritizes clarity and dynamic response over the high-output, compressed voicing preferred in metal and djent genres.

What makes this a good fit for Telecasters specifically?

It is designed for the Telecaster bridge position and bridges the gap between traditional Tele brightness and modern versatility. The compact humbucker format fits standard bridge cavities while delivering single-coil articulation with humbucker output and feedback rejection.

What are the key construction details?

Hand-built in Santa Barbara, it features an Alnico V magnet, wax potting for squeal-free operation, and a 4-conductor lead wire. The 7.5 kHz resonant peak and EQ voicing (6 Bass / 4 Mid / 4 Treble) emphasize articulation and cut while maintaining balanced treble extension.

Which players and tones would benefit most from this pickup?

Intermediate to professional players focused on lead work, blues, rock, and country will find this pickup excels at delivering clarity and definition without excessive sizzle. Its extended dynamic response and natural breakup at moderate volumes reward both vintage-minded players and modern lead guitarists.

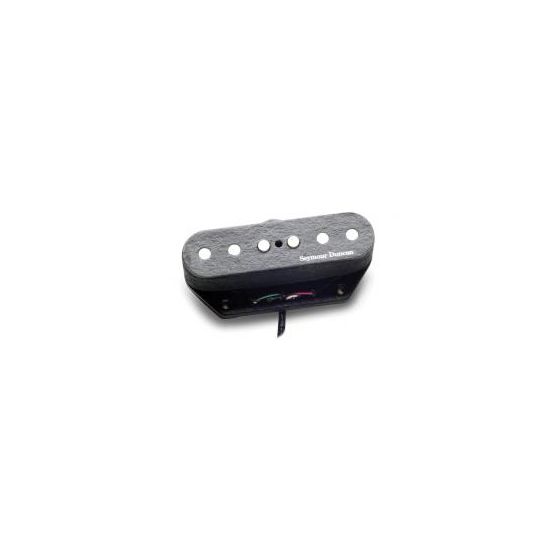

Seymour Duncan Humbucker STK-T3B Vintage Lead Stack For Tele

The STK-T3B Vintage Lead Stack captures a focused, articulate single-coil character in a compact humbucker format designed specifically for Telecaster bridge positions. This stack pickup bridges the gap between traditional Tele brightness and modern versatility, recording with clarity and definition while maintaining strong output and presence in the mix.

Tone & Frequency Response

A 7.5 kHz resonant peak positions this pickup in the upper-midrange sweet spot, emphasizing articulation and cut while maintaining balanced treble extension. The EQ voicing (6 Bass / 4 Mid / 4 Treble) leans toward mid-forward character—ideal for lead work and single-note passages that cut through dense arrangements without excessive sizzle or mud, sitting prominently in your session mix.

Construction & Output

Hand-built in Santa Barbara, this pickup features an Alnico V magnet for extended dynamic response and natural breakup at moderate recording levels. Wax potting eliminates microphonic feedback during tracking, while the split/full configuration delivers 9k ohms in split mode and 18k ohms in full mode—giving your productions flexibility to dial in anything from subtle enhancement to aggressive lead tones within the same session.

Key Features

DC Resistance: 9k / 18k ohms (split/full)
Resonant Peak: 7.5 kHz
Magnet Type: Alnico V
EQ Voicing: 6 Bass / 4 Mid / 4 Treble
Connector: 4-conductor lead wire
Wax potted for squeal-free operation
Hand built in Santa Barbara, CA
Designed for Telecaster bridge position

The STK-T3B combines Seymour Duncan's meticulous craftsmanship with a proven stack design that tracks clean, records with authority, and delivers the clarity and articulation your sessions demand.

Condition	New
Country of Manufacture	United States
