What genres and playing styles is this pickup best suited for?

The ASB-6B is purpose-built for metal, djent, hard rock, and progressive styles where articulate note separation and controlled sustain are critical. It is not recommended for jazz, blues, or folk applications.

Is this pickup a direct replacement for my existing bridge pickup?

The ASB-6B serves as a direct replacement for Bartolini P2 systems and includes all mounting and wiring hardware needed for installation. It features two-conductor wiring and a soapbar form factor designed for 6-string instruments.

How long does the battery last, and what type does it use?

The onboard preamp runs on standard 9V battery power, providing approximately 1,000 continuous hours of operation per battery set—roughly 40–60 days of regular playing before replacement.

What makes the tone of this pickup different from passive options?

The active preamp ensures consistent output and headroom while the 6.8 kHz resonant peak, ceramic bar magnet, and 8/4/7 EQ tuning (Bass/Mid/Treble) create an aggressive, articulate character with tight lows and refined treble response—qualities that define modern high-gain voicing.

What skill level do I need to install this pickup?

Installation is straightforward for intermediate to advanced players; the included hardware and two-conductor wiring simplify the retrofit process, though soldering and basic electronics knowledge are helpful.

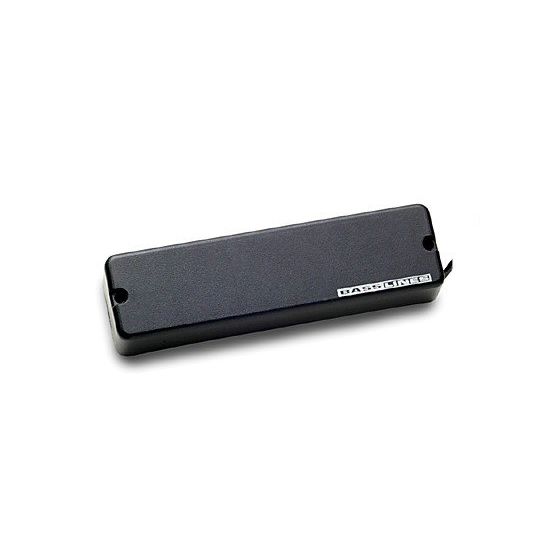

Seymour Duncan ASB-6B Active Soapbar 6-String Bridge Pickup

The ASB-6B delivers articulate, punchy output with the clarity demanded by modern active electronics. This soapbar-format bridge pickup combines a ceramic bar magnet with onboard preamp circuitry to achieve tight low-end definition and aggressive treble response. Purpose-built for capturing refined note separation and controlled sustain in bridge position applications across a wide range of studio and performance contexts.

Tone & Electronics

The 6.8 kHz resonant peak emphasizes articulation in the critical upper-midrange, ideal for sitting clearly in dense mixes without sacrificing note definition. The EQ tuning of 8 bass / 4 mid / 7 treble shapes an aggressive, defined character that translates well across high-gain recording sessions and modern production styles. An onboard preamp driven by standard 9V battery power ensures consistent output and headroom for tracking, with approximately 1,000 continuous hours per battery set—sufficient for extended studio sessions between changes.

Design & Specifications

The internal split-blade design optimizes string-to-magnet coupling for six-string instruments, ensuring balanced response across all strings during recording. The ceramic bar magnet construction delivers the harmonic character expected from active Seymour Duncan electronics, translating to predictable on-tape performance. Two-conductor wiring simplifies installation, and the included mounting and wiring hardware streamlines the retrofit process—this pickup serves as a direct replacement for Bartolini P2 systems, minimizing session downtime.

Key Features

Ceramic Bar magnet construction
6.8 kHz resonant peak (bridge position)
Active preamp with 8/4/7 EQ (Bass/Mid/Treble)
Approximately 1,000 continuous hours battery life per set
Internal split-blade design
Two-conductor cable
Direct replacement for Bartolini P2
Includes mounting and wiring hardware
Soapbar form factor for 6-string instruments

The ASB-6B combines proven active-electronics reliability with articulate voicing and straightforward installation, making it an efficient choice for upgrading existing bridge-position systems in the studio or live rig.

Condition	New
Country of Manufacture	United States
