What is included in the box?

The AHB-1N comes with complete mounting hardware, potentiometers, output jack, battery clip, and a three-conductor shielded cable for noise rejection.

How long does the 9-volt battery last?

The pickup consumes only 350 micro-amperes and delivers approximately 1420 hours of battery life, making it efficient for extended touring and session work.

Is this pickup suitable for jazz or blues?

No, the AHB-1N is optimized for metal, hard rock, progressive, and high-gain studio work; its aggressive character and active preamp design are not intended for jazz or blues applications.

What does the three-band EQ control?

The independent Bass, Mid, and Treble controls allow you to shape the frequency response surgically; the preamp provides 16 dB of gain with a 2.60V maximum output and reaches a noise floor of -97dBV for clarity in dense mixes.

Will this fit my guitar's humbucker cavity?

Yes, the compact footprint integrates seamlessly into standard humbucker cavities, and the nickel cover provides classic aesthetics alongside straightforward installation.

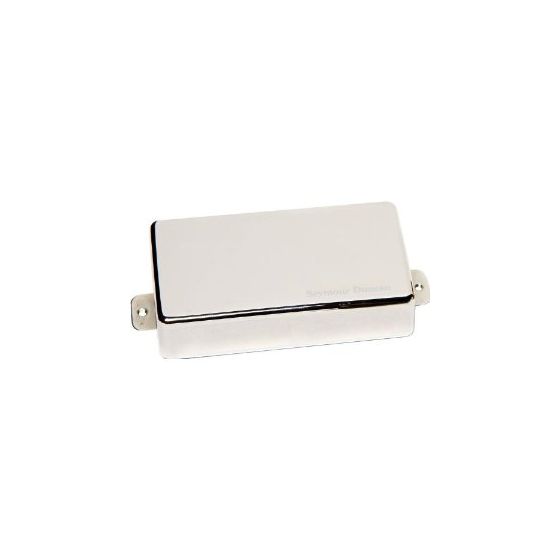

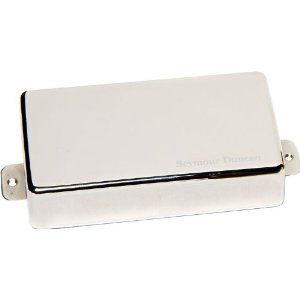

Seymour Duncan AHB-1N Original Blackouts Neck Pickup Nickel Cover

The AHB-1N Original Blackouts is an active humbucker engineered to capture articulate, controlled recordings with minimal noise—a neck pickup that preserves definition and string separation in high-gain tracking without sacrificing the aggressive character active electronics deliver. Built with a discrete hybrid differential preamp topology and Alnico V bar magnet, this pickup excels in studio sessions where tight, defined tone layers are essential. The nickel cover provides classic aesthetics while the compact footprint integrates seamlessly into standard humbucker cavities.

Active Electronics & Tone Shaping for Mix Control

The 9-volt active preamp operates with exceptional efficiency—consuming only 350 micro-amperes for 1420 hours of battery life—while maintaining a noise floor of -97dBV and minimal distortion at .003% THD @ 1V. The three-band EQ (Bass: 6, Mid: 5, Treble: 8) enables surgical shaping of frequency response during tracking and overdubs, with the 16 dB preamp gain providing substantial output headroom that reaches 2.60 Volts RMS maximum for clean signal delivery into your audio interface or mixer.

Specifications & Studio Integration

This neck model features a 750 Hz resonant frequency optimized for balanced mid-range articulation that sits well in dense mixes, and 1K Ohm output impedance that maintains signal integrity into standard audio interfaces and recording preamps. Installation is straightforward with included mounting hardware, potentiometers, output jack, and battery clip, plus a three-conductor shielded cable for noise rejection in professional recording environments.

Key Features

9-volt active humbucker design
Discrete hybrid differential FET input preamp
Alnico V bar magnet
750 Hz resonant frequency
16 dB preamp gain with 2.60V maximum output
Noise floor: -97dBV
.003% THD @ 1V
350 micro-amperes current consumption / 1420-hour battery life
Three-band EQ with independent Bass, Mid, and Treble controls
1K Ohm output impedance
Three-conductor shielded cable included
Nickel cover with complete mounting hardware and battery clip

The AHB-1N delivers the controlled dynamics and noise rejection that define the Original Blackouts line, making it an essential choice for engineers and producers demanding active tonal refinement and session flexibility without compromise.

Condition	New
Country of Manufacture	United States
