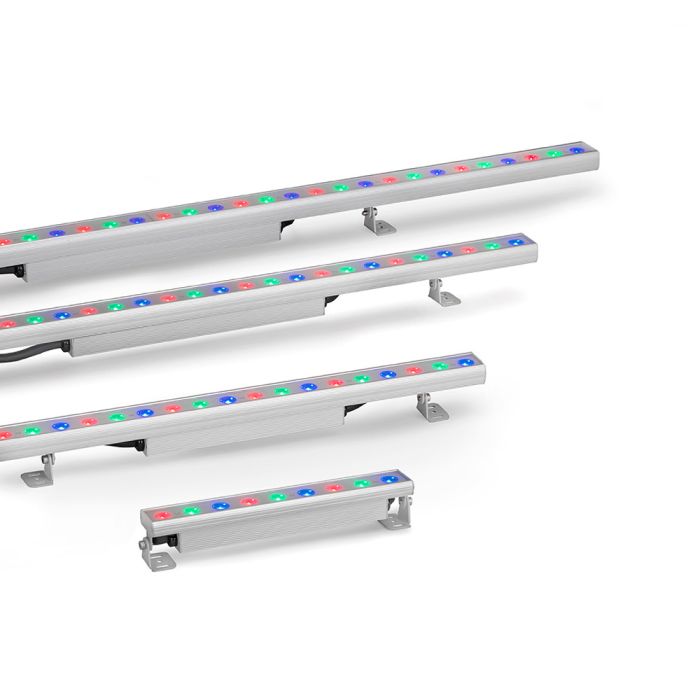

Martin RUSH CS900 Wide RGB Color Mixing Linear Wash
In stock
- SKU
- 90480195
Description
Martin RUSH CS900 Wide RGB Color Mixing Linear Wash
The RUSH CS900 Wide is a compact, high-output linear LED wash fixture engineered for studio and venue lighting design. At 903 mm in length with a 124° beam angle, this unit delivers consistent, wide-coverage illumination across cycs, walls, and set pieces. The fixture's slim profile and lightweight construction (1.5 kg) make it straightforward to position and integrate into tight studio spaces where traditional lighting falls short.
Light Output & Color Control
Powered by Cree XP-E2 RGB LEDs, the CS900 Wide produces 1326 lumens with a rated minimum lifetime of 50,000 hours (to >70% luminous output). The fixture offers six color temperature presets—2800 K, 3200 K, 4000 K, 5600 K, and 7200 K—plus Off mode, allowing precise control over ambient warmth and intensity across 0–100% for consistent on-camera and on-set color rendition.
Control & Networked Integration
The CS900 Wide accepts DMX512/1990 control via 5-pin XLR connectors and supports RDM (ANSI E1.20) for remote device management and troubleshooting during production. Power and data arrive through a hybrid 6-pin custom connector system, streamlining cable management in complex multi-fixture setups. The fixture accepts universal AC input (100–240 V, 50/60 Hz) and can be mounted in any orientation with included brackets.
Key Features
- Length: 903 mm (35.6 in.); Width: 46 mm (1.8 in.); Height with bracket: 57 mm (2.2 in.)
- Weight: 1.5 kg (3.3 lbs.)
- Light source: Cree XP-E2 RGB LEDs; 124° beam angle
- Output: 1326 lumen
- LED lifetime: Minimum 50,000 hours to >70% luminous output
- Housing: Aluminum with clear anodized finish (white optional); frosted polycarbonate lens
- Ingress protection: IP20; RoHS compliant
- Control: DMX (3 or 6 channels), RDM; USITT DMX512/1990 and ANSI E1.20 compliant
- Color temperature presets: Off, 2800 K, 3200 K, 4000 K, 5600 K, 7200 K
- Intensity control: 0–100%
- Mains input: C13 IEC 60320; DMX in/out: 5-pin XLR; Power/data: 6-pin custom connectors
- AC power: 100–240 V nominal, 50/60 Hz; DC output: 36 V, 12 A maximum; Maximum consumption: 485 W
The RUSH CS900 Wide delivers professional-grade color mixing and output in a compact linear format, making it an essential choice for studios, production facilities, and mobile rigs requiring flexible, networked LED wash lighting for video, photography, and live recording.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin RUSH CS900 Wide is a professional linear RGB LED wash fixture built for architectural and ambient lighting in studio-adjacent applications like broadcast, virtual production, and live-stream set design. It offers precise color temperature control across six presets (2800 K to 7200 K) with 1326 lumens output and a 50,000-hour LED lifetime, making it a dependable choice for long-form recording sessions and complex multi-camera setups requiring consistent, flicker-free backlighting or cove illumination.
Frequently Asked Questions
What control options does the CS900 Wide support?
The fixture accepts DMX512/1990 control via 5-pin XLR connectors and supports RDM (ANSI E1.20) for remote device management. You can configure it in 3 or 6 DMX channels depending on your control needs.
How bright is the CS900 Wide and how long will the LEDs last?
It produces 1326 lumens with Cree XP-E2 RGB LEDs rated for a minimum of 50,000 hours to >70% luminous output, making it suitable for long-term installations.
What are the dimensions and weight?
The fixture measures 903 mm long, 46 mm wide, and 57 mm tall with bracket; it weighs only 1.5 kg, allowing easy positioning and mounting in tight spaces without structural reinforcement.
What color temperature options are available?
The CS900 Wide offers six color temperature presets—2800 K, 3200 K, 4000 K, 5600 K, 7200 K, and Off—with full intensity control from 0–100% for fine-tuned ambient control.
Can this fixture work with standard AC power worldwide?
Yes, it accepts universal AC input from 100–240 V at 50/60 Hz, making it compatible with standard electrical systems in most venues and studios globally.
