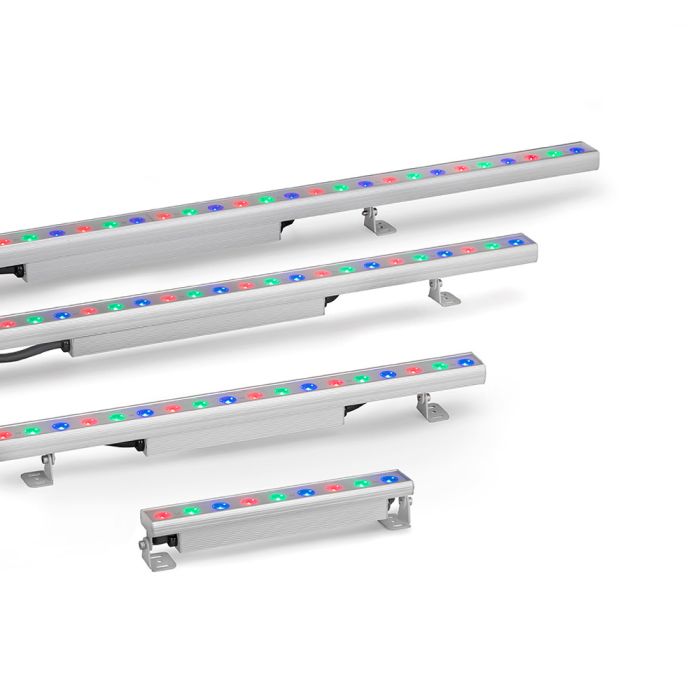

Martin RUSH CS1200 Graze RGB Color Mixing Linear Wash
In stock
- SKU
- 90480200
Description
Martin RUSH CS1200 Graze RGB Color Mixing Linear Wash
The Martin RUSH CS1200 Graze is a high-output LED linear wash fixture designed for seamless integration into studio environments, set lighting rigs, and color-critical installations. At 1203 mm (47.4 inches) in length, this fixture delivers consistent RGB color mixing across its full beam while maintaining a compact profile that fits cleanly into studio cove spaces and lighting trusses. The low-profile design—just 65 mm (2.6 inches) tall with bracket—installs without visual obstruction, making it ideal for overhead wash rigs and architectural setups where space is at a premium.
Optical Performance & Control
The Cree XP-E2 RGB LEDs produce an 18° × 65° beam angle optimized for linear wash applications, with 50,000-hour minimum LED lifetime maintaining >70% luminous output across extended production schedules. Control is flexible: choose between DMX or RDM protocols across 3 or 6 DMX channels, with six color temperature presets (Off, 2800 K, 3200 K, 4000 K, 5600 K, 7200 K) and full 0–100% intensity adjustment for precise color and brightness tuning in any production context or post-production lighting scenario.
Installation & Power Specifications
The hybrid power and data connector system uses a single 6-pin custom cable for both power and DMX, streamlining rig setup and reducing cable runs in studio installations. Up to 10 meters of fixtures can run from a single Power Supply Unit (sold separately), with each foot consuming 12 W ±1 W for efficient power budgeting in compact studio setups. The unit accepts standard 100–240 V nominal AC input (50/60 Hz) and operates safely across a wide ambient temperature range of -30° C to +40° C, making it reliable whether deployed in climate-controlled studios or variable shooting environments.
Key Features
- Length: 1203 mm (47.4 in.); Height with bracket: 65 mm (2.6 in.); Weight: 2.5 kg (5.5 lbs.)
- Light source: Cree XP-E2 RGB LEDs with 50,000-hour minimum lifetime (>70% output)
- Beam angle: 18° × 65° optimized for linear wash applications
- RGB color mixing with six color temperature presets: Off, 2800 K, 3200 K, 4000 K, 5600 K, 7200 K
- Intensity control: 0–100% with smooth dimming
- Control: DMX or RDM; selectable 3 or 6 DMX channels; USITT DMX512/1990 and ANSI E1.20 RDM compliant
- Connectivity: C13 IEC 60320 mains input; 5-pin XLR DMX in/out; 6-pin custom connectors for fixture power and data
- Power consumption: 12 W per foot ±1 W; 485 W maximum system draw; 36 V DC output from power supply
- Housing: Clear anodized aluminum (standard) or white (optional); frosted polycarbonate lens; IP20 ingress protection
- Operating temperature range: -30° C to +40° C; maximum surface temperature: 55° C
- RoHS compliant; supports up to 10 meters per single Power Supply Unit
- Hybrid power/data cable system reduces wiring and installation costs
The RUSH CS1200 Graze combines compact form factor, reliable LED performance, and DMX/RDM control to deliver professional color-mixing illumination for studio productions, live recording setups, and multi-camera video work.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin RUSH CS1200 Graze is a professional-grade linear RGB LED wash fixture engineered for color-accurate architectural and accent lighting in studio environments, control rooms, and broadcast facilities. Its Cree XP-E2 LEDs deliver 50,000-hour runtime with consistent RGB mixing and six selectable color temperature presets (2800 K to 7200 K), allowing precise tuning of ambient light to match studio session requirements. The compact 2.6-inch profile and DMX/RDM control make it ideal for integrating into cove installations while maintaining full remote dimming and color adjustment during recording and live broadcast work.
Frequently Asked Questions
What control protocols does the CS1200 Graze support?
The fixture supports both DMX and RDM protocols with selectable 3 or 6 DMX channels, following USITT DMX512/1990 and ANSI E1.20 RDM standards. This allows flexible integration into most professional lighting control systems.
How much power does this fixture consume and what's the maximum run length?
Each foot consumes 12 W ±1 W, with a maximum system draw of 485 W. Up to 10 meters of fixtures can be powered from a single Power Supply Unit (sold separately).
What color temperature options are available?
The fixture includes six selectable color temperature presets: Off, 2800 K, 3200 K, 4000 K, 5600 K, and 7200 K, with full 0–100% intensity adjustment for precise tuning to any interior aesthetic.
How long will the LEDs last and what is the minimum output after extended use?
The Cree XP-E2 RGB LEDs are rated for a minimum 50,000-hour lifetime while maintaining greater than 70% of original luminous output, ensuring reliable long-term performance in permanent installations.
What is the physical footprint and does it fit standard architectural coves?
At 1203 mm (47.4 inches) long and just 65 mm (2.6 inches) tall with bracket, the fixture is designed to integrate seamlessly into standard architectural cove spaces without visual obstruction.
