Martin P3 PowerPort 500 IP Install
Description

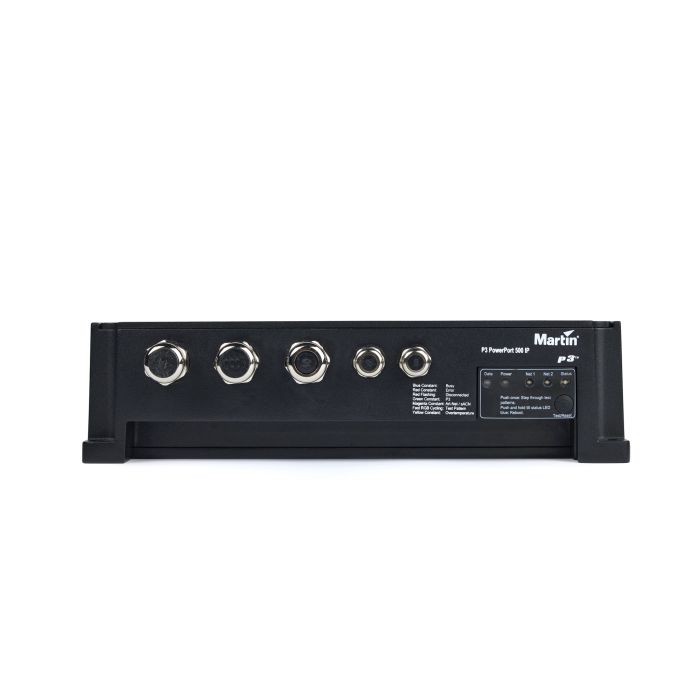

Martin P3 PowerPort 500 IP Install
The Martin P3 PowerPort 500 IP Install is a professional-grade network distribution node engineered for outdoor lighting control installations. This rugged unit delivers reliable Art-Net and sACN protocol conversion in environments where weather resistance and network redundancy are non-negotiable.
Network Architecture & Protocol Support
This node supports Art-Net 1, 2, 3, and 4 compliance including RDM, alongside sACN and Martin's proprietary P3 control protocol. Triple Ethernet transceiver configuration—100/1000Mbit IN and THRU ports, 100Mbit OUT—enables flexible daisy-chaining and network topology options without single points of failure.
Environmental Durability & Power Management
IP66 rating certifies this unit for permanent outdoor installation, handling spray and dust exposure across temperature extremes. The 100-277V AC auto-ranging power supply with dual M20×1.5 cable glands accepts standard industrial connectors; typical heat dissipation runs 1705 BTU/hr under full load with connected fixtures.
Key Features
- Art-Net 1, 2, 3, and 4 compliance with RDM support
- sACN and Martin P3 protocol compatibility
- 100-277V AC nominal input, 50/60 Hz with electronic switch mode power supply
- Ethernet IN: 100/1000Mbit; Ethernet THRU: 100/1000Mbit; Ethernet OUT: 100Mbit
- IP66 environmental rating for permanent outdoor use
- 2x M20×1.5 power cable glands (8-13mm); 2x M12×1.5 Ethernet cable glands (5-8mm); 1x M20×1.5 DC/network output gland (6.5-10.5mm)
- Status indication: 1x Power Out (Green), 1x Ethernet Out (Amber), 2x Ethernet In/Thru (Green + Amber), 1x Device Status (RGB)
- 1705 BTU/hr typical heat dissipation including connected fixtures
The P3 PowerPort 500 IP combines industrial-grade weather sealing with enterprise-level protocol flexibility, making it the standard choice for mission-critical outdoor lighting networks.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin P3 PowerPort 500 IP Install is a professional network distribution node designed for studio and remote session lighting control where weather resistance and protocol flexibility matter. It handles Art-Net, sACN, and Martin P3 protocols with triple Ethernet ports and industrial-grade power management, ideal for location recording, broadcast, and hybrid studio-to-outdoor workflows. Select it when your session setup requires mission-critical network reliability, multi-protocol support, and the ability to scale lighting control across distributed environments.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Studio Sessions
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What protocols does the P3 PowerPort 500 IP support?
It supports Art-Net 1, 2, 3, and 4 with RDM, sACN, and Martin's proprietary P3 control protocol. Triple Ethernet transceivers (100/1000Mbit IN and THRU, 100Mbit OUT) allow flexible daisy-chaining and network redundancy without single points of failure.
Is this unit suitable for permanent outdoor installation?
Yes. The IP66 environmental rating certifies it for permanent outdoor use, handling spray and dust exposure across temperature extremes. Power input ranges 100–277V AC, 50/60 Hz with dual M20×1.5 cable glands for standard industrial connectors.
What is the power and heat output?
The unit features a 100–277V AC auto-ranging electronic switch mode power supply. Typical heat dissipation runs 1705 BTU/hr under full load with connected fixtures.
What cable connectors does it use?
The P3 PowerPort 500 IP includes 2x M20×1.5 power cable glands (8–13mm), 2x M12×1.5 Ethernet cable glands (5–8mm), and 1x M20×1.5 DC/network output gland (6.5–10.5mm) for flexible field installation.
