Martin P3 PowerPort 1000 Outdoor Power & Data Unit
Description

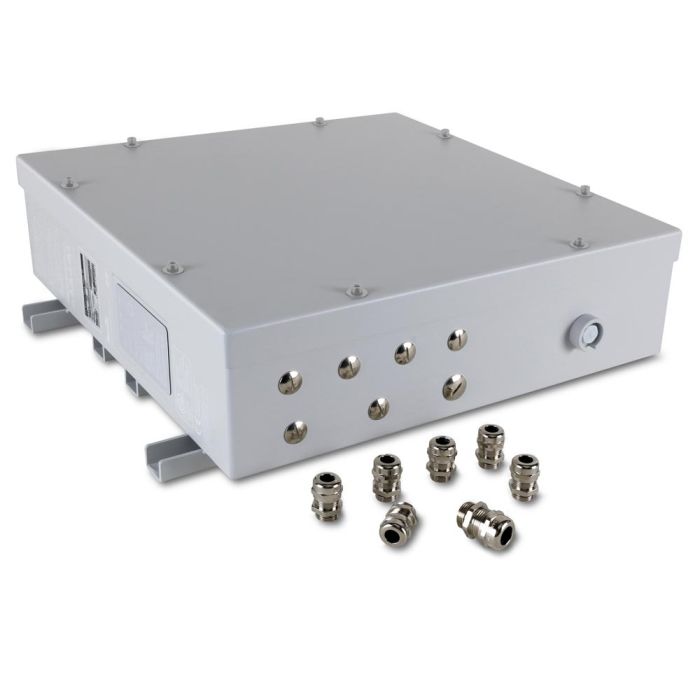

Martin P3 PowerPort 1000 IP Outdoor Power & Data Unit
The P3 PowerPort 1000 IP is a compact integrated power supply and data processor built to drive Martin's fixed-installation creative LED video systems in studio and outdoor production environments. Its small footprint—426 mm × 483 mm × 146 mm, weighing just 8 kg—fits seamlessly into permanent setups without compromising processing capability. Engineered for reliable operation across extreme temperature ranges, this unit delivers stable power and high-speed video data simultaneously to your LED installations, making it ideal for both controlled studio deployments and challenging field conditions.
Power Delivery & Connectivity
The unit accepts AC input from 120–277 V nominal at 50/60 Hz through an auto-ranging electronic switch-mode supply, with typical total power consumption of 1000 W and four outputs rated at maximum 5 amps per output (20 amps combined). Connectivity includes M20 cable gland power input with internal screw terminals, two M16 RJ45 connectors for P3 data in/out, and four M16 cable glands combining power and data output—all engineered for straightforward integration into permanent installations, reducing setup time and cable management complexity during production.
Environmental Performance & Thermal Management
A full outdoor rating ensures reliable operation across -30°C to 55°C, with convection cooling providing 345 BTU/hr heat dissipation to maintain stable performance under sustained LED loads. Idle-state power consumption of just 22 W, combined with the unit's thermal design, makes it efficient for continuous operation in 24/7 production scenarios where thermal stability and power efficiency directly impact your session workflow.
Key Features
- Integrated power supply and data processor for Martin creative LED video products
- AC input: 120–277 V nominal, 50/60 Hz with auto-ranging electronic switch-mode supply
- Typical total power consumption: 1000 W
- Four power outputs, maximum 5 amps per output (20 amps combined total)
- Idle state power consumption: 22 W
- Operating temperature range: -30°C to 55°C
- Full outdoor environmental rating
- M20 power input cable gland with internal screw terminals
- Two M16 RJ45 connectors for P3 data in/out
- Four M16 cable glands for combined power and data output
- Convection cooling with 345 BTU/hr heat dissipation
- Compact dimensions: 426 × 483 × 146 mm; Weight: 8 kg (17.7 lbs)
The P3 PowerPort 1000 IP combines straightforward configuration with professional-grade reliability, making it an essential component for permanent Martin LED installations requiring simultaneous power and high-speed data delivery in demanding studio and outdoor production environments.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin P3 PowerPort 1000 IP is a professional-grade integrated power supply and data processor designed to support Martin creative LED video systems in fixed studio or permanent installation setups. It provides stable 1000 W power delivery with synchronized high-speed data transmission, idle consumption as low as 22 W, and full outdoor environmental rating for flexible placement. Studio and installation engineers choose it for seamless integration into complex video workflows where power stability and data integrity directly impact session and production reliability.
Frequently Asked Questions
What power inputs and outputs does the P3 PowerPort 1000 IP have?
The unit accepts AC input from 120–277 V nominal at 50/60 Hz through an auto-ranging switch-mode supply. It provides four power outputs, each rated at maximum 5 amps, for a combined total of 20 amps. Two M16 RJ45 connectors handle P3 data in/out, while four M16 cable glands combine power and data output for integrated installations.
Can the P3 PowerPort 1000 IP operate outdoors in extreme weather?
Yes. The unit has a full outdoor environmental rating and operates reliably across -30°C to 55°C with convection cooling delivering 345 BTU/hr of heat dissipation, making it suitable for sustained 24/7 outdoor deployments.
What is the typical power consumption and idle draw?
Typical total power consumption is 1000 W under load, while idle-state power consumption is just 22 W, making it efficient for always-on installations that need to minimize energy draw during low-activity periods.
What are the physical dimensions and weight?
The unit measures 426 mm × 483 mm × 146 mm and weighs 8 kg (17.7 lbs), allowing flexible placement indoors or outdoors without occupying excessive space.
What Martin products is the P3 PowerPort 1000 IP designed to support?
The unit is built as an integrated power supply and data processor for Martin's fixed-installation creative LED video systems, delivering synchronized power and high-speed video data to drive demanding LED installations.
