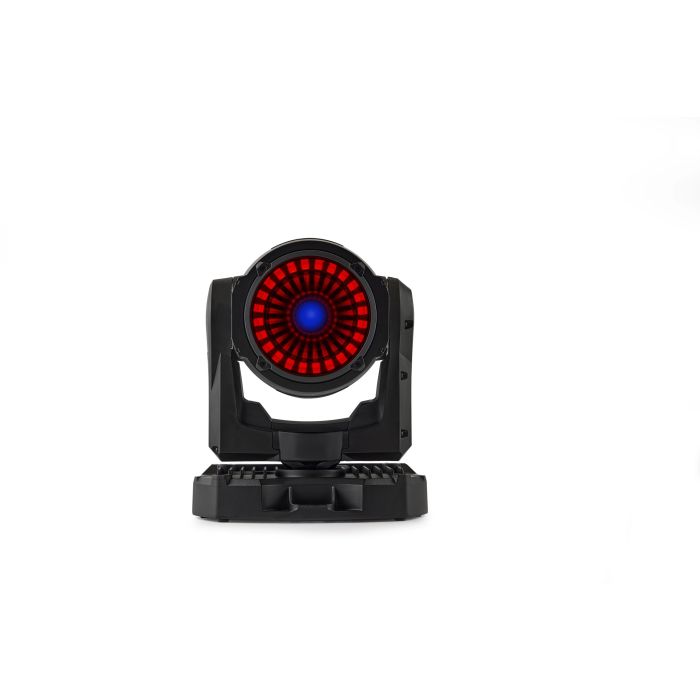

Martin MAC One Beam in dual SiP

Martin MAC One in Dual SiP

The MAC One is a compact moving head fixture engineered for precision color mixing and beam control in studio and remote recording environments. Its lightweight frame and intuitive control scheme enable quick adjustments during production setup, while the dual SiP LED engine delivers saturated color output with minimal heat generation—critical for close-proximity studio work where thermal load affects both talent comfort and ambient temperature in the tracking room. This fixture bridges the gap between entry-level and mid-range production lighting, serving broadcast, streaming, and studio applications where footprint, power efficiency, and thermal management directly impact session workflow.

Light Output & Optical Performance

The 120 W RGBL LED engine produces 2,500 lumens with a narrow beam intensity of 375,000 candela, delivering precise fill and key light coverage for talent and instrument isolation in mid-sized rooms and booth setups. The 4–27° zoom range adapts to different studio configurations—from tight accent lighting on vocal booths to broader washes for ensemble recording—without repositioning or external optics changes.

Control & System Integration

Full control compatibility spans DMX, Art-Net, sACN, and Martin P3 protocols, allowing integration into existing studio lighting rigs or standalone wireless operation for fast scene recall during multi-take sessions. The 23 dB(A) noise level in theater and broadcast mode keeps fan noise inaudible during recording, protecting clean audio capture and eliminating the need for post-isolation or re-takes due to ambient gear noise.

Key Features

• 120 W RGBL LED engine with dual SiP configuration
• 2,500 lm output with 375,000 cd narrow beam intensity
• Zoom range 4–27°
• Color temperature range 2,000–12,850 K calibrated
• 24 RGB effect LEDs within lens for backlight wash
• 6 W backlight LED power with >50,000 hour lifetime (>70% output)
• DMX, Art-Net, sACN, and Martin P3 control protocols
• 23 dB(A) noise level in theater and broadcast mode
• Weight 4.4 kg / 9.7 lbs
• Dimensions 254 × 297 × 220 mm (10.00 × 11.69 × 8.66 in.)

The MAC One delivers reliable color saturation and silent operation across studio productions and remote recording sessions without the footprint or thermal output of larger fixtures.
