Martin MAC Aura Raven XIP in EPS
Description
Martin MAC Aura Raven XIP in EPS

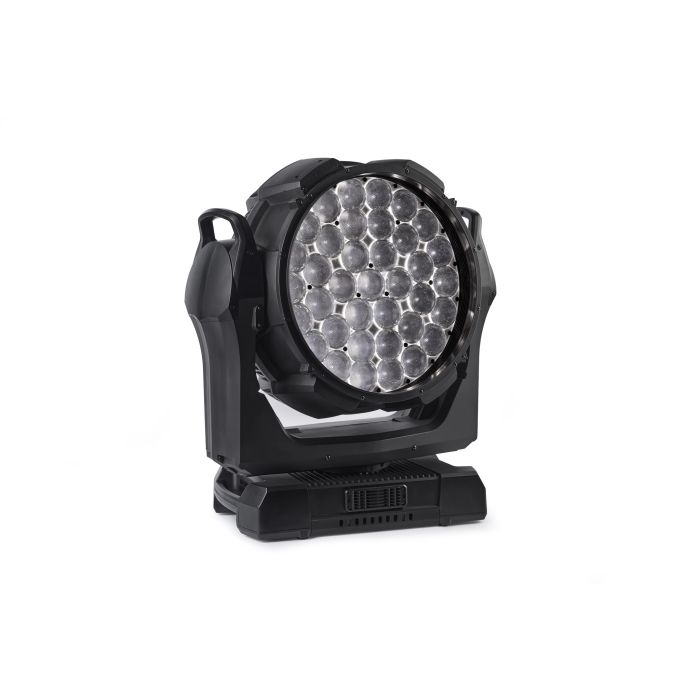

The Martin MAC Aura Raven XIP is a compact yet powerful moving head that delivers exceptional visual output without demanding the footprint or power budget of larger fixtures. Its dual-engine design—combining a high-intensity beam engine with an independent RGB aura backlight system—creates dimensional lighting textures that enhance projection mapping, set design reinforcement, and dynamic stage atmospherics, while remaining practical for mid-scale touring and permanent venue installations.
Output & Optical Performance
The 27,000-lumen beam engine maintains brightness consistency across a 6 to 51-degree zoom range, allowing tight spot-to-wash transitions without fixture swaps. The 70-watt aura LED engine drives 234 individual RGB LEDs across the backlight, layering color and texture into the main beam—a critical advantage for creating depth in complex lighting designs and multi-fixture compositions.
Control & Integration
Native support for DMX, Art-Net, sACN, and Martin P3 protocols integrates seamlessly into both traditional wired control chains and networked lighting systems. The IP54 weatherproof rating and 50,000-hour LED lifetime ensure reliable operation across extended touring schedules and outdoor venue deployments, while dual 1/4-turn omega bracket points plus M12 threaded mounting accommodate diverse rigging scenarios without compromise.
Key Features
- 27,000 lumens peak output from beam LED engine
- 6 to 51-degree motorized zoom range
- 830W beam LED engine power; 70W aura LED engine power
- RGBL (Red, Green, Blue, Lime) LED type for expanded color space
- 234 individual RGB aura backlight LEDs
- 50,000+ hour LED lifetime to 70% luminous output
- IP54 weatherproof rating for indoor/outdoor use
- 3,478 BTU/hr thermal dissipation capacity
- 343mm front lens diameter
- DMX, Art-Net, sACN, and Martin P3 protocol support
- Dual omega bracket mounting plus M12 threaded rigging point
The Raven XIP balances output density with operational flexibility, making it a versatile fixture for productions requiring both raw brightness and sophisticated color layering.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin MAC Aura Raven XIP is a powerful moving head fixture built for live production and installation environments, not suited for home-studio recording work. Its 27,000-lumen output, dual RGB aura engine, and flexible zoom range deliver the intensity and visual separation needed for stage and festival productions, while native Art-Net and sACN support integrate easily into networked control systems. With 50,000-hour LED life and IP54 weatherproofing, this is a touring-grade fixture engineered for permanence and creative resilience.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Festival Production
- ✓ Permanent Installation
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What is the zoom range and beam spread?
The Raven XIP features a motorized 6 to 51-degree zoom range, allowing tight spot work at narrow angles and broad coverage at wider settings without requiring fixture swaps. This versatility reduces the number of different fixtures needed in a rig.
How does the aura LED engine work with the main beam?
The dual-engine design combines an 830W beam LED engine with an independent 70-watt RGB aura backlight system of 234 individual LEDs. The aura engine creates dimensional color separation and texture that enriches the beam itself, adding visual depth that larger single-engine fixtures struggle to match.
What control protocols does it support?
The Raven XIP natively supports DMX, Art-Net, sACN, and Martin P3 protocols, ensuring seamless integration into traditional wired rigs, networked systems, and mixed control ecosystems.
Is this fixture suitable for outdoor use?
Yes. The IP54 weatherproof rating and 3,478 BTU/hr thermal dissipation capacity enable reliable outdoor deployment. Combined with a 50,000+ hour LED lifetime and dual rigging points, this fixture is built for touring productions and permanent outdoor installations.
What mounting options are available?
The fixture includes dual 1/4-turn omega bracket mounting points plus an M12 threaded rigging point, providing flexible and secure mounting for truss, floor stands, and permanent installation hardware.
