What does the pixel control system do, and how is it different from a standard moving light?

The MAC Aura PXL SIP features 19 individually controlled pixels in the main beam and 141 pixels in the Aura backlight, allowing you to create graphics, chases, and layered color effects across the fixture itself—something conventional LED or beam fixtures cannot do. Each pixel can be addressed independently via DMX, RDM, or video protocol, enabling real-time animation and content mapping.

What venues and throw distances is this fixture suited for?

With 940,000 candela intensity and a 6° to 59° motorized zoom, the MAC Aura PXL SIP excels at mid-to-long throws in theaters, concert tours, and larger venues. Its compact footprint makes it ideal for tight rigging spaces where you need powerful output without a large form factor.

What control protocols and systems does it support?

The fixture supports DMX, RDM, Art-Net, sACN, and Martin P3 video protocol, integrating seamlessly into modern lighting control ecosystems and enabling direct video content mapping when using compatible controllers.

How bright is it, and what is the power consumption?

It delivers 10,500 lumens of RGBW output with 25.4 lumens-per-watt efficacy and draws 560 W of power, making it efficient for venues concerned with electrical load and cooling.

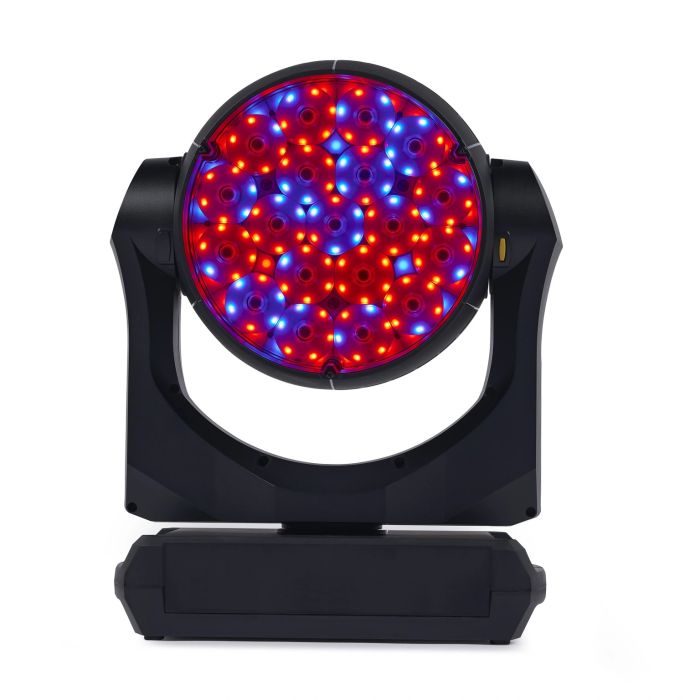

Martin MAC Aura PXL SIP

The MAC Aura PXL SIP is a compact yet powerful LED moving light engineered for studios and production facilities that demand precise pixel control with punchy output in a tight footprint. Its thoughtfully engineered form factor balances portability with professional-grade light intensity, making it equally at home in a small studio setup or as a key player in a larger multi-camera or hybrid production environment.

Optical Performance & Light Output

This fixture delivers 10,500 lumens of RGBW output with an exceptional high narrow intensity of 940,000 candela, ensuring crisp, penetrating light across mid-to-long throws for consistent on-camera appearance and keying accuracy. The 6° to 59° motorized zoom range provides flexibility from tight spotlighting to wider wash coverage without repositioning the unit, streamlining session setup and tear-down.

Pixel Control & Connectivity

The MAC Aura PXL SIP features 19 individually controlled main beam pixels and 141 Aura backlight pixels, enabling intricate lighting graphics, color chases, and dynamic effects for sophisticated production aesthetics. Full compatibility with DMX, RDM, Art-Net, sACN, and Martin P3 video protocol integrates seamlessly into any modern lighting control ecosystem and playback software workflow.

Key Features

10,500 lumens RGBW light output with 940,000 cd high narrow intensity
19 individually controlled main beam pixels for precision graphics
141 Aura backlight pixels for layered color and effect options
6° to 59° motorized zoom range
DMX, RDM, Art-Net, sACN, and Martin P3 video protocol support
560 W power consumption with 25.4 lm/W efficacy
High-impact flame-retardant thermoplastic construction with IP20 rating
Width: 385–410 mm; Height: 489–544 mm; Depth: 216 mm
RGBW color mixing system

The MAC Aura PXL SIP combines powerful output, intelligent pixel control, and compact design to deliver professional results in studios where space efficiency and visual consistency both matter.
