Martin Exterior Projection Pro Compact Grey
Description

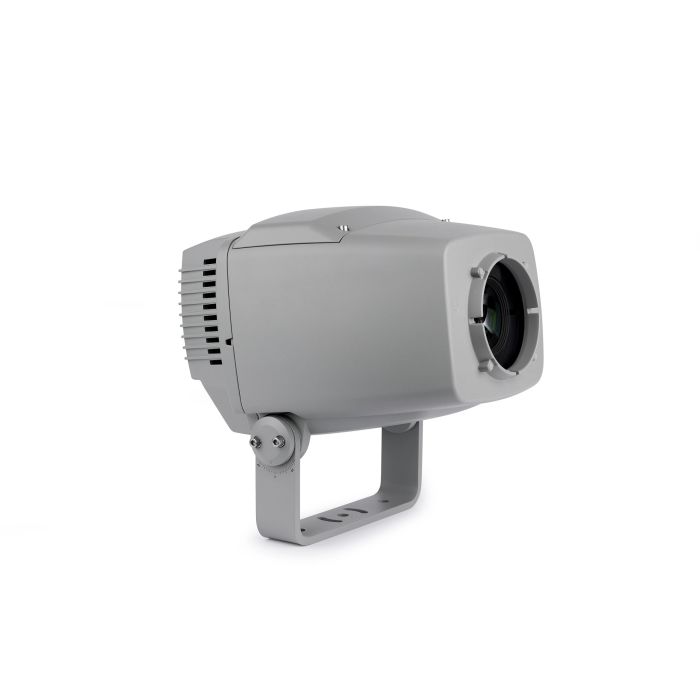

Martin Exterior Projection Pro Compact Grey
The Martin Exterior Projection Pro Compact Grey is a robust outdoor projection fixture engineered for reliable performance in demanding environmental conditions. Its compact form factor and motorized control system make it practical for permanent installations and temporary deployments alike, delivering professional-grade output in a weather-sealed package.
Build & Environmental Resilience
Built from cast aluminum housing with hard anodized finish and protected by 5 mm anti-reflection coated tempered glass, this unit withstands harsh outdoor exposure. The IP66 ingress protection, IK08 impact resistance, and C5 corrosion resistance rating ensure longevity in marine and high-corrosivity environments.
Optical Performance & Control
The 130W LED source produces 4,700 lumens across a 15° to 45° zoom range, with motorized focus operating from 3 meters to infinity. Extensive creative control comes via 11 configurable options with up to four layers of effects, including dynamic zoom, focus, color, gobo, and animation capabilities, all accessible through magnetic switch, DMX, RDM, or Martin Companion app programming.
Key Features
- 130W LED light source
- 4,700 lumens output across full zoom range
- 7,500K color temperature
- 15° to 45° motorized zoom range
- Motorized focus system, 3 meters to infinity operational range
- Cast aluminum housing with hard anodized finish
- 5 mm anti-reflection coated tempered glass front
- IP66 ingress protection rating
- IK08 impact resistance
- C5 corrosion resistance (marine-grade)
- 11 configurable options with up to four layers of effects
- DMX, RDM, magnetic switch, and app-based control
- Hibernation power mode for reduced consumption when inactive
- Weight: 27.5–30.6 lbs (12.5–13.9 kg)
The Martin Exterior Projection Pro Compact Grey combines sealed construction, powerful optics, and flexible control in a weather-resistant platform designed to operate reliably in outdoor environments.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Projection Pro Compact Grey is a professional outdoor projection fixture engineered for location recording, architectural documentation, and environmental lighting capture where weather resilience and precise motorized control are essential. Its 130W LED source, motorized focus, and configurable effects layers allow precise creative control during shoots, while IP66 sealing and C5 corrosion resistance protect your investment in unpredictable outdoor sessions. Choose this for outdoor production work that demands dependable optics and remote programmability without compromise.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Outdoor Installations
- ✓ Architectural Lighting
- ✓ Event Production
Not the best pick for
- – Home Recording
- – Studio Sessions
- – Practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What outdoor conditions will this fixture handle?
The Martin Exterior Projection Pro Compact Grey is rated IP66 (dust and water ingress protection), IK08 impact resistance, and C5 corrosion resistance (marine-grade), making it suitable for rain, spray, salt-air, and harsh industrial environments. Cast aluminum with hard anodized finish and 5 mm anti-reflection tempered glass provide additional protection against UV and weathering.
How is this controlled during live events or installations?
Control options include DMX, RDM (remote device management), magnetic switch, and the Martin Companion app for wireless programming. The motorized zoom (15°–45°), focus (3 meters to infinity), and up to four layers of effects (color, gobo, animation, dynamic zoom) can all be adjusted in real time or pre-programmed.
What is the light output and color temperature?
The 130W LED source produces 4,700 lumens across the full zoom range at a bright neutral white of 7,500K color temperature, suitable for architectural highlighting and outdoor stage illumination.
How does this compare to similar fixtures like the ETC Source Four Extreme or Chauvet Maverick MK3?
The Martin Exterior Projection Pro Compact Grey offers sealed IP66 construction and marine-grade corrosion resistance, making it specifically engineered for permanent outdoor and salt-air installations, while also delivering motorized precision and app-based control. The compact form factor and weather sealing distinguish it for harsh-environment deployments where other moving lights might struggle.
What is included in the box?
The fixture ships as a complete unit ready for mounting and control integration. Refer to your order confirmation or the manual for details on included power cables, mounting hardware, and control documentation.
