Martin Exterior Linear Pro-Graze, CTC, 1ft
Description

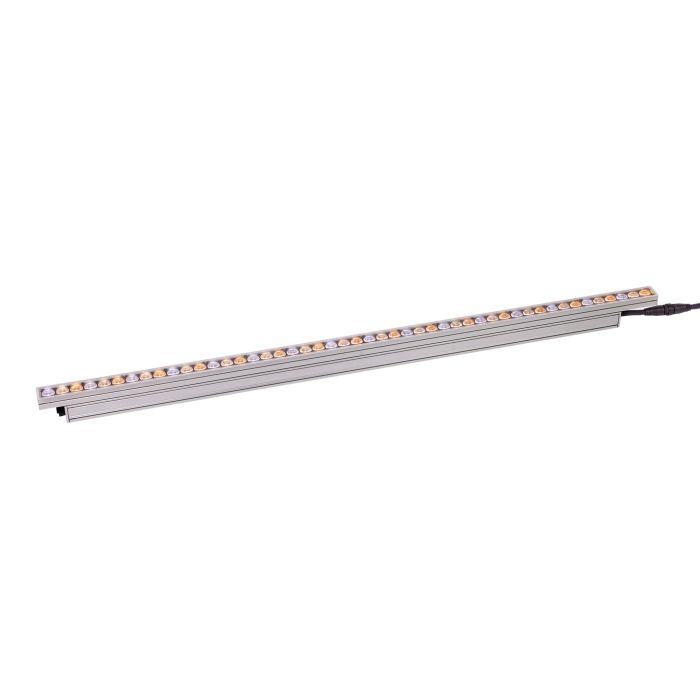

Martin Exterior Linear Pro-Graze CTC 1ft
The Martin Exterior Linear Pro-Graze is a compact LED linear fixture engineered for applications where precise color control and robust outdoor performance are essential for location recording, outdoor broadcast, and architectural documentation work. Its slim 1.57-inch profile integrates seamlessly into tight spaces and architectural details while delivering 800 lumens per foot of consistent, directable illumination. Built to withstand demanding environmental conditions, this fixture combines professional-grade optics with industrial reliability for consistent on-location performance across sessions.
Optical Performance & Output
This fixture produces 800 lm/ft with a focused 9-degree beam angle, concentrating light exactly where it's needed for key-light placement or fill work without spill or waste. Variable white LED technology offers three selectable color temperatures—2700K, 4000K, and 6500K—allowing you to match tungsten interiors, daylight, or cool overcast conditions within the same session, eliminating costly white-balance compensation in post-production.
Environmental Durability & Power Management
An IP66 rating ensures complete dust and water protection for exterior recording setups and unpredictable field conditions, while vibration resistance specifications across multiple standards (IEC 60068-2-6, IEC 60068-2-64, and ANSI C136-31) guarantee stability and flicker-free operation during vehicle movement or weather shifts. Power flexibility spans 12W, 10W, and 5W modes with ASHRAE compliance, drawing from standard 100-277V AC, 50/60 Hz circuits and dissipating just 41 BTU/hr, minimizing thermal drift in your lighting rig.
Key Features
- 12 x 1W variable white LEDs per fixture
- 800 lumens per foot output
- 9-degree beam angle for focused directional light
- Three color temperature options: 2700K, 4000K, 6500K
- IP66 environmental rating for dust and water protection
- DMX control with Remote Device Management (RDM) capability
- 8-pin custom connectors with 4 kV surge protection
- Multiple power modes: 12W, 10W, 5W with ASHRAE compliance
- Input voltage: 100–277V AC nominal, 50/60 Hz
- Compact dimensions: 1.57" W × 2.67" H; 1.9 lbs weight
- Vibration resistance: 1.0g Sinusoidal, 0.7g RMS Random, 3.0g ANSI
- Maximum heat dissipation: 41 BTU/hr
The Pro-Graze delivers broadcast-grade color consistency and reliability in a fixture that remains invisible on-camera while commanding complete control over light output and tone for location and studio lighting workflows.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Linear Pro-Graze is a variable-color LED linear fixture designed for architectural lighting design, offering 800 lumens per foot with switchable color temperatures from warm (2700K) to daylight (6500K) to shape ambient and accent light in studio and production environments. Recording and production professionals can use it to dial in precise ambient tone, match practical lighting in narrative or commercial work, and maintain color accuracy across multiple takes—all from a slim, low-profile form factor. The IP66 rating, multiple power modes, and DMX/RDM control make it flexible for both permanent installation and portable studio lighting setups.
Frequently Asked Questions
What does IP66 rating mean for outdoor use?
IP66 provides complete protection against dust ingress and powerful water jets from any direction, making this fixture safe for exterior mounting, wet environments, and high-pressure washdown. The fixture also meets vibration resistance standards (IEC 60068-2-6, IEC 60068-2-64, ANSI C136-31) for stability in exposed, dynamic locations.
Can I change color temperature during an event or shoot?
Yes, the fixture offers three selectable color temperatures—2700K (warm), 4000K (neutral), and 6500K (daylight cool)—and supports DMX control with Remote Device Management (RDM) capability, allowing you to shift tones remotely or via controller without physical adjustment.
What are the power options and electrical requirements?
The fixture operates at 100–277V AC, 50/60 Hz and offers three power modes: 12W, 10W, and 5W, all ASHRAE-compliant with minimal heat output (41 BTU/hr). This flexibility lets you run it on standard building power and scale consumption based on your installation needs.
How bright is this fixture and what is its beam pattern?
The fixture delivers 800 lumens per foot with a tightly focused 9-degree beam angle, concentrating light precisely where needed for architectural accent or landscape detail lighting without spill.
What connectors and surge protection does it have?
The fixture uses 8-pin custom connectors with 4 kV surge protection, ensuring reliable outdoor signal and power transmission in electrically challenging environments.
