Martin Exterior Image Projection 500 Medium 20 Degree B-Stock
In stock
- SKU
- 90506520-B
Description

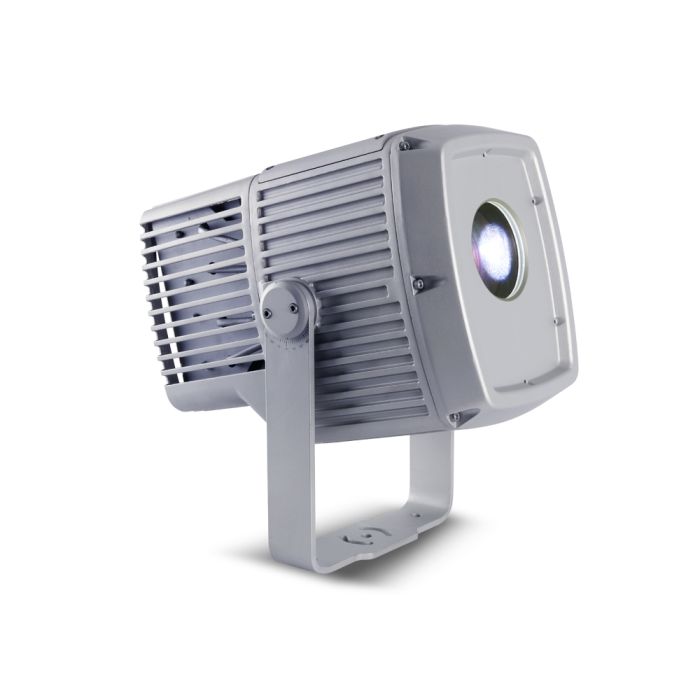

Martin Exterior Projection 500 Medium 20 Degree
The Exterior Projection 500 Medium delivers powerful, high-contrast image projection in a rugged, weather-sealed form factor built for demanding outdoor installations. Its compact footprint and intuitive motorized control systems make it straightforward to position and adjust for precise architectural lighting, logo projection, and dynamic facade effects. This fixture combines up to 6100 lumens output with advanced LED efficiency, eliminating the maintenance burden typical of traditional projection gear.
Optical Performance & Build Quality
A 230 W white LED engine with 20,000-hour lifespan drives consistent, flicker-free output across extended runs. The 20-degree medium beam angle balances throw distance with coverage area, ideal for mid-range facade work and precision framing applications. Cast aluminum housing with hard anodized, metallic grey lacquered finish and IP66 ingress protection ensures reliable operation through rain, dust, and thermal cycling; C5-M corrosion resistance rating handles harsh coastal and industrial environments without degradation.
Effects & Control Architecture
Four integrated effect layers—8-color wheel, 6-rotating gobo wheel, 2-prism interchangeable options, and motorized focus—stack unlimited creative possibilities into a single fixture. Motorized focus ranges from 3 meters to infinity, while 0–100% electronic dimming and 13-channel DMX with RDM support give you frame-accurate control. Custom gobos accept borosilicate glass or aluminum material, both rated to 450°C, allowing bespoke branding and pattern work on any architectural surface.
Key Features
- 230 W white LED engine with 20,000-hour rated lifespan (to 70% output)
- Up to 6100 lumens output with 20-degree medium beam angle
- CRI 72, 8300 K color temperature for consistent architectural rendering
- IP66 rated fully sealed housing with IK08 impact resistance
- C5-M corrosion resistance for marine and high-corrosivity environments
- 8-position color wheel plus open, 6-rotating gobo wheel, and 2 interchangeable prisms
- Motorized focus from 3 meters to infinity with 0–100% electronic dimming
- 13-channel DMX with RDM support for networked lighting control
- Custom gobo diameter 30.0 mm; accepts borosilicate glass or aluminum up to 450°C
- 5 mm anti-reflection coated tempered glass front lens for crisp, high-contrast projection
- Compact dimensions: 415 × 293 × 444 mm (17.5 kg), minimizing rigging load
- Universal AC input: 100–240 V or 277 V nominal at 50/60 Hz; operating range −20°C to +
The Exterior Projection 500 Medium combines flat-field projection optics with industrial-grade weatherization and creative versatility, making it an essential tool for architects, lighting designers, and integrators executing large-scale outdoor branding and facade lighting projects.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The Martin Exterior Projection 500 Medium is a rugged LED image projector designed for outdoor installations, not studio recording or home production. Its 6100 lumens, IP66 weatherproofing, and motorized control systems excel in architectural and live-event environments where precise facade projection and branding are required; it is not suited for studio sessions, practice, or indoor home-recording applications.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Architectural Lighting
- ✓ Outdoor Installations
- ✓ Large-Scale Branding
Not the best pick for
- – Home Recording
- – Studio Sessions
- – Practice
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean for this fixture?
B-Stock means this Martin Exterior Projection 500 is fully functional and meets all performance specifications, but may have minor cosmetic imperfections such as scuffs or finish wear. All optical, electrical, and control systems operate to factory standard.
What beam angle and throw distance is this fixture best for?
The 20-degree medium beam angle balances throw distance and coverage area for mid-range facade work and precision framing. Motorized focus ranges from 3 meters to infinity, making it suitable for building facades, large outdoor surfaces, and architectural projection at moderate distances.
Can I use custom gobos, and what materials do they accept?
Yes. Custom gobos are 30.0 mm diameter and accept both borosilicate glass and aluminum material rated to 450°C, allowing bespoke branding patterns and logos on any architectural surface. The fixture includes a 6-rotating gobo wheel plus 2 interchangeable prism slots for creative effects layering.
How does the LED engine perform in harsh outdoor and coastal environments?
The 230 W white LED engine delivers 6100 lumens with a 20,000-hour lifespan (to 70% output) and eliminates lamp maintenance. IP66 ingress protection and C5-M corrosion resistance rating ensure reliable operation through rain, dust, thermal cycling, and harsh coastal or industrial conditions without degradation.
What control options and dimming does this fixture offer?
The fixture supports 13-channel DMX with RDM networking, 0–100% electronic dimming, and motorized focus adjustment. An 8-position color wheel plus motorized dimming give frame-accurate control over output, color, and focus from a lighting console or networked control system.
