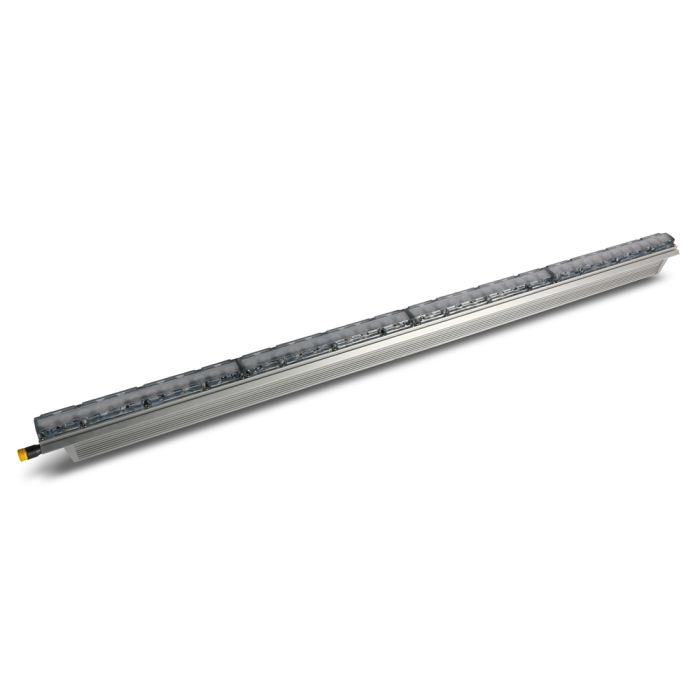

Martin Exterior 1220 Color Temp Controlled Graze Asymmetric

Martin Exterior Linear 1220 Color Temp Controlled Graze Asymmetric

The Exterior Linear 1220 Graze is a weather-sealed LED fixture designed for studio lighting rigs and production environments where precise color control and linear coverage are critical. Its narrow asymmetric beam angle excels at grazing textured surfaces and vertical structures in controlled or semi-outdoor setups, while the integrated power supply and DMX connectivity streamline session integration without requiring external infrastructure.

Optical Performance & Control

This fixture produces a 70° x 12.5° asymmetric beam optimized for wall grazing and linear illumination in studio and on-location rigs, powered by 3 W Cree XP-E2 LEDs with a 50,000-hour lifespan to >70% output. Full color temperature control from 2700 K to 6500 K enables seamless color shifts from warm to cool light within a single take or across production phases, with 0–100% intensity control via DMX or RDM, delivering sophisticated color matching and dynamic effects without additional gear.

Setup & Reliability

Built for portable and permanent studio installations, the 1219 mm linear housing features IP66 rating and IK08 classification for weather resistance during outdoor shoots or durability in humid studio environments. The integrated auto-ranging power supply (100–277 V, 50/60 Hz) and hybrid connector support daisy-chain runs up to 100 feet at 230 V, while the hinged mounting bracket accommodates flexible rigging angles without requiring additional brackets or adapters.

Key Features

• Length: 1219 mm (48.0 in.); Width: 72 mm (2.8 in.); Height: 99 mm (3.9 in.) with bracket
• Weight: 6.0 kg (13.3 lbs.)
• Light source: 3 W Cree XP-E2 LEDs
• Beam angle: 70° x 12.5° asymmetric
• LED lifetime: 50,000 hours (to >70% luminous output)
• Color temperature control: 2700 K – 6500 K with 8-bit DMX resolution
• Dynamic Effects Intensity: 0–100%
• DMX/RDM control: USITT DMX512/1990 and ANSI/ESTA E1.20 compliant; 2–16 DMX channels
• Power input: 100–277 V nominal, 50/60 Hz; auto-ranging electronic switch-mode supply
• Typical power consumption: 20 W per foot ±1 W
• Environmental rating: IP66 with IK08 classification
• Connectivity: Integrated universal power supply with daisy-chain via combined power and data connector

The Exterior Linear 1220 combines extreme color flexibility, weather-sealed construction, and plug-and-play integration, making it a reliable option for studio productions and on-location shoots requiring dependable architectural or product lighting control.
