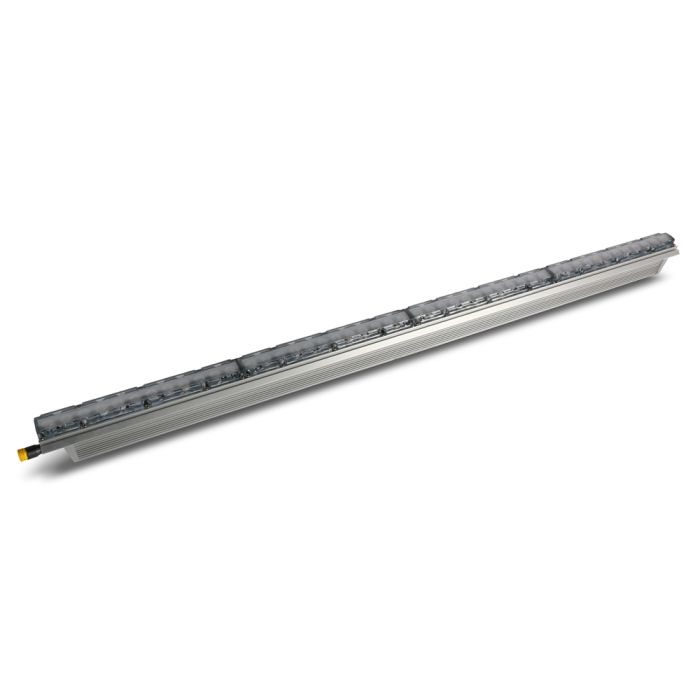

Martin Exterior 1200 RGBW Color Mixing Graze Asymmetric
In stock
- SKU
- 90356982
Description
Martin Exterior Linear 1200 Graze Asymmetric RGBW
The Exterior Linear 1200 Graze is a robust outdoor-rated LED fixture engineered for high-impact color-mixing applications in studio-to-installation workflows. Its compact linear form factor—48 inches long and just 2.8 inches wide—mounts flush to control rooms, cyc walls, and backdrop structures to deliver dynamic RGBW color mixing with minimal visual footprint. The narrow asymmetric beam (74° × 12.5°) concentrates output precisely where needed, making this fixture ideal for dramatic accent lighting on backdrops, set pieces, and linear architectural surfaces during recording and live-capture sessions.
Optical Performance & Output
Three discrete Cree XP-E2 LEDs deliver full RGBW color mixing with 50,000-hour minimum lifespan at >70% luminous output. The asymmetric beam geometry provides the most narrow beam angle configuration available in this series, optimizing brightness for detailed graze work without light spillage or unwanted reflections that interfere with camera or microphone placement.
Installation & Control Infrastructure
The integrated universal power supply eliminates the need for external control boxes—the fixture connects directly to line voltage (100–277 V AC, 50/60 Hz) and accepts DMX512/1990 and RDM (ANSI/ESTA E1.20) control via a hybrid connector. Daisy-chain up to 100 feet of fixtures at 240 V using the combined power and data connector, and deploy the hinged mounting bracket for flexible positioning during set design and strike.
Key Features
- Length: 1219 mm (48.0 in.)
- Width: 72 mm (2.8 in.)
- Height: 99 mm (3.9 in.) including bracket
- Weight: 6.0 kg (13.3 lbs.)
- Light source: 3 W Cree XP-E2 LEDs with RGBW color mixing
- Beam angle (Asymmetric): 74° × 12.5°
- LED lifetime: 50,000 hours (to >70% luminous output)
- DMX channels: 2–16 depending on mode
- AC power: 100–277 V nominal, 50/60 Hz
- Typical power consumption: 20 W per foot ±1 W
- Maximum fixture chain length at 240 V: 30.48 m (100 ft.)
- Housing: IP66 rated for outdoor environments
- Operating temperature: −30° C to +45° C (−22° F to +113° F)
The Exterior Linear 1200 Graze Asymmetric combines high output, sophisticated DMX control, and rugged construction into a fixture purpose-built for production environments requiring precise color mixing, reliable long-runtime performance, and minimal maintenance between sessions.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Linear 1200 Graze Asymmetric is a professional outdoor LED fixture for architectural lighting design and long-term installation work, featuring full RGBW color mixing, DMX512/RDM control, and a compact linear form that hugs walls and textured surfaces. Home studios or location production teams planning outdoor shoots or installations will value its IP66 weather rating, integrated universal power supply (100–277 V), and ability to chain multiple units efficiently while maintaining precise color control and minimal light waste. The asymmetric beam geometry and 50,000-hour LED lifespan make it ideal for permanent fixtures that require minimal maintenance and consistent, predictable output.
Frequently Asked Questions
What does IP66 rating mean, and will this fixture survive outdoor weather?
IP66 means the fixture is fully dust-tight and can withstand high-pressure water jets from any direction. It is engineered for permanent outdoor installation and operates reliably in temperatures from −30° C to +45° C (−22° F to +113° F), making it suitable for most climate conditions year-round.
How many fixtures can I control on a single DMX line?
You can daisy-chain up to 100 feet of fixtures at 240 V using the combined power and data connector, with no external control box required. The fixture accepts standard DMX512/1990 and RDM control via a hybrid connector and draws approximately 20 W per foot.
What is an asymmetric beam, and why is 74° × 12.5° important?
An asymmetric beam is wider in one plane (74° horizontal) and narrower in the other (12.5° vertical), concentrating light precisely onto facades and graze surfaces without spillage. This geometry maximizes brightness and control for large-scale architectural applications while minimizing wasted light.
How long do the LEDs last, and what maintenance is required?
The three Cree XP-E2 LEDs are rated for a minimum of 50,000 hours to >70% luminous output, which translates to years of continuous operation before replacement is needed. The fixture requires minimal maintenance due to its sealed IP66 housing and integrated power supply.
What power supply do I need, and does this fixture require external equipment?
The fixture has an integrated universal power supply and connects directly to line voltage (100–277 V AC, 50/60 Hz) with no external control box needed. It accepts standard DMX512 control via the hybrid connector and can be powered and chained using a single cable run.
