Martin Dce Psu 240 Ip
Description

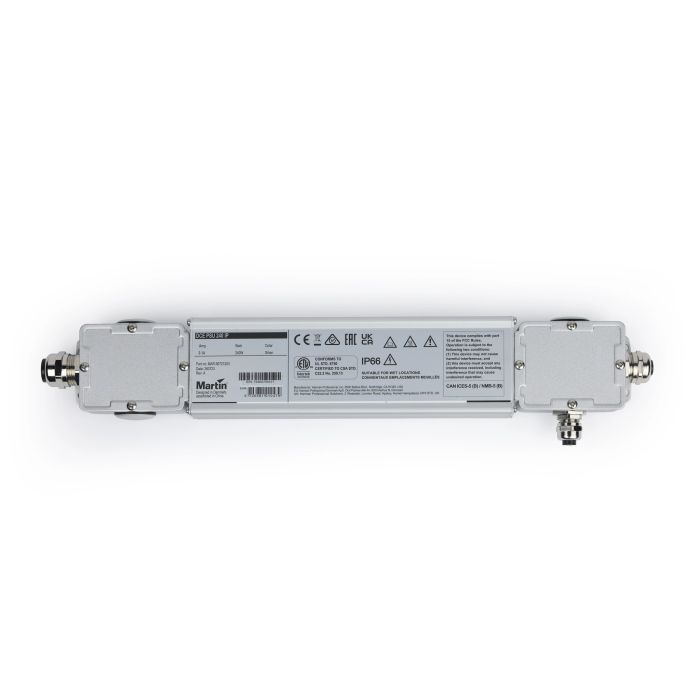

Martin DCE PSU 240 IP
The Martin DCE PSU 240 IP is a robust, compact power supply engineered to deliver reliable 48 VDC distribution to Martin Creative LED fixtures in professional recording and production environments. Its rugged aluminum chassis and sealed construction mount securely on walls or flat surfaces in any orientation, maintaining consistent performance across demanding temperature ranges and studio installation scenarios.
Power Distribution & Electrical Performance
This unit operates across a wide input range of 100–277 V AC at 50/60 Hz, making it compatible with global power infrastructure without additional conversion. The auto-ranging electronic switch-mode power supply delivers 48 VDC power and data to connected Martin Creative fixtures while maintaining a 0.95 power factor at 208 V and above, minimizing reactive load on facility electrical systems and keeping your studio's power draw clean.
Durability & Environmental Resilience
An IP66 rating ensures complete protection against dust and high-pressure water jets, allowing installation in exposed or semi-outdoor studio environments without compromise. The unit operates reliably from −30°C to +40°C (−22°F to 104°F), with earth-leakage current held to 0.50 mA and typical inrush current of 6.7 A at 230 V, 50 Hz, meeting safety standards for both humid and temperature-extreme production spaces.
Key Features
- AC input range: 100–277 V AC nominal, 50/60 Hz
- Auto-ranging electronic switch-mode power supply
- 48 VDC output power and data to Martin Creative LED fixtures
- Single Ethernet data input and one power+data output for fixture connection
- IP66-rated sealed enclosure for dust and water protection
- Operating temperature range: −30°C to +40°C (−22°F to 104°F)
- Power factor: 0.95 @ 208 V and above
- Earth-leakage current: 0.50 mA typical
- Typical half-cycle RMS inrush current: 6.7 A at 230 V, 50 Hz
- Rugged extruded aluminum housing
- Mounts flat-surface in any orientation with four screws or fasteners
- Internal wiring terminals for on-site cable customization and wall-mounted installation
The Martin DCE PSU 240 IP combines worldwide voltage compatibility with sealed durability and straightforward field installation, making it the dependable backbone for distributed Martin Creative LED systems in professional recording studios, live production facilities, and architectural lighting applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin DCE PSU 240 IP is a rugged, sealed power supply designed to reliably feed 48 VDC to Martin Creative LED fixtures in studio and production environments. Its global voltage input range, IP66 weather resistance, and wide operating temperature window make it ideal for flexible studio setups, broadcast facilities, and location recording where lighting rigs must perform under varied electrical and environmental conditions. Select this when you need bulletproof power distribution that won't fail during a session or installation.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Architectural Lighting
- ✓ Theater Production
Not the best pick for
- – Practice
- – Home Recording
Skill level: Professional
Frequently Asked Questions
What is this power supply designed to power?
The Martin DCE PSU 240 IP supplies 48 VDC power and data exclusively to Martin Creative LED fixtures via a single Ethernet data input and one power+data output for fixture connection.
Can I use this internationally?
Yes. The unit accepts AC input from 100–277 V at 50/60 Hz, making it compatible with power systems worldwide without additional voltage converters or transformers.
How durable is this in challenging environments?
It carries an IP66 rating for complete protection against dust and high-pressure water jets, operates safely from −30°C to +40°C (−22°F to 104°F), and mounts flat in any orientation, making it suitable for exposed outdoor, theater, and architectural lighting installations.
How is this mounted and installed?
The rugged aluminum housing can be wall-mounted or positioned flat on any surface, secured with four screws or fasteners, with internal wiring terminals available for on-site cable customization during installation.
What are the electrical specifications for my facility?
The auto-ranging switch-mode supply maintains a 0.95 power factor at 208 V and above, typical earth-leakage current of 0.50 mA, and typical inrush current of 6.7 A at 230 V/50 Hz, meeting safety standards for professional venues.
