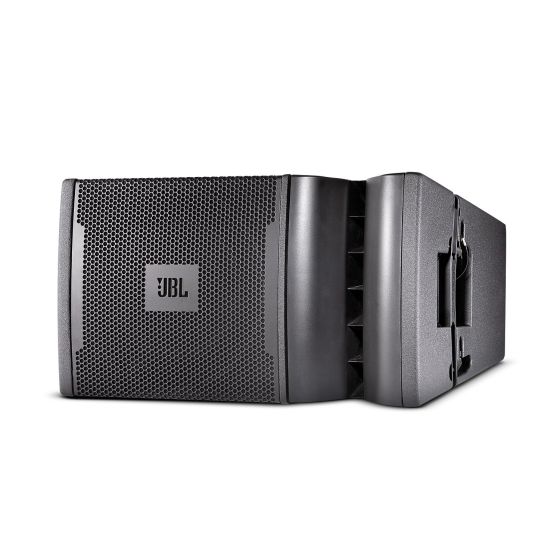

JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System
Description
JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System
The VRX932LAP is a compact, self-powered line array speaker engineered to deliver transparent, articulate output in recording studio monitoring, broadcast, and installed sound applications where mix accuracy and consistency matter. Built around a 12-inch dual voice coil woofer and three 2408J annular ring diaphragm HF drivers, this system produces tight, controlled bass paired with pristine high-frequency definition that reveals detail in dense mixes without listener fatigue. The integrated 1750-watt peak amplification and DSP-based protection circuitry eliminate the need for external processing, streamlining session workflow and simplifying system configuration for permanent studio installations or mobile recording rigs.
Audio Performance & Coverage
Maximum peak output reaches 136 dB SPL at 1 meter, with a usable frequency response of 75 Hz – 20 kHz (±3 dB) and extended range to 57 Hz at –10 dB. The 15° vertical coverage pattern and array configuration selector with "array shading" capability enable precise tuning of vertical dispersion when units are flown or stacked, optimizing acoustic balance across the control room and minimizing reflective anomalies that muddy critical listening decisions.
Power, Connectivity & Build
The system operates on 90–132 VAC or 216–264 VAC, 50/60 Hz with modest power draw (6A at 120V, 3A at 240V), and features Neutrik PowerCon (NAC 3MPA) AC input and XLR audio connectors with loop-through for straightforward integration into larger monitor arrays or multi-unit production environments. Constructed from 25/15 mm birch plywood and weighing 52 lb (24 kg) with compact dimensions of 349 × 597 × 444 mm, the enclosure balances durability with portability across studio setups, mobile installations, and remote recording scenarios.
Key Features
- Frequency Response: 75 Hz – 20 kHz (±3 dB); Extended Range: 57 Hz – 20 kHz (–10 dB)
- Maximum Peak Output: 136 dB SPL at 1 meter
- Internal DPC-2 Amplification: 1750 Watts Peak, 875 Watts Continuous
- 3 × 2408J Annular Ring Diaphragm High-Frequency Drivers
- 12-inch (305 mm) Dual Voice Coil Low-Frequency Driver
- 15° Vertical Coverage with Array Configuration Selector and Array Shading
- Resident DSP with Mechanical and Thermal Protection Limiters
- Neutrik PowerCon (NAC 3MPA) AC Input; XLR Audio with Loop Through
- AC Operating Range: 90–132 VAC or 216–264 VAC, 50/60 Hz
- Birch Plywood Enclosure Construction (25/15 mm)
- Compact Dimensions: 349 × 597 × 444 mm; Net Weight: 52 lb (24 kg)
- Low Power Draw: 6A at 120V, 3A at 240V
The VRX932LAP combines high-output capability, integrated amplification, and intelligent array control in a package light enough to relocate between rooms or facilities yet rugged enough for demanding studio and production schedules.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX932LAP is a self-powered line array speaker engineered for recording and mixing monitoring in larger studio or session spaces where transparent, articulate reference is critical. Its 136 dB peak output, pristine high-frequency definition across three annular ring diaphragm drivers, and integrated DSP protection mean you get studio-grade clarity in a compact, self-contained system without needing an external amplifier or processor chain. The 75 Hz – 20 kHz frequency response with extended range to 57 Hz delivers accurate low-end definition for mix decisions in acoustically demanding rooms.
Frequently Asked Questions
What makes the VRX932LAP suitable for touring and festival use?
The system weighs only 52 lb with compact dimensions (349 × 597 × 444 mm), integrated 1750-watt amplification eliminates external gear, and Neutrik PowerCon/XLR connectors with loop-through allow straightforward daisy-chaining. Its birch plywood construction is durable for repeated transport, and modest power draw (6A at 120V) reduces infrastructure demands at temporary venues.
How does the array shading feature work?
Array shading is an intelligent DSP-based configuration selector that tunes vertical dispersion when units are flown or stacked, allowing you to optimize acoustic coverage for specific venue geometry and eliminate hot spots in your coverage area.
What is the frequency response and maximum output level?
Usable frequency response spans 75 Hz – 20 kHz (±3 dB) with extended range to 57 Hz at –10 dB, delivering maximum peak output of 136 dB SPL at 1 meter. The system combines tight, controlled bass from the 12-inch dual voice coil woofer with pristine high-frequency definition across three 2408J drivers.
Do I need an external amplifier or processor?
No. The VRX932LAP integrates 1750-watt peak amplification (875 continuous) and DSP-based protection circuitry, eliminating the need for external processing and simplifying deployment in touring, festival, and permanent venue applications.
What are the AC power requirements?
The system operates on 90–132 VAC or 216–264 VAC, 50/60 Hz with low power draw of 6A at 120V or 3A at 240V, making it compatible with standard venue power and minimizing infrastructure strain.
