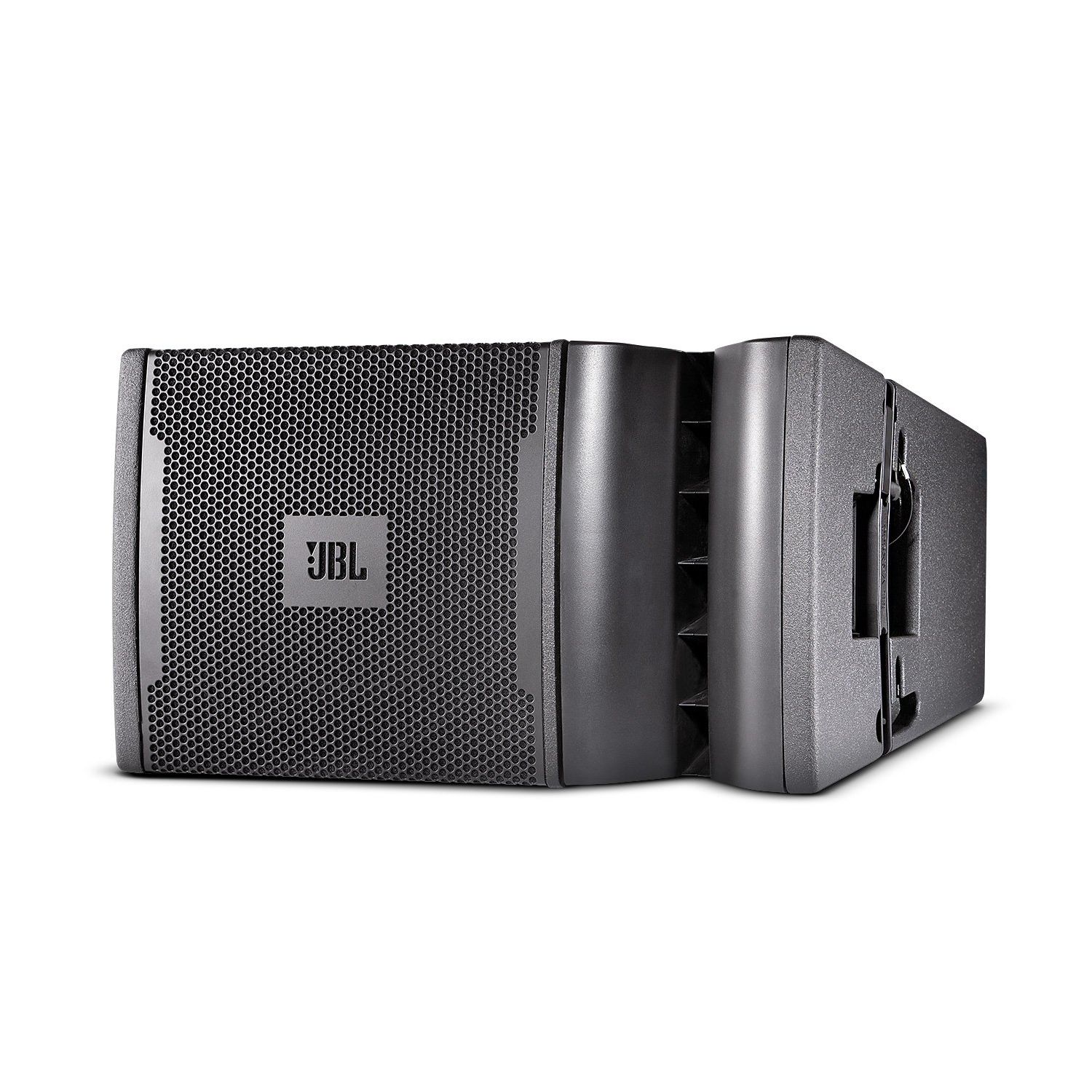

JBL VRX932LA-1 12" Two-Way Line Array Loudspeaker System
Description
JBL VRX932LA-1 12" Two-Way Line Array Loudspeaker System
The VRX932LA-1 captures responsive clarity and punchy midrange that cuts through with professional authority in both intimate studio monitoring setups and larger production environments. Its compact yet powerful design gives you precise control over soundfield imaging and acoustic placement, while the sophisticated two-way configuration produces a remarkably smooth tonal palette across the full frequency spectrum. This system excels across modern recording genres—from crisp vocal captures in pop and R&B to pristine acoustic detail in classical tracking, while maintaining the presence that rock, hip-hop, and electronic productions demand for accurate mixing reference.
Design & Build
At 46 lb (21 kg), the VRX932LA-1 balances portability with solid construction, featuring dual angle pole socket mounting for flexible aiming and rigging hardware that supports arrays of up to six units flown or mounted on stands. The enclosure houses a JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps paired with three 2408J Annular Ring Diaphragm HF drivers and a Constant Curvature waveguide for unprecedented array coherence in multi-unit configurations.
Audio Performance
The VRX932LA-1 delivers 130 dB SPL peak output in passive mode with 95 dB sensitivity (1 watt @ 1 meter), covering a frequency response of 75 Hz–20 kHz (±3 dB) that extends to 57 Hz–20 kHz (–10 dB) for accurate low-frequency reproduction in tracking and mixing sessions. Run passive power of 800W/1600W/3200W (Continuous/Program/Peak) or employ bi-amplified configuration with 800W/1600W/3200W LF and 75W/150W/300W HF; the 1.2 kHz crossover ensures seamless driver integration and transparent midrange translation across all mix scenarios.
Key Features
- Compact 12" two-way line array system designed for arrays of up to six units
- 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps
- 3 x 2408J Annular Ring Diaphragm HF drivers
- Constant Curvature waveguide for unprecedented array coherence
- Weight: 46 lb / 21 kg
- Frequency Response: 75 Hz–20 kHz (±3 dB); Range: 57 Hz–20 kHz (–10 dB)
- System Max. SPL: 130 dB peak (passive mode); LF: 130 dB; HF: 139 dB
- System Sensitivity: 95 dB SPL (1 watt @ 1 meter, passive mode)
- Passive Power Rating: 800W / 1600W / 3200W (Continuous / Program / Peak)
- Bi-amp LF: 800W / 1600W / 3200W; Bi-amp HF: 75W / 150W / 300W
- Nominal Impedance: 8 Ohms (Passive, Bi-amp LF, Bi-amp HF)
- Input Connectors: Neutrik Speakon NL-4 (x2); Crossover Frequency: 1.2 kHz
- Dual angle pole socket for aiming flexibility; integral rigging hardware for simple connection and flying arrays
The VRX932LA-1 combines transparent, engaging sound reproduction with the ergonomic flexibility to position it exactly where your studio environment or application needs it most for accurate tracking and mixing reference.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX932LA-1 is a professional two-way line array speaker engineered for capture and playback in recording, mastering, and mixing environments where transparent, coherent sound across 75 Hz–20 kHz is essential. Its Constant Curvature waveguide and Differential Drive woofer deliver smooth, balanced frequency response and exceptional midrange detail that translates well across genres and mixes. Use it as a main monitoring reference, live recording playback, or system integration where compact form factor and bi-amp flexibility meet studio-grade audio fidelity.
Frequently Asked Questions
Can I use a single VRX932LA-1 speaker, or do I need to array multiple units?
The VRX932LA-1 is designed as a line array component and works best when up to six units are flown or stand-mounted together for coherent sound projection and coverage. A single unit can be used, but the system reveals its full potential—array coherence, even coverage, and phase integration—when deployed as intended.
What amplifier power do I need?
In passive mode, the system accepts 800W continuous / 1600W program / 3200W peak. For bi-amplified operation, the low-frequency drivers require 800W / 1600W / 3200W and the high-frequency drivers require 75W / 150W / 300W. All inputs are Speakon NL-4 connectors.
What frequencies does it handle?
The VRX932LA-1 covers 75 Hz–20 kHz (±3 dB) in normal operation, with extended range reaching 57 Hz–20 kHz (–10 dB). The 1.2 kHz crossover seamlessly blends the 12" woofer and three HF drivers across the spectrum.
How much does it weigh, and is it portable?
At 46 lb (21 kg) per unit, the VRX932LA-1 balances solid construction with portability. Integral rigging hardware and dual-angle pole sockets allow quick deployment, whether on stands or flown in arrays.
What makes the Constant Curvature waveguide important?
The Constant Curvature waveguide delivers unprecedented array coherence, meaning multiple units phase-align smoothly when arrayed, producing even coverage and transparent sound without phase cancellation or hot spots.
