JBL VRX-SMAF Array Frame
Description

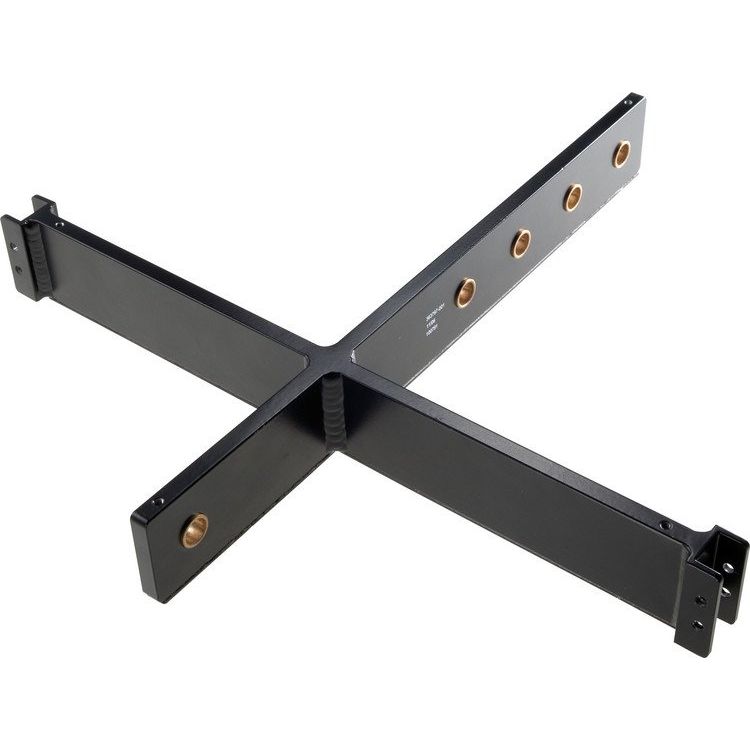

JBL VRX-SMAF Array Frame
The JBL VRX-SMAF Array Frame is a professional rigging solution engineered to streamline the suspension and stacking of VRX928LA line array loudspeakers in studio monitoring, installed sound, and production environments. Its intuitive quick-release design and robust construction enable fast, repeatable setup across different room configurations and session demands. This frame delivers the reliability required for permanent monitoring installations, mobile recording rigs, and rental inventories where consistency and dependability define professional workflow.
Rigging & Suspension
The frame accommodates arrays weighing up to 300 lbs and supports ground-stacking of up to four VRX928LA loudspeakers in a single column. A 7:1 design safety factor across all speaker configurations ensures margin for load variations and dynamic stress, meeting rigorous professional standards without compromise.
Hardware & Build Quality
The package includes the array frame, two quick-release pins for rapid deployment, a pair of forged 3/8" shackles, and drop levers for stable positioning. Black powder-coat finish protects against corrosion and wear in touring environments, while precision engineering in every component delivers the durability expected from JBL professional systems.
Key Features
- Designed for suspension of VRX928LA line array loudspeakers
- Rated load capacity: 300 lbs
- Supports ground-stacking of up to four VRX928LA units per frame
- Includes quick-release pins for rapid rigging and de-rigging
- Includes pair of forged 3/8" shackles
- Includes pair of drop levers for stable positioning
- Dimensions: 424 × 457 mm (16.7 × 18.0 inches)
- Minimum design safety factor: 7:1 across all configurations
- Black finish with high-quality construction
- Professional-grade rigging hardware integration
The VRX-SMAF delivers the structural integrity and ease of use that professional monitoring arrays and installed sound operations demand.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX-SMAF Array Frame is a precision rigging system engineered to suspend and stack VRX928LA line arrays safely and repeatably in studio-based installs, broadcast facilities, and small-venue permanent setups. The 300 lb capacity, 7:1 safety margin, and quick-release hardware mean you spend less time rigging and more time capturing clean sound without worry. It's the foundation that keeps your monitoring or main system stable and predictable across every session.
Frequently Asked Questions
What loudspeakers does this frame work with?
The JBL VRX-SMAF Array Frame is specifically designed for the VRX928LA line array loudspeaker. It supports suspension and ground-stacking configurations up to four units per frame.
How much weight can this frame support?
The frame is rated for a 300 lb load capacity and maintains a 7:1 design safety factor across all speaker configurations, ensuring reliable performance in touring and installed sound applications.
What hardware and accessories are included?
The package includes the array frame, two quick-release pins for rapid deployment, a pair of forged 3/8 inch shackles, and a pair of drop levers for stable positioning.
Is this frame suitable for touring and rental use?
Yes. The frame is engineered for touring applications and rental operations with a black powder-coat finish that resists corrosion and wear, plus precision engineering throughout for consistent repeatability across gigs.
How quickly can I set up and tear down?
The intuitive quick-release pin design and included hardware allow rapid rigging and de-rigging, letting you focus on sound rather than complex suspension logistics.
