What power handling does the VLA-C125S-BK deliver?

The sub handles 1600 W continuous pink noise (6400 W peak over 2 hours) or 800 W continuous (3200 W peak over 100 hours), reaching a maximum 127 dB SPL at 1 meter. Dual 3-inch voice coils in each 15-inch Differential Drive transducer provide the efficiency and thermal headroom for demanding live and installed applications.

How does the VLA-C125S-BK integrate with VLA Compact line arrays?

The subwoofer is engineered specifically for the VLA Compact series and includes a bracket plate and stainless steel bolts for seamless rigging and system alignment. Its frequency response (52 Hz–210 Hz at −10 dB) fills the low end while the line array handles mids and highs.

Is this subwoofer built for outdoor and wet environments?

Yes—the enclosure features an IP-55 rating protecting against dust and water jet spray, fiberglass and steel construction with zinc-plated grilles, hydrophobic mesh, and a powder-coated finish. These materials and seals make it reliable for touring, outdoor venues, and weather-exposed installations.

What are the dimensions and weight?

The VLA-C125S-BK measures 508 x 848 x 634 mm and weighs 56.7 kg (125 lbs), making it compact and transportable for tours and venue moves while remaining rigid enough for permanent mounting.

What type of connectivity does it use?

The sub features CE-compliant barrier strip terminals that accept up to 5.2 sq mm (10 AWG) wire or 9 mm spade lugs, providing secure touring-grade connections without fragile connectors.

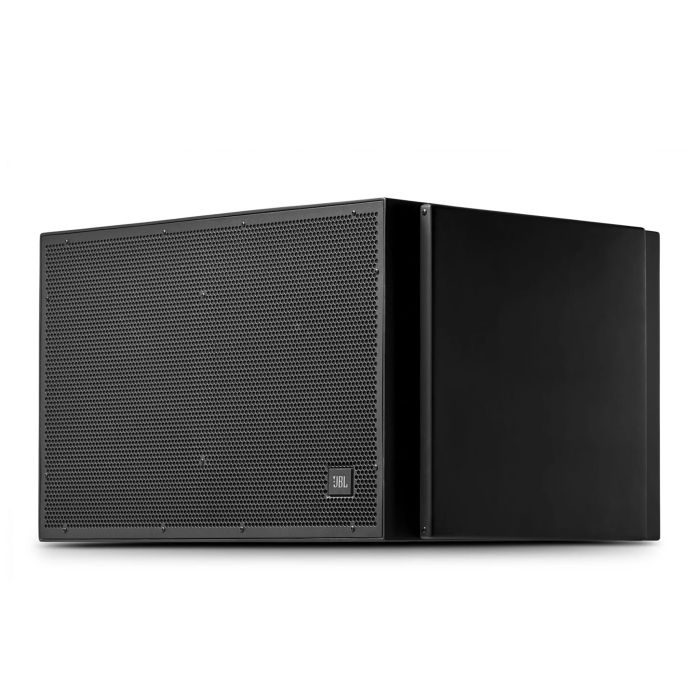

JBL VLA-C125S-BK Subwoofer

The JBL VLA-C125S-BK is a compact line array subwoofer engineered for integrated system performance with the VLA Compact series. Built with reinforced fiberglass and steel construction, it delivers consistent low-frequency reinforcement across mix scenarios from studio monitoring to live reinforcement setups, with tactile barrier strip connectivity and a robust mounting plate for flexible positioning and system integration.

Power & Output Specifications

This subwoofer handles 1600 W continuous pink noise (6400 W peak) over 2 hours or 800 W continuous (3200 W peak) over 100 hours, producing a maximum 127 dB SPL at 1 meter. The dual 15-inch Differential Drive® transducers with 3-inch voice coils provide the efficiency and power handling necessary for capturing and reinforcing deep low-frequency content with clarity and control in full-range recording and mixing applications.

Design & Build Quality

The enclosure combines a fiberglass shell with 18 mm birch plywood internal bracing and 14-gauge zinc-plated, powder-coated steel grilles wrapped in acoustically transparent cloth and hydrophobic mesh—engineered for consistent acoustic performance and durability across varying studio and live environments. An IP-55 rating protects against dust and moisture, while the compact 508 x 848 x 634 mm footprint and 56.7 kg weight enable efficient placement and system configuration in studios and touring rigs.

Key Features

Dual 15" Differential Drive® transducers
Dual 3-inch voice coils for maximum efficiency and power handling
1600 W continuous pink noise power rating (6400 W peak, 2 hrs)
Maximum SPL: 127 dB continuous at 1 meter
Frequency range (−10 dB): 52 Hz – 210 Hz
Frequency response (±3 dB): 62 Hz – 123 kHz
Fiberglass shell with 18 mm birch plywood internal bracing and gelcoat finish
IP-55 rated dust and water protection with hydrophobic mesh
Dimensions: 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in); weight: 56.7 kg (125 lbs)
CE-compliant barrier strip terminals accepting up to 5.2 sq mm (10 AWG) wire or 9 mm spade lugs
Includes VLA-C125S bracket plate and eight M10 x 35 mm stainless steel bolts

The VLA-C125S-BK integrates seamlessly into VLA Compact line array systems, delivering extended low-frequency capture and mix-critical bass reinforcement. Its rugged construction and wide frequency coverage make it reliable for studio sessions, mobile recording rigs, and installed sound production environments.
