What amplifier do I need to power the SUB18?

JBL recommends an amplifier rated between 3,500–4,000W into 8 ohms to unlock the subwoofer's full 137 dB SPL capacity and 8000W peak handling. The cabinet accepts push-terminal connections with 12-gauge wire for straightforward integration into your monitoring chain.

How low does this subwoofer actually go?

The SUB18 extends response to 20.6 Hz at -10 dB and 23.1 Hz at -6 dB, revealing content below 18 Hz in-room. This deep extension is essential for mastering and film post-production where accurate low-frequency translation is non-negotiable.

Is the SUB18 suitable for live sound or portable use?

No—this is a studio-only monitoring subwoofer designed to anchor a fixed control room or mastering suite. At 100 lbs with passive push-terminal input, it's not intended for touring, portable PA, or live performance applications.

What makes the cabinet construction important?

The 18mm 11-ply Baltic birch plywood enclosure is engineered to eliminate cabinet resonance and coloration, ensuring the dual neodymium magnets and 2269H driver deliver transparent bass reproduction without adding color to your mix. The rigid construction supports 2000W continuous power handling without compromising fidelity.

Who should use this subwoofer?

Professional mastering engineers, music producers, film post-production supervisors, and serious home studio owners mixing or mastering critical content. It's not for casual practice or portable gigging—it's a reference tool for environments where translation and accuracy are non-negotiable.

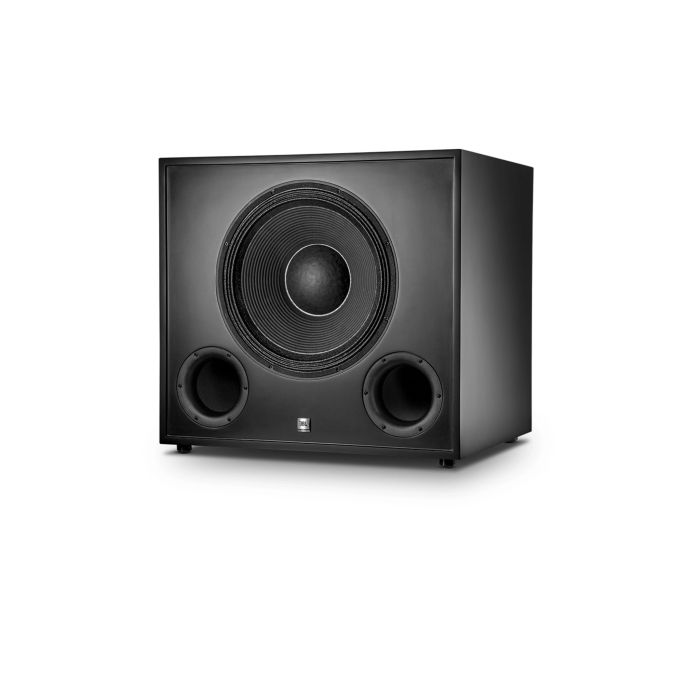

JBL SUB18 Studio Subwoofer

The JBL SUB18 is a professional-grade studio subwoofer engineered to anchor monitoring systems in control rooms, mastering suites, and serious mixing environments. Its massive 18-inch driver and rock-solid cabinet deliver the low-frequency extension and output capability needed to accurately track, mix, and master music, film, and broadcast content across the full spectrum. This is purpose-built monitoring equipment designed to reveal what's actually happening below 25 Hz—critical information for making decisions that translate across playback systems.

Low-Frequency Capture & Mix Translation

The SUB18 extends response down to 20.6 Hz at -10 dB and 23.1 Hz at -6 dB, providing the deep low-frequency articulation essential for tracking kick and bass with precision and mixing with confidence. With a maximum peak output of 137 dB SPL and 2000W continuous power handling (8000W peak), this subwoofer reproduces powerful, controlled bass across the full monitoring range without compression or distortion, letting you hear exactly what you're capturing and how it will sit in the final mix.

Studio-Grade Construction & Workflow Integration

The enclosure is fabricated from 18mm 11-ply Baltic birch plywood with a professional black lacquer finish, engineered for rigid performance and isolation from cabinet resonance that could color your low-end decisions. Push-terminal connectivity and a recommended amplifier power rating of 3,500–4,000W into 8 ohms ensure straightforward integration into existing studio monitoring chains without requiring specialized adapters or compromises.

Key Features

Single JBL 2269H 18-inch driver with dual 100mm voice coils and dual neodymium magnets
In-room frequency response extends below 18 Hz
Frequency response -10 dB: 20.6 Hz
Frequency response -6 dB: 23.1 Hz
Maximum peak output: 137 dB SPL
System input power: 2000W continuous / 8000W peak
Sensitivity: 92 dB @ 1m, 2.83 V
18mm 11-ply Baltic birch construction with black lacquer finish
Dimensions: 27 x 30 x 24 inches
Weight: 100 lbs
Push-terminal connectivity for 12-gauge wire
Recommended amplifier power: 3,500–4,000W into 8 ohm

The SUB18 combines transparent low-frequency extension, massive output capacity, and professional construction to function as the foundation of a serious monitoring environment where every mix decision counts.
