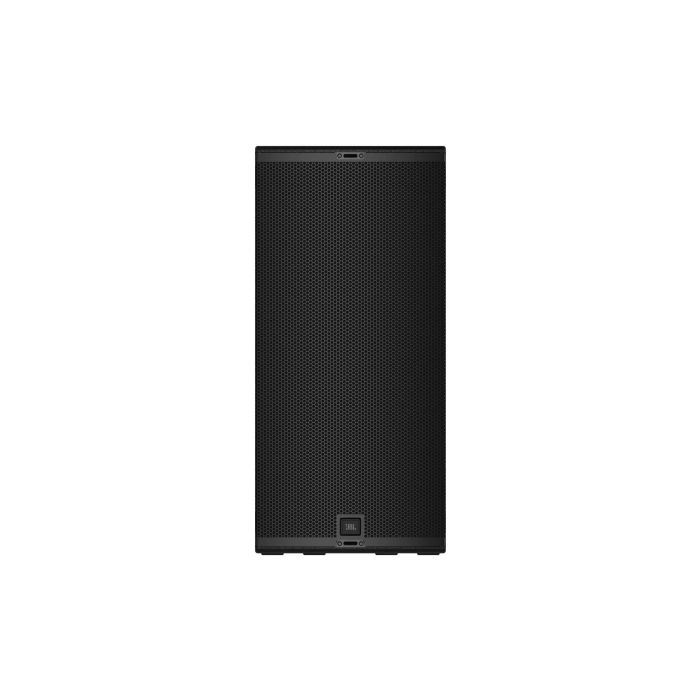

JBL SRX922 Powered Point-source Speaker

JBL SRX922 Powered Point-source Speaker

The SRX922 is a compact yet powerful powered speaker engineered for recording studios, post-production facilities, and live tracking sessions where consistent acoustic behavior and reliable amplification support professional-grade sessions. Its point-source architecture delivers coherent, predictable sound propagation—essential for accurate monitoring during recording and mixing. Built on JBL Professional's proven engineering standards, this speaker integrates seamlessly into studio workflows with straightforward setup and network control.

Audio Performance & Monitoring Accuracy

Peak output of 138 dB SPL with integrated 1100W continuous Class-D amplification (550W LF / 550W MHF) provides headroom for tracking and mixing without coloration. The three-way acoustical design—dual 12-inch low-frequency drivers, single 6-inch midrange, and compression driver tweeter—maintains clarity and definition from 48 Hz to 17 kHz, with precise 90° × 60° coverage pattern ensuring consistent response across the listening area and eliminating phase anomalies that compromise mix translation.

Design & Studio Integration

Constructed from exterior-grade birch plywood with durable DuraFlex finish, the SRX922 weighs 45.5 kg (100 lbs) and measures 944 × 440 × 505 mm—compact enough for flexible studio placement and repositioning. Eight QuickLink M10 suspension points support wall or ceiling mounting for optimal acoustic positioning, while the powder-coated steel grille with acoustically transparent backing protects drivers without altering frequency response or tonal character.

Key Features

• Dual JBL 2273G 12-inch low-frequency drivers with dual 3.0-inch voice coils
• Single JBL 196H-1 6-inch midrange driver with 1.5-inch voice coil
• JBL 2408H-1 1-inch neodymium compression driver with 1.5-inch voice coil
• Class-D amplification: 1100W continuous (peak 1600W)
• Maximum peak output: 138 dB SPL
• Frequency range: 48 Hz–17 kHz (−3 dB)
• Coverage pattern: 90° horizontal × 60° vertical
• IP54 environmental rating (IEC 60529)
• TCP/IP networking via Harman HControl protocol with dual etherCON ports
• Eight QuickLink M10 rigging suspension points
• 100–240 VAC, 50/60 Hz power input with convection cooling and on-demand fan
• Exterior-grade birch plywood with DuraFlex finish

The SRX922 combines compact form factor with studio-grade reliability and sufficient output for demanding recording and mixing sessions, backed by JBL's reputation for consistent acoustic performance.
