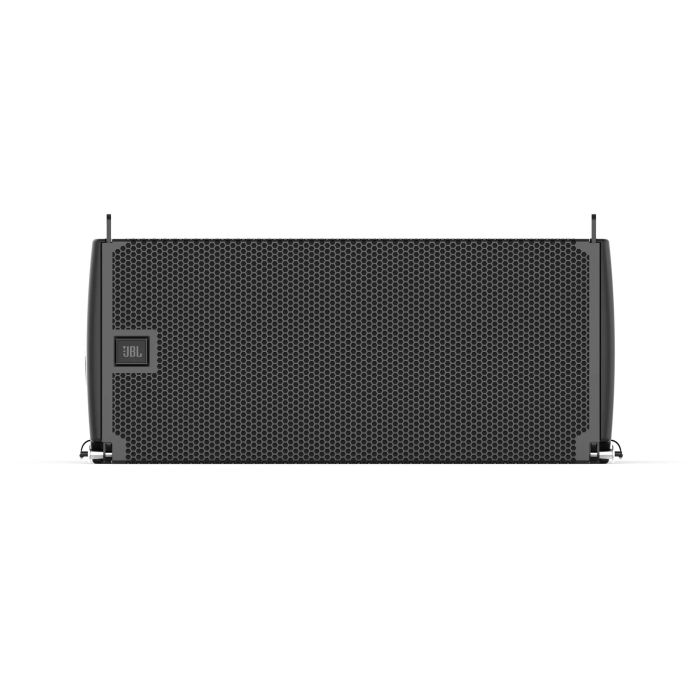

JBL SRX910LA Powered Line Array Speaker
Description
JBL SRX910LA Powered Line Array Speaker
The SRX910LA is a compact, high-output line array element engineered for studio recording environments and small-to-medium venue capture where consistent coverage and integrated amplification streamline your signal chain. Its trapezoidal profile and recessed handholds make it practical to position and relocate within your tracking or monitoring setup, while the integrated Class-D amplification eliminates the need for external processing. Built for recording engineers and producers who need professional results without compromise.
Audio Performance & Coverage
This two-way active speaker delivers 135 dB maximum SPL with 600 watts continuous power (400W LF, 200W HF), making it suitable for capturing high-impact sources and reinforcing mixes in mid-size control rooms and live tracking sessions. The 105-degree nominal coverage pattern and 53 Hz–19 kHz frequency range ensure balanced response across your listening field with minimal phase artifacts or reflective coloration.
Design & Build
The SRX910LA combines durable polypropylene construction with an aluminum baffle and internal plywood bracing, weighing only 59 lbs per unit while maintaining rigid acoustic performance. Its compact footprint (12.0 in H × 28.2 in W × 20.5 in D) and integrated recessed handholds streamline placement and repositioning in both stacked and floating array configurations within your studio or control room.
Key Features
- Two JBL 261G-1 10-inch LF drivers with dual 2.0-inch voice coils and neodymium Differential Drive
- One JBL 2432H-3 compression driver with 1.5-inch exit and 3-inch neodymium voice coil
- 600 watts continuous power (400W low-frequency, 200W high-frequency)
- Class-D amplifier design for efficient thermal performance and compact electronics
- 135 dB maximum SPL for high-impact reinforcement applications
- 24 adjustable DSP filters for precise tonal shaping and system tuning
- 2,000 ms of digital delay for time-aligning multiple arrays
- Dual Neutrik etherCON Ethernet ports for networking and remote control
- Polypropylene enclosure with aluminum baffle and plywood internal bracing
- Four integral recessed handholds for secure transport and rigging
- 26.7 kg (59 lbs) per unit for manageable load handling
- Frequency range of 53 Hz–19 kHz (–10 dB in array preset configuration)
The SRX910LA delivers the sonic authority and system flexibility that professional recording, mixing, and tracking environments demand.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The SRX910LA is a professional powered line array speaker designed for live reinforcement and installation, not studio recording or intimate sessions. Its 135 dB SPL output, dual 10-inch drivers, and compression driver deliver the high-impact, phase-aligned coverage needed for mid-to-large venue and touring applications. Studio-focused users should explore passive studio monitors or nearfield reference speakers instead.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Large Venue Sound Reinforcement
- ✓ Installation
Not the best pick for
- – Home Recording
- – Studio Sessions
- – Intimate Venues
Skill level: Professional
Frequently Asked Questions
What is a line array speaker, and why would I use it instead of conventional PA boxes?
A line array stacks acoustic elements vertically to control directional coverage and minimize reflections from walls and ceilings, making it ideal for touring and large venues where consistent sound across a wide audience area is critical. The SRX910LA's trapezoidal profile and 105-degree coverage pattern allow multiple units to be rigged or ground-stacked to create seamless, high-SPL reinforcement without dead zones.
Do I need external amplifiers or processors with the SRX910LA?
No. The SRX910LA is a powered speaker with an integrated 600-watt Class-D amplifier and 24 adjustable DSP filters onboard, so you connect audio sources directly and tune the system via Ethernet control without outboard gear.
How much does each unit weigh, and what are the rigging requirements?
Each SRX910LA weighs 59 lbs and measures 12 × 28.2 × 20.5 inches, with four integral recessed handholds designed for secure transport and rigging. Its compact footprint and lightweight design make it practical for touring applications, though proper rigging hardware and flying points are required for suspended array installations.
What frequency range and maximum SPL does the SRX910LA cover?
The SRX910LA covers 53 Hz–19 kHz (–10 dB in array preset) and delivers a maximum SPL of 135 dB, making it suitable for mid-to-large venue applications where high-impact reinforcement is needed.
Can I network and control multiple SRX910LA units remotely?
Yes. The SRX910LA features dual Neutrik etherCON Ethernet ports for networking and remote control, plus 2,000 ms of digital delay per unit for time-aligning multiple arrays across your venue.
