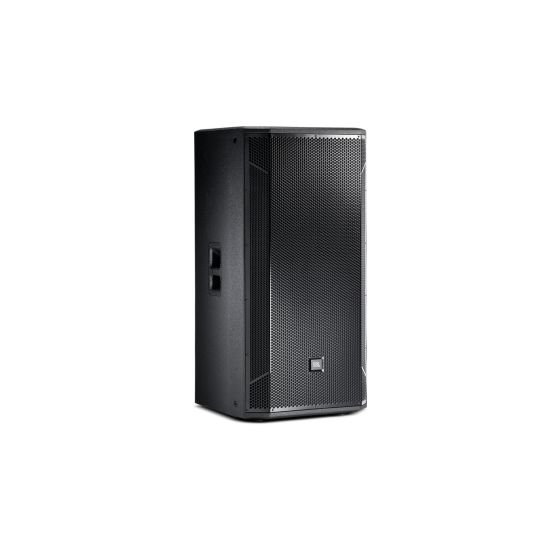

JBL SRX835 15" Three-Way Bass Reflex Passive System
Description
JBL SRX835 15" Three-Way Bass Reflex Passive System
The SRX835 delivers substantial output and consistent coverage from a compact, manageable platform. The rugged 18mm plywood enclosure with Obsidian Duraflex™ finish withstands the rigors of studio sessions, live tracking, and mobile recording setups, while ergonomically designed handles ease transport between rooms and locations. This three-way system excels as a reference or fill monitor in the studio, supporting tracking, overdubs, mixing cue sends, and live-band recording sessions.
Audio Performance & Coverage
Peak output reaches 137 dB SPL with continuous power handling of 800W and peak capacity of 3200W, covering a 60° × 40° pattern suitable for studio reference, drum isolation booth monitoring, or live room fill applications. The three-way design employs crossover frequencies at 330 Hz and 2.4 kHz, with JBL's 2432H neodymium compression driver delivering extended high-frequency clarity for tracking vocals and acoustic instruments, and the 2275F woofer providing controlled low-end extension down to 32 Hz for tight kick and bass definition in the control room.
Studio Integration & Flexibility
NL4 input and loop-thru connectors with selectable gain (+/-1 or +/-2 dB) streamline console and amplifier integration within multi-monitor setups. Twelve M10 suspension points and a 36mm pole socket allow suspended mounting above mix positions, floor placement near instruments, or stacking configurations—factory tunings are available for Crown ITech HD, XTi 2 amplifiers, and dbx VENU360 signal processors to optimize frequency response within your studio acoustic environment.
Key Features
- Passive 15", three-way bass-reflex system
- Maximum SPL: 137 dB
- Frequency range: 32 Hz – 20 kHz (–10 dB)
- Frequency response: 43 Hz – 17 kHz (–3 dB)
- Sensitivity: 95 dB at 1W/1m
- Power rating: 3200W Peak / 1600W Program / 800W Continuous at 8 Ohm nominal impedance
- Coverage pattern: 60° × 40°
- Drivers: 2275F woofer, 2107H midrange, 2432H neodymium compression driver
- Crossover frequencies: 330 Hz and 2.4 kHz
- Connectors: NL4 input and loop-thru with +/-1 or +/-2 dB selectable gain
- Operational modes: Passive and Bi-Amp
- Mounting: Twelve M10 suspension points, 36mm pole socket, ergonomic dual handles
- Enclosure: 18mm plywood with 14-gauge perforated steel grille and Obsidian Duraflex™ finish
- Dimensions: 18.74" L × 21.4" W × 38.74" H; Weight: 95 lbs
The SRX835 combines JBL's proven transducer engineering with flexible mounting options and proven amplifier integration for reliable monitoring and reference applications across tracking, mixing, and multitrack production work.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL SRX835 is a large-format passive three-way enclosure designed for sound reinforcement and live PA, not home recording or mixing. Its high-output capacity (137 dB SPL), extended low-end (32 Hz), and three-way crossover architecture (330 Hz, 2.4 kHz) define it as a stage reinforcement tool, not a studio reference or tracking instrument. Pass on this if your work is mixing and recording; it belongs in touring rigs and venue installations.
Who This Is For
Great for
- ✓ Live Performance
- ✓ DJ Applications
- ✓ Sound Reinforcement
- ✓ Touring
Not the best pick for
- – Home Practice
- – Studio Recording
- – Bedroom Use
Frequently Asked Questions
Is the SRX835 suitable for home studio use or bedroom practice?
No. This is a live-sound reinforcement and touring PA system, not a studio tool. Its high output capacity and coverage pattern are optimized for venue fill and stage use; it is not designed for recording, mixing, or nearfield reference work.
What amplifier brands work well with the SRX835?
The SRX835 ships with factory tunings for Crown ITech HD, Crown XTI 2, and dbx VENU360 processors to ensure optimized frequency response. It accepts passive amplification via NL4 connectors and also supports bi-amp operation for greater control.
Can the SRX835 be flown or stacked, and does it work on a standard PA pole?
Yes. Twelve M10 suspension points allow flying rigs, and a 36mm pole socket accommodates tripod stands. The speaker can also be stacked on subwoofers or placed on the floor, making it flexible for main, fill, and monitor roles.
How much does it weigh, and is it portable for touring?
The SRX835 weighs 95 lbs with ergonomic dual handles designed for non-fatiguing grip during setup and breakdown. Its rugged 18mm plywood enclosure with Obsidian Duraflex finish is built to survive repeated touring and rental use.
What is the frequency response and coverage pattern?
Frequency response is 43 Hz–17 kHz (–3 dB) with a 32 Hz low-end extension (–10 dB). Coverage pattern is 60° × 40°, suitable for main, fill, or stage monitoring applications in venues and live events.
