What's included with the SRX812P?

The system ships as a complete self-powered unit with built-in 2000W Crown amplification, onboard DSP with 20 PEQs and 2 seconds of delay, M10 suspension points, 35mm pole cup feet, an integrated LCD screen, wired Ethercon network control, and support for third-party wireless router integration. Microphone cables and a router are not included.

Can I use the SRX812P in a touring environment?

Yes—the SRX812P is specifically designed for touring applications. It includes V5 JBL Tunings for compatibility with flagship Vertec and VTX systems, rugged ergonomic handles for non-fatiguing transport, and the reliability to perform night after night. Maximum SPL is 135 dB with massive headroom and low distortion.

How do I control and configure the SRX812P?

Full HiQnet Network Integration lets you configure the system via wired Ethercon connection or through iOS and Android apps (HiQnet Motion Control, Audio Architect, and standalone applications). An onboard 400MHz Sharc DSP powers 20 parametric EQs, delay, signal generators, input mixing, and 50 user presets accessible via the LCD screen.

How much does the SRX812P weigh, and what are its rigging options?

The system weighs 58 lb (26.4 kg) and measures 25.11 x 16.31 x 16.87 inches. It features M10 suspension points for flying, indexed feet, and a standard 35mm pole cup, supporting flexible deployment as a main, fill, monitor, or subwoofer companion.

What frequency range and SPL does the SRX812P deliver?

Frequency response is 48 Hz–20 kHz (±3 dB) with a –10 dB range of 40 Hz–21 kHz, covering deep bass to bright highs. Maximum SPL reaches 135 dB in both normal and boost modes, powered by a 2000W Class D amplifier with a 103dB signal-to-noise ratio for exceptional clarity and headroom.

Do I pay sales tax on this order?

We collect sales tax only on orders shipped to California. Orders shipped to any other US state are charged $0 sales tax at checkout when you buy direct from our website. On this item that is roughly $120 less out the door than the same listed price at a national retailer or on a marketplace. Marketplaces such as eBay, Reverb and Amazon collect sales tax in nearly every state as marketplace facilitators no matter who the seller is, so the same item at the same price costs less bought direct. Free US shipping and 30-day returns are included. Some states ask buyers to self-report use tax on out-of-state purchases.

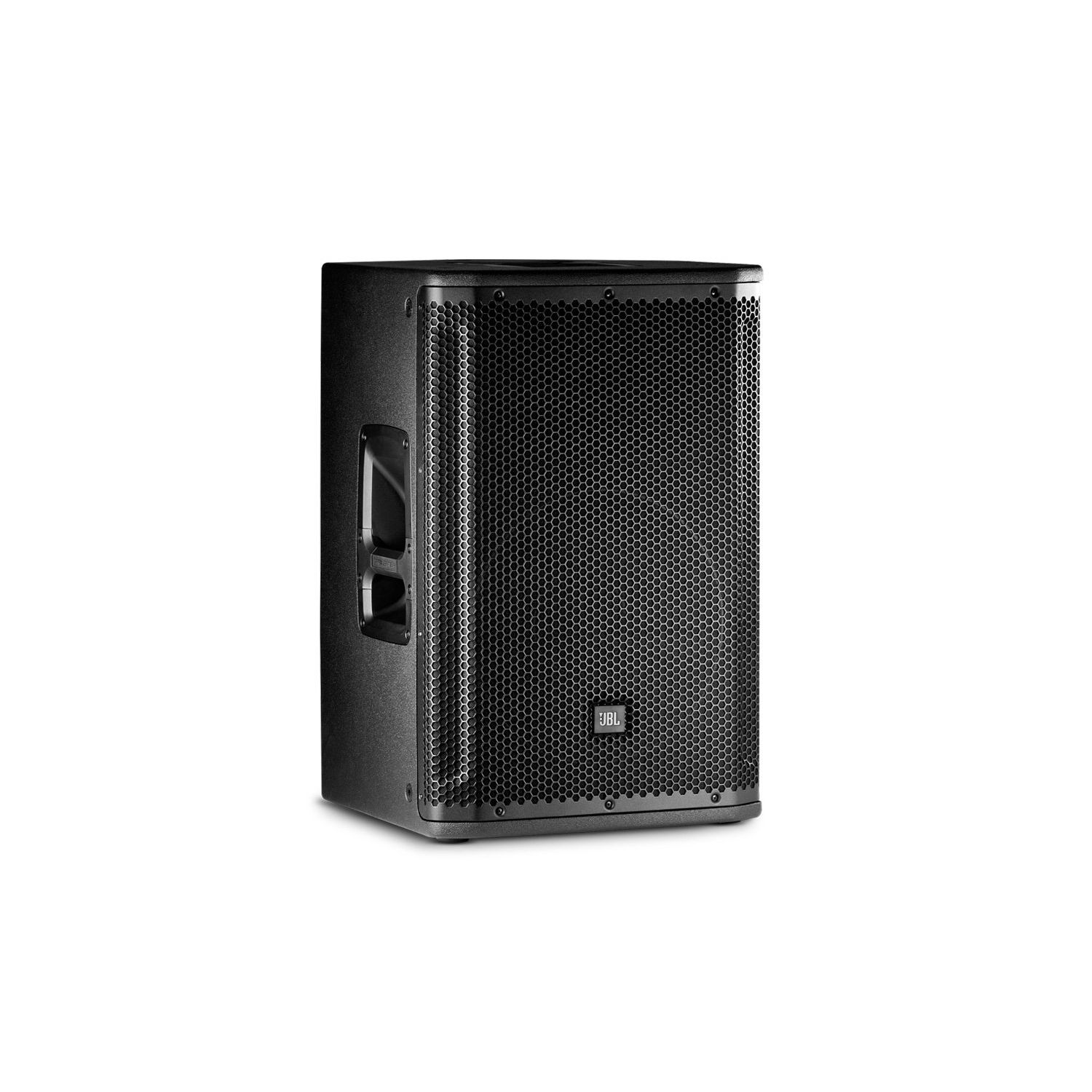

JBL SRX812P 12" Two-Way Bass Reflex Self-Powered System

JBL SRX812P 12" Two-Way Bass Reflex Self-Powered System

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way,SRX812P features legendary JBL Drivers,proprietary 2,000 Watt Crown amplification,Crown Front-End DriveCore Technology,premium JBL user-configurable DSP,V5 Tunings compatible with Vertec and VTX touring systems,and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design,the SRX800 Series meets the needs of touring houses,installations,and the most demanding live sound applications ensuring they can deploy a no-compromise,all-in-one solution featuring legendary JBL sound and performance,a wide array of configurability,and compatibility with JBL’s flagship touring systems.

Features:

Purposeful Design: Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy,non-fatiguing grip for streamlined handling. M10 suspension points,indexed feet,and pole/tripod mounts support a wide,flexible array of configurations.
JBL Premium Transducers: JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight,increased power handling,exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class,delivering very high power levels and smooth,crystal clear sound.
Drivecore Amplification By Crown: Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating,the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio,the SRX800 Series is capable of massive sound pressure levels with exceptional headroom,very low distortion and absolute clarity throughout its frequency range.
Full User Configurable DSP
Network Control: With full HiQnet Network Integration,configuring an SRX800 system is dramatically simplified,saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect,HiQnet Motion ControlTM iOS app,and standalone applications for iOS and Android.
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points
Standard 35mm Pole Cup
Feet for Monitor Angle

Unprecedented Control A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s,2 seconds of delay,signal generators,Input mixing,amplifier monitoring,and 50 User Presets. In addition,the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Condition	New
Country of Manufacture	China
