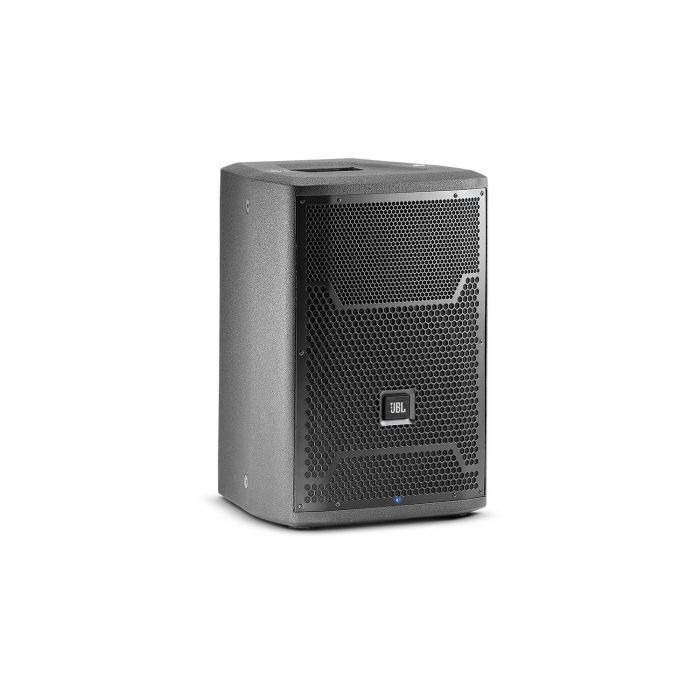

JBL PRX710 10" Two-Way Multipurpose Self-Powered Sound Reinforcement System
Out of stock
- SKU
- PRX710
$749.00
.
No sales tax on orders shipped outside California
Most national retailers and online marketplaces now collect sales tax in nearly every state. Shipping outside California keeps roughly 6–10% in your pocket.
Learn more
Description
JBL PRX710 10" Two-Way Multipurpose Self-Powered Sound Reinforcement System
Specifications:
PRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size.
Features:- 133 dB peak SPL
- 10" low-frequency driver for low-distortion and higher SPL
- 1.5" diameter next generation JBL neodymium compression driver
- JBL designed waveguide for accurate coverage
- Efficient Class-D amplifier technology
- Normal and Boost user selectable EQ pre
- DSP input section,crossover,dynamic limiting,component optimization,selectable system EQ.
- Line level and direct microphone input capability
- Professional XLR-1/4" combination inputs,RCA inputs,and XLR loop-through
- Integrated 36 mm pole mount socket
- Integrated handle with injection molded backing cup for easy transport
- Integrated M10 suspension points for easy setup
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
- Cloth backed,dent-resistant 16 gauge steel grilles
- The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer,offering a high performance self-powered sub/sat system.
- The PRX710 is comprised of a 10" woofer,a 2408H-2,37.5 mm (1.5 in) annular polymer diaphragm,neodymium compression driver mounted to a 100° by 60° horn,all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section,providing user selectable system EQ,protection,input sensitivity selection,cross-over functionality,dynamic limiting and discrete component optimization.
- All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm,strong,light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
- The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility,making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
Specifications:
- Power Rating: 1500 W
- AC Power Input: 100V - 240V~ 50/60 Hz
- Frequency Range (-10 dB): Normal: 50 Hz - 19.6 kHz / Boost: 42.9 Hz - 20 kHz
- Frequency Response (±3 dB): Normal: 63.5 Hz – 18.5kHz / Boost: 53 Hz – 18.6kHz
- Coverage Pattern: 100° x 60° nominal
- Directivity Index (DI): 9 dB
- Directivity Factor (Q): 8
- Crossover Frequency: 1.9 kHz
- Maximum SPL: 133 dB
- Signal indicators:
- Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
- Signal: Green LED indicates signal present
- Power/Standby: Blue indicates system has power and ready to pass audio,Red indicates system has power but is in a power saving mode and will not pass audio.
- Dynamic Control (Input): dbx Type IV™ limiter circuit
- Input Impedance: 20K Ohms (balanced),10K Ohms (Unbalanced)
- LF Driver: 1 x JBL M110-4 250mm (10 in) woofer
- HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm,neodymium compression driver
- Enclosure: Rectangular,18 mm,plywood
- Suspension/Mounting: single 36 mm pole socket,8 x M10 Suspension Points,1 x M10 pull back point
- Transport: 1 x integrated handle with injection molded backing cup
- Finish: Obsidian DuraFlex™ finish
- Grille: Powder coated,Obsidian,16 gauge perforated steel with acoustical transparent black cloth backing.
- Input Connectors: 2 x Balanced XLR / 1/4 inch input,2 x unbalanced RCA input
- Output Connectors: 1 male XLR balanced output.
- Dimensions (H x W x D): 498.7 mm x 335.6 mm x 322.3 mm (19.63 in x 13.21 in x 12.69 in)
- Net Weight: 16.4 kg (36 lb)
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
