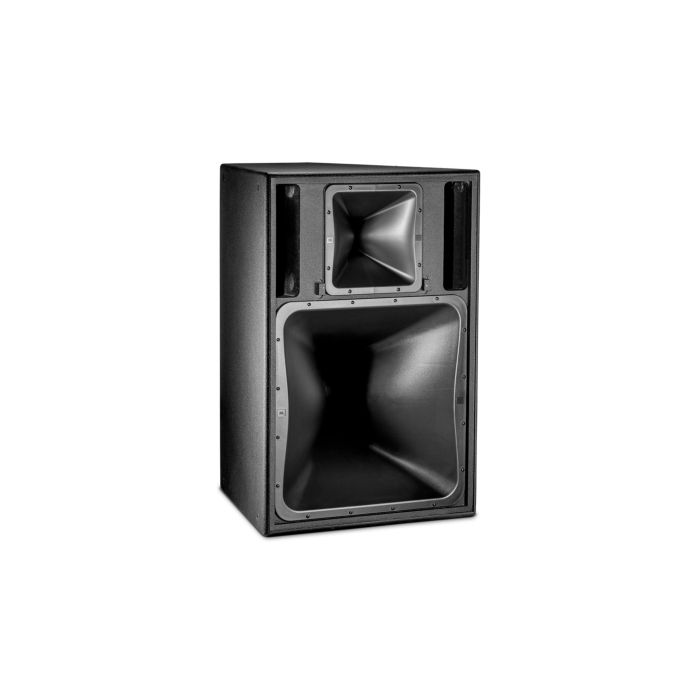

JBL PD6322/95 Dual 12" three-way full-range loudspeaker
Description
JBL PD6322/95 Dual 12" Three-Way Full-Range Loudspeaker
The PD6322/95 is a professional full-range system engineered for studio monitoring, live tracking, and venue reinforcement. Its dual 12" low-frequency design paired with mid and high-frequency compression drivers creates a cohesive full-range platform capable of handling demanding recording and performance applications while maintaining clarity across the mix.
Acoustic Performance
Extended low-frequency response down to 40 Hz provides solid bass foundation for accurate monitoring and speech intelligibility, while the 90x50° coverage pattern via dual PT Progressive Transition waveguides ensures even tonal distribution across the control room or venue. The cabinet operates in either tri-amp or bi-amp (passive mid-high) configuration, offering flexibility in signal routing and amplifier integration for your recording setup.
Build & Handling
At 183 lbs, the PD6322/95 is substantial but manageable for positioning in studio environments and live rigs. Its 991 x 673 x 706 mm footprint accommodates standard equipment racks and mounting configurations, while the rotatable waveguides allow both vertical and horizontal speaker orientations to adapt to room acoustics and spatial constraints.
Key Features
- Two JBL 2206H 12" Vented Gap Cooled (VGC) low-frequency transducers with 4" voice coils
- CMCD-82H 8" cone midrange compression driver with dual 3" voice coils
- 2432H 1.5" exit compression driver with 3" voice coil for high-frequency reproduction
- Large format neodymium high-frequency driver
- Dual PT Progressive Transition waveguides (90x50° coverage, rotatable)
- 1200W power handling capacity
- Extended low-frequency response to 40 Hz
- Tri-amp or bi-amp (passive mid-high) operation
- Mil-Std 810 environmental rating
- IP-x3 per IEC529 weather resistance
- Dimensions: 991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in) in vertical orientation
- Weight: 183 lbs
The PD6322/95 combines high-output dual 12" woofers, multi-driver midrange and tweeter architecture, and robust weatherproofing into a versatile platform that performs equally well in studio monitoring, tracking sessions, and live sound applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL PD6322/95 is a professional full-range loudspeaker designed primarily for live sound and venue installation rather than studio recording or monitoring applications. Its extended low-end response, multi-driver architecture, and large-format design make it optimized for high-output live reinforcement and touring environments. Not recommended for home studio recording, mixing, or bedroom monitoring use.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Festival Sound
- ✓ Venue Installation
Not the best pick for
- – Home Recording
- – Practice
- – Bedroom Monitoring
Skill level: Professional
Frequently Asked Questions
What is the coverage pattern and how even is the frequency response across the listening area?
The PD6322/95 delivers a 90x50° coverage pattern via dual PT Progressive Transition waveguides, engineered to provide even tonal distribution across the entire listening area. The rotatable waveguides allow you to orient the speaker vertically or horizontally to match venue architecture and optimize consistent sound coverage.
Can this speaker be used in both touring and permanent installation setups?
Yes. The PD6322/95 operates in either tri-amp or bi-amp (passive mid-high) configuration, offering flexibility in system design. At 183 lbs with a 991 x 673 x 706 mm footprint, it fits standard touring racks and venue mounts, and it carries an IP-x3 weather rating and Mil-Std 810 environmental rating for durability in both mobile and fixed applications.
What is the power handling and low-frequency capability?
The speaker handles 1200 W and extends low-frequency response down to 40 Hz, delivered by dual JBL 2206H 12" Vented Gap Cooled woofers with 4" voice coils. This extended bass foundation provides a solid platform for music and speech across demanding live and venue applications.
What drivers make up the three-way design?
The three-way architecture includes two 12" woofers, a CMCD-82H 8" cone midrange compression driver with dual 3" voice coils, and a 2432H 1.5" exit compression driver with a 3" voice coil and large-format neodymium high-frequency driver for cohesive full-range clarity.
Is this suitable for home recording or studio monitoring?
No. The PD6322/95 is purpose-built for live performance, touring, festivals, and venue installation. It is not designed for home recording, practice, or bedroom monitoring applications.
