JBL JBL-SLP12/T-WH Sleek Low-Profile On-Wall Spkr, 3", Wht, 1 pc

JBL JBL-SLP12/T-WH Sleek Low-Profile On-Wall Speaker, 3", White

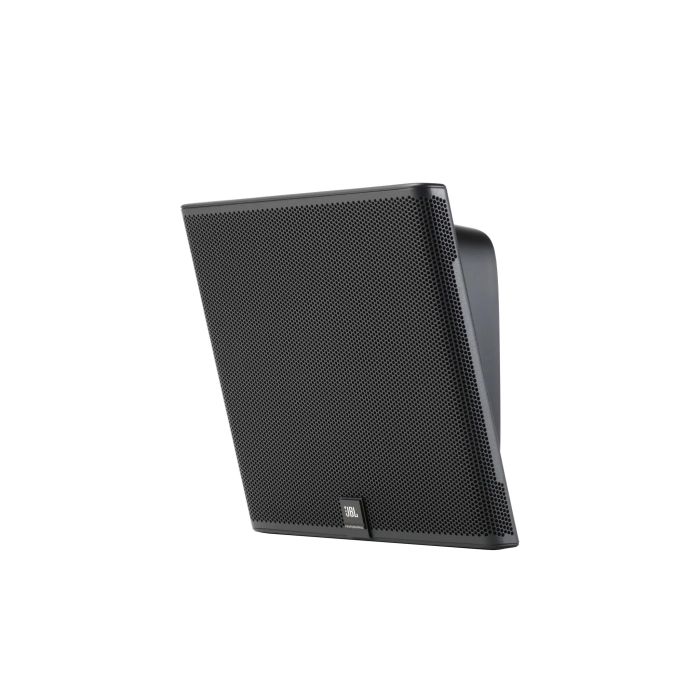

The JBL-SLP12/T-WH is a compact, wall-mounted speaker engineered for studio monitoring and control room applications where space constraints demand a minimal footprint. Its ultra-shallow profile—less than 4 inches deep—mounts flush against walls with a 15° down-tilt, delivering clean audio reference without taking up valuable desk or rack real estate. Built with sealed polycarbonate construction and IP44 water ingress protection, this speaker provides stable performance across climate-controlled studio environments and semi-exposed installations with equal reliability.

Audio Performance & Monitoring Coverage

The 75 mm full-range transducer produces a maximum SPL of 106 dB peak (100 dB continuous) at 1 meter, with sensitivity rated at 84 dB across the audible spectrum. Frequency response spans 110 Hz–15 kHz (±3 dB), delivering clear vocal intelligibility and balanced music reproduction across 130° horizontal and 130° vertical coverage angles—ideal for distributed mixing console setups and multi-station recording environments without phase anomalies or coverage dead spots.

Integration & Studio Connectivity

The 15-watt multi-tap transformer integrates seamlessly into 70V and 100V distributed speaker systems while remaining switchable for direct 8-ohm operation in smaller studios and project spaces. A 4-pin Euroblock connector accepts wire up to 14-gauge, and the included slide-in wall bracket and rain cover provide flexible mounting and protection without additional hardware purchases, streamlining session setup and teardown.

Key Features

• 75 mm (3 in) full-range transducer
• 80W continuous program power rating; 40W (160W peak) continuous pink noise specification
• Sensitivity: 84 dB (80 Hz–20 kHz) half-space mounted on wall
• Maximum SPL: 106 dB peak; 100 dB continuous at 1 meter
• Frequency response ±3 dB: 110 Hz–15 kHz
• Nominal coverage: 130° horizontal × 130° vertical with 15° down-tilt
• 15-watt multi-tap transformer for 70V/100V systems; switchable 8-ohm direct operation
• 4-pin Euroblock connector accepts wire up to 14-gauge
• Less than 4 inches deep; designed for flush wall mounting
• Polycarbonate/ABS sealed enclosure with UL94V-0 flammability rating
• Powder-coated zinc-plated grille protects driver
• IP44 water ingress protection rating
• Includes slide-in wall bracket and rain cover

The JBL-SLP12/T-WH delivers transparent studio-grade monitoring in a form factor that integrates invisibly into control room architecture while maintaining full system flexibility for fixed installations, distributed networks, and mobile recording workflows.
