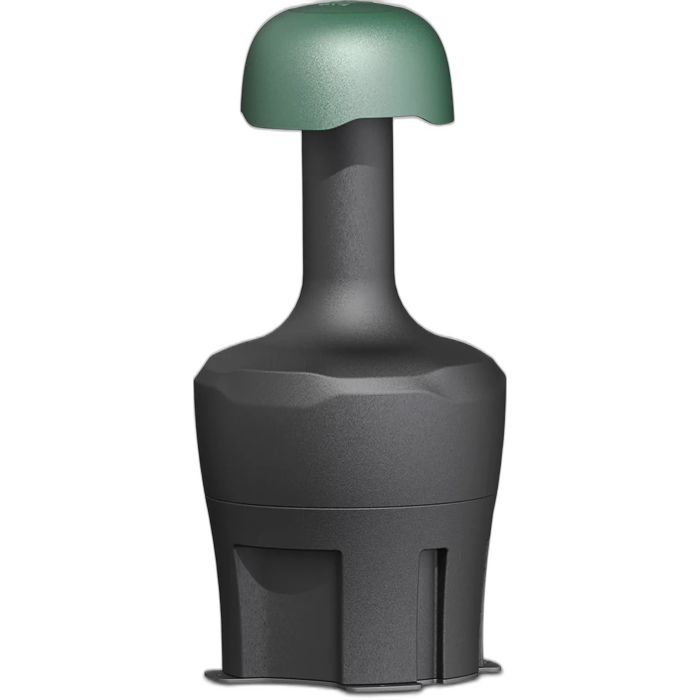

JBL JBL-GSB12-GN 12" In-Ground Subwoofer, Grn, 1 pc
Description
JBL JBL-GSB12-GN 12" In-Ground Subwoofer
The JBL-GSB12-GN is a specialized landscape subwoofer engineered for outdoor installations requiring extended low-frequency reach without visual intrusion. Its ultra-low-profile design installs flush with or below ground level, leaving only the audio port visible—ideal for permanent outdoor venues where consistent subwoofer performance must integrate seamlessly with the environment.
Installation & Design
This subwoofer's compact form factor minimizes excavation requirements and integrates into hardscape or lawn environments with minimal footprint. The IP-66 weather rating ensures dust and water resistance, while the durable polypropylene injection cone with thermoplastic vulcanizate surround resists UV degradation and moisture ingress across extended outdoor deployments.
Low-End Capture & Tracking
The 305mm (12") polypropylene driver with a 50mm voice coil extends low-frequency content down to 30 Hz, while the 200-watt transformer supports both 70V/100V distributed systems and low-impedance direct operation for flexible system integration. Peak output reaches 118 dB with continuous ratings of 111 dB (2 hrs), delivering the subwoofer extension needed for full-range outdoor recording and monitoring applications.
Key Features
- 12-inch (305mm) polypropylene driver with 50mm voice coil on Kapton former
- Frequency response extends to 30 Hz for true subwoofer extension
- 118 dB peak SPL / 111 dB continuous SPL (2 hr) @ 1m
- 900W continuous program power rating (2 hrs) / 1800W peak
- 85.5 dB sensitivity (averaged 40 Hz – 105 Hz)
- 200-watt transformer for 70V/100V distributed systems or low-impedance direct operation
- IP-66 weather rating—fully dust protected and water resistant
- Ultra-low-profile in-ground installation design
- Polypropylene cone with thermoplastic vulcanizate surround
- Bare-wire input connectivity
The JBL-GSB12-GN combines discreet installation with authoritative subwoofer performance, making it the technical choice for outdoor recording and monitoring systems that demand both architectural integration and uncolored low-frequency output authority.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL-GSB12-GN is a specialized in-ground subwoofer designed for fixed outdoor and permanent venue installations, not a studio monitoring tool. Its IP-66 weather rating, polypropylene construction, and distributed-system transformer make it purpose-built for landscape audio and commercial outdoor systems, where it delivers 30 Hz extension and 111 dB continuous output for years without degradation.
Who This Is For
Great for
- ✓ outdoor events
- ✓ landscape audio installations
- ✓ permanent venue systems
- ✓ distributed 70V/100V systems
Not the best pick for
- – portable PA
- – indoor studio monitoring
- – intimate venues
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What makes this subwoofer different from a standard portable or studio sub?
The JBL-GSB12-GN is purpose-built for permanent outdoor and landscape installations with an ultra-low-profile in-ground design that sits flush with or below ground level. Its IP-66 weather rating, UV-resistant polypropylene cone, and thermoplastic vulcanizate surround are engineered for years of outdoor exposure, making it unsuitable for indoor studio monitoring or portable PA use.
Can this work with my existing 70V/100V distributed system?
Yes. The 200-watt transformer supports both 70V/100V distributed systems and low-impedance direct operation, making it versatile for permanent venue and landscape audio installations that use either configuration.
What are the output levels and frequency range?
The subwoofer delivers 118 dB peak SPL and 111 dB continuous SPL (2 hrs) with a 12-inch polypropylene driver extending down to 30 Hz. Sensitivity is rated at 85.5 dB (40 Hz–105 Hz average), and it handles 900W continuous program power or 1800W peak.
How is this installed, and what does it require?
The in-ground design requires minimal excavation and installs flush with or below ground level, with only the audio port visible. Bare-wire connectivity is provided, and the IP-66 weather rating ensures it remains fully dust protected and water resistant in outdoor environments.
What kind of venues or installations is this best suited for?
The JBL-GSB12-GN is engineered for permanent outdoor events, landscape audio installations, distributed venue systems, and hardscape or lawn environments where aesthetic integration and long-term weather durability are critical. It is not designed for portable PA, indoor studio monitoring, or intimate venues.
